SKU # 1001093995
Model # SWJP125
USE AND CARE GUIDE

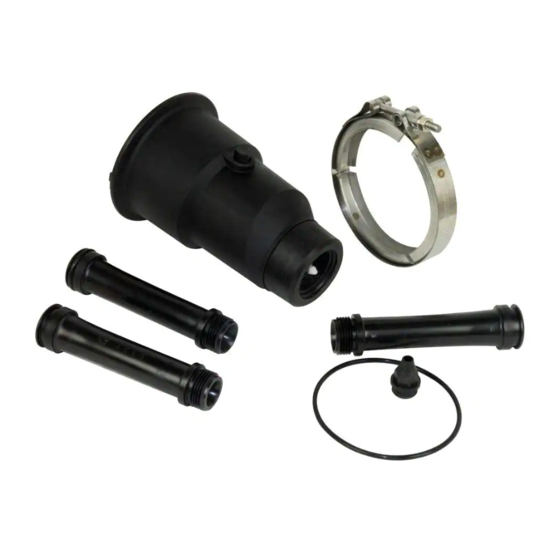

SHALLOW WELL JET KIT
Questions, problems, missing parts? Before returning to the store call
Everbilt Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-844-241-5521
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Everbilt through the purchase of this jet package. We
strive to continually create quality products designed to enhance your home. Visit us online to see our full line of
products available for your home improvement needs. Thank you for choosing Everbilt!
Advertisement
Related Manuals for HOMEDEPOT Everbilt SWJP125
Summary of Contents for HOMEDEPOT Everbilt SWJP125
- Page 1 Everbilt Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-844-241-5521 HOMEDEPOT.COM THANK YOU We appreciate the trust and confidence you have placed in Everbilt through the purchase of this jet package. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of...
-
Page 2: Safety Information
Table of Contents Table of Contents.........2 Pre-Installation ........2 Safety Information ........ 2 Assembly ..........3 Safety Information Follow the safety instructions in your pump owner's manual. BE SURE the pump is turned off and all pressure is released before attempting to install the shallow well ejector. Pre-Installation APPLICATION This shallow well ejector package (Model SW JP125) includes a shallow well ejector, check valve, and an... - Page 3 4.Place the O-ring (C) in the groove in the venturi (D) and install the venturi (D) in the ejector body (H).The venturi threads into the first set of threads in the ejector discharge port (it threads in over the nozzle).The end of the venturi will extend out of the port when it is installed. HOMEDEPOT.COM Please contact 1-844-241-5521 for further assistance.
- Page 4 Assembly(continued) 5.Put the O ring (A) to the front of the pump body. Insert the venturi (D) into the upper pump port. Ensure the tabs and slots align. 6.Alternately tighten the clamp screw and tap the clamp (B) with a mallet to seat the O-ring (A). 7.Install the pipe, foot valve and well seal.
- Page 5 If they leak, remove the pipes and find the leak. Remake the leaking joint with teflon tape or retighten the clamp. Repeat the installation and the fill-check until the pipes do not leak. 9.See your pump owner’s manual for operation instructions. For warranty registration please go to www.gppumpsus.com HOMEDEPOT.COM Please contact 1-844-241-5521 for further assistance.
- Page 6 Questions, problems, missing parts? Before returning to the store call Everbilt Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-844-241-5521 HOMEDEPOT.COM...
- Page 7 Cliente de 8:00 AM a 6:00 pm EST de Lunes a Viernes. 1-844-241-5521 HOMEDEPOT.COM GRACIAS! Nosotros agradecemos la confianza que Usted ha puesto en Everbilt por la compra de esta paquete de surtidor. Nos esforzamos continuamente para crear productos de calidad diseñados para mejorar su hogar. Visítenos en nuestra página de internet para ver la línea completa de productos disponibles para las mejoras de su hogar.
-
Page 8: Información De Seguridad
Table Des matières Table Des matières ......8 Pre-Montaje ......... 8 Información De Seguridad ....8 Asamblea ..........9 Información De Seguridad Observe las instrucciones sobre seguridad contenidas en el Manual del Propietario de su bomba. Antes de instalar el eyector para pozo profundo. - Page 9 (se enrosca por encima de la boquilla). El extremo del venturi saldrá fuera de la toma cuando se haya instalado. HOMEDEPOT.COM Por favor, llame al 1-844-241-5521 para extra asistencia.
- Page 10 Asamblea (continúa) 5. Pon el anillo de o (A) a la parte delantera del cuerpo de la bomba, insertar Venture (D) en Upper Pump puerto; asegúrese de alinear las pestañas y ranuras. 6. Instale la abrazadera y apriétela un poco; alternativamente apriete el tornillo de la abrazadera y golpee suavemente la abrazadera con un mazo para asentar la junta tórica 7.
- Page 11 9. Consulte el manual del propietario de su bomba para obtener las instrucciones y operación. Para el registro de garantía por favor vaya a www.gppumpsus.com HOMEDEPOT.COM Por favor, llame al 1-844-241-5521 para extra asistencia.
- Page 12 ?Preguntas, problemas, piezas que faltan? Antes de devolverla a la tienda, llame a Servicio al Cliente de 8:00 AM a 6:00 pm EST de Lunes a Viernes. 1-844-241-5521 HOMEDEPOT.COM...
