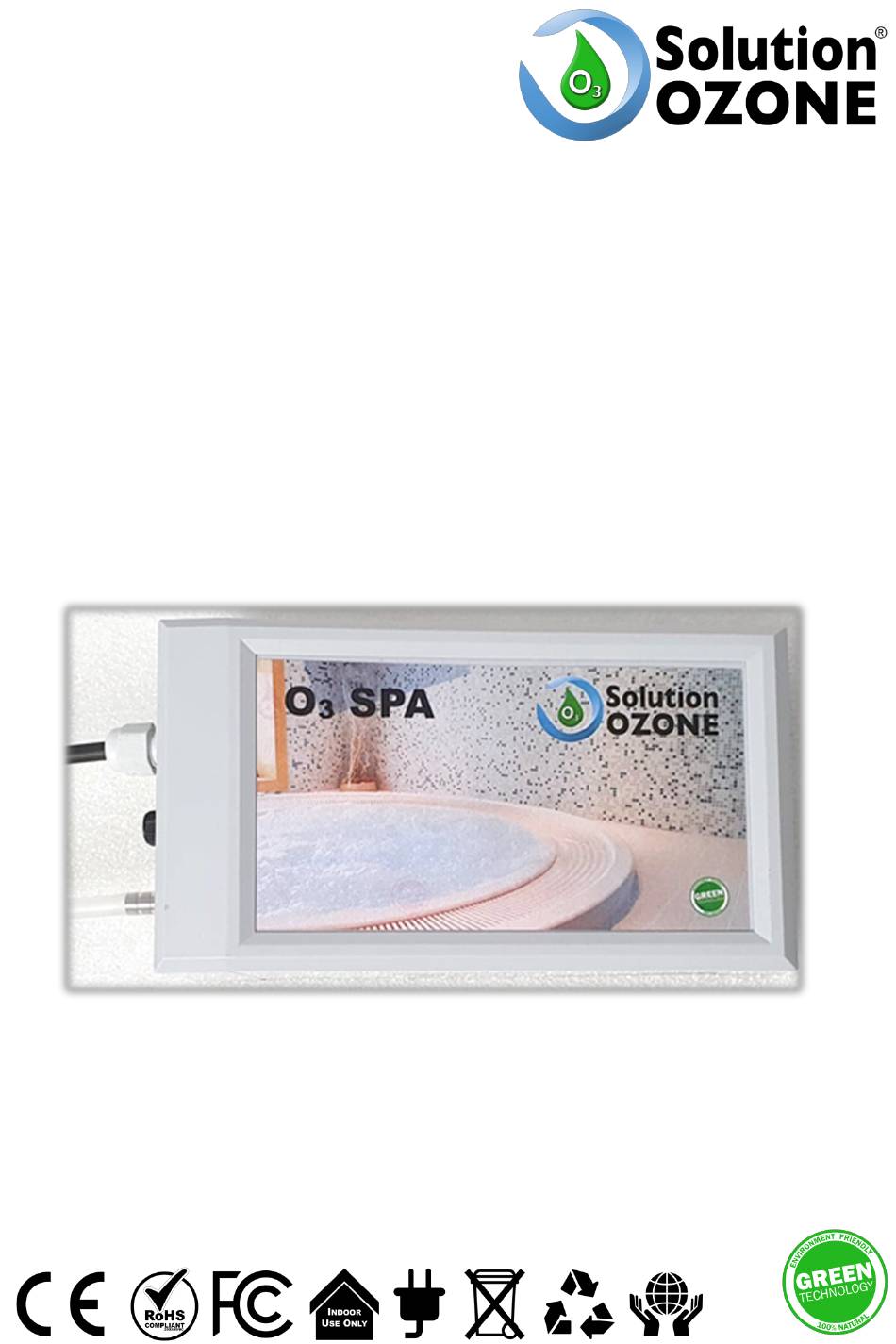

- Page 1 SSO-O3-SPA01 SPA O System User Manual Ver: 2.01 Certified by:...
- Page 2 SSO-O3-SPA01 - User Manual (EN) Ozone 1 - Ozone is an extremely powerful oxidizing agent, capable of effectively oxidizing bacteria, fungi, microorganisms and viruses. 2 - Ozone is 1,5 times stronger than chlorine and 3 125 times faster in inactivating bacteria and viruses.
- Page 3 (rain, sun, ...). Mount the SSO-O3-SPA01 so that is inaccessible to anyone in the SPA. 1.4 - The SSO-O3-SPA01 must be installed horizontally, with the front image on the right position and the Ozone Outlet turned to the left/down side (see image 2). Use both mounting flanges and install the equipment as high as possible with the protected equipment area.
- Page 4 Note: For circulation systems different from the one shown in image 2, contact your SPA supplier for proper plug configuration. 1.6 - Electrical installation (see image 3): 1.6.1 - Verify there is no power to the SPA and connect the SSO-O3-SPA01 power cord into the mating connector(s) on the SPA Control Box. WARNING: To reduce the risk of electrical shock, if the power cord is damaged, replace the entire unit immediately.
- Page 5 Image 3 - Electrical Diagram WARNING: The Ozone Generator works at high voltage and should only be opened by Solution Ozone® Technicians. Before carrying out any work on the Pool Circulation System, make sure that the electrical supply to the Ozone Generator is turned off.
- Page 6 Mixing System Perform the O Generator Checkout by Solution Ozone® Technicians Table 2 - Maintenance Plan 2.2 - Regularly inspect ozone supply tubing for cracks or wear. Make sure that is no water present between the check valve and ozone generator - this indicates check valve failure. In this case, replace the ozone check valve immediately.
- Page 7 SSO-O3-SPA01 - User Manual (EN) 3.6 - Keep the equipment out of the reach of children. 3.7 - Do not cover the equipment during its operation. 3.8 - Do not insert any objects through the ozone outlet grilles, as this may cause equipment malfunctions or short-circuits.
- Page 8 Warranty Card Full name Phone Number Address Invoice nr. Purchase Date Maintenance Record Date of Maintenance Analysis Result Clerk Signature www.solutionozone.com info@solutionozone.com...
