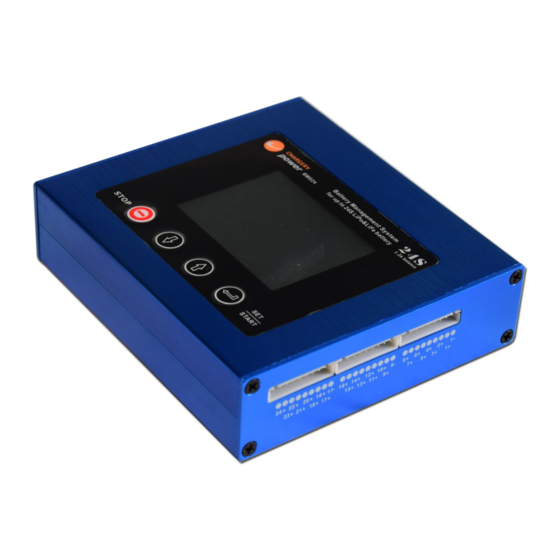

BMS24
for 2S-24S LiPo & LiFe
Low power consumption
High accuracy
2.8" TFT LCD display
Programmable
T
hanks for your purchasing the BMS24 for your vehicle.
R
ead the ENTIRE instruction manual to become familiar with the features/functions of the device
before operating.
F
eel free to send an email to
jasonwang3a@163.com
or call at 86 755 2643 6165 should you have
any questions and suggestions.
Jason Wang
Advertisement
Table of Contents
Summary of Contents for Chargery Power BMS24
- Page 1 Low power consumption High accuracy 2.8” TFT LCD display Programmable hanks for your purchasing the BMS24 for your vehicle. ead the ENTIRE instruction manual to become familiar with the features/functions of the device before operating. eel free to send an email to jasonwang3a@163.com...
-
Page 2: Safety Notes
LiPo & LiFe Battery Management System BMS24 V1.06 Chargery BMS24 is designed special for LiPo & LiFe battery pack applied to storage energy system and Electrical Vehicle including E-Motorcycle, E-Scooter and so on. The unit can measure or detect the battery voltage, cell voltage, charge &... -
Page 3: Protection Functions
14. Supports upgrading the firmware program by USB port. 15. BMS24 provide users the maximal flexibility, key parameters can be programmed. 16. BMS24 display battery SOC or called battery gauge similar with car dashboard. Cell count, battery pack voltage and battery gauge (%) is displayed simultaneously. -
Page 4: Program Setup
BMS24 V1.06 Alternate External or battery pack to power BMS24. If select all cells power the unit, the battery pack must be 8S to 24S LiFe or LiPo. But if power by external power supply, BMS24 Power Selector can do 2S-24S LiPo or LiFe battery pack. The main input supply... - Page 5 DOWN change the value. Press SET/START button shortly confirm the change. After finish all setup, press SET/START for 3 seconds quit the setup menu. When quit setup mode, BMS24 Will record all parameters till next change. NOTE: Please keep the default setup unless for special purpose.
- Page 6 BMS24, but when cell voltage and temperature trigger the absolute maximum or minimum ratings, the BMS24 will force to cut off charge or discharge to make sure the battery safety, and prevent battery pack from explode or fire.
-
Page 7: Specifications
Balancer BMS24 can resume cell voltage balanced status at the shortest time, it is based on 1.2A balance current per cell, balance accuracy is 8mV. Balance can be operated in charge or in discharge or in both, the feature can be setup www.chargery.com... - Page 8 Please use correct current shunt according to actual maximal charge and discharge current, singe shunt is enough for BMS24, 75mV or less shunt is suggested. Chargery can provide all kinds of shunt. we calibrated cell voltage and current before delivery.
-
Page 9: Current Calibration
PC. Click the Update button, then the update progress bar will appear, update complete will be displayed on PC. BMS24 also display the progress bar simultaneously and enter into cell count setup interface automatically after update is completed.. -
Page 10: Typical Connection
LiPo & LiFe Battery Management System BMS24 V1.06 Typical Connection There are 3 sockets connecting to battery pack, socket 1 is for 2S-8S, socket 2 for 9S~16S, and socket 3 for 17-24S battery. 6S battery connect to the socket 1 directly, but external power supply is essential, it is as following. - Page 11 LiPo & LiFe Battery Management System BMS24 V1.06 Accessory USB data cable Battery connection XHR-9PIN, 600mm Temperature sensor, 600mm Relay controller wire 600mm Warning LED, 300mm Warning Beeper, 300mm Current sensor wire, 600mm www.chargery.com page 11 total 14...
- Page 12 Before connect the relay to charge or discharge controller, please confirm the coil of relay voltage. the BMS controller will output Vin to power the coil, if the BMS24 will be powered by external power supply, Vin is external power supply output voltage, if powered by battery pack, Vin will be battery pack voltage.
-
Page 13: Related Parts
LiPo & LiFe Battery Management System BMS24 V1.06 Related parts The following device is related with BMS24 MODEL DESCRIPTION COMMENTS BMS16 For 2S-16S, balance is not available. BMS16Pro For 2S-16S, 1.2A balance current per cell Version History Version description V1.05 Released first time V1.06... -
Page 14: Warranty And Service
Warranty and Service Chargery Power Co., Ltd. as manufacture of power system warrants its BMS24 and current Sensor to be free of defects in material and workmanship. This warranty is effective for 12 months from date of purchase. If within the warranty period the customer is not satisfied with the products performance resulting from a manufacturing defect, the accessory will be replaced or repaired.
