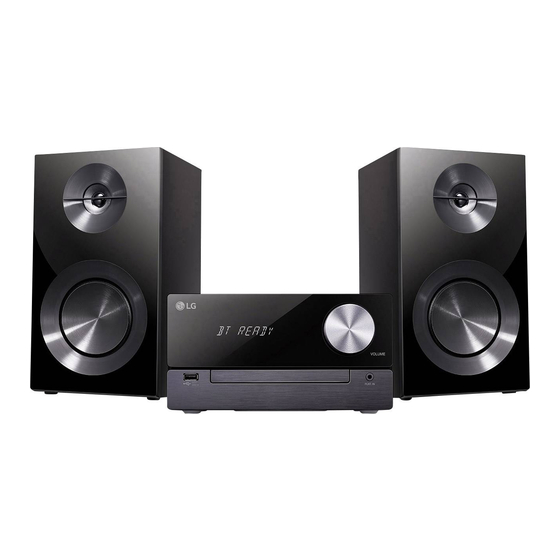

LG CM2460 Simple Manual

SIMPLE MANUAL
Micro Hi-Fi
Audio
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner's Manual.
Some of the content in this manual may differ from your unit.
MODEL
CM2460
MFL69389539
Copyright © 2016-2018 LG Electronics Inc. All Rights Reserved.
CM2460-FB.ACANLLK_SIM (Sheet)_MFL69389539.indd 1,4
Front Panel
a 1/! (Power)
Switches the unit ON or OFF.
b F
Selects the function or input source.
c Y/U (Skip/Search)
- Searches backward or forward.
- Skips to the previous/next track/file.
a b c d e
TUNING - / +
Selects the radio stations.
d T (Play/Pause)
- Starts or pauses playback.
- Selects Stereo/Mono.
e R
f
Opens or closes the disc tray.
h
f Remote sensor
g
g Display window
h Volume Knob
Adjusts volume of speaker.
i USB
i j k
Plays the audio files by connecting the USB device.
j Disc tray
k PORT. IN
Connects to a Portable device.
Rear Panel
a FM ANTENNA
b SPEAKERS (L/R) terminals
c POWER IN
a
c
b
Controller App
www.lg.com
Download the Music Flow Bluetooth App to your For more information, download the online owner' s
device. manual. http://www.lg.com
Speaker Connection
Red
Black
Additional Information
Specifications
Refer to the main label on
Power Requirements
the unit.
Refer to the main label on
the unit.
Networked standby : 0.5 W
Power Consumption
(If all network ports are
activated.)
Approx. 230 mm x 125 mm
Dimensions (W x H x D)
x 236 mm
Net Weight Approx. 2.1 kg
Bus Power Supply (USB) 5 V 0 500 mA
Amplifier
100 W
(Total RMS output power)
LG Sound Sync (Wireless)
Design and specifications are subject to change without
notice.
Industry Canada Statement
[For having wireless function (WLAN, Bluetooth,...)]
This device contains licence-exempt transmitter(s)/
How to disconnect the wireless network
receiver(s) that comply with Innovation, Science and
connection or the wireless device
Economic Development Canada' s licence-exempt RSS(s).
Operation is subject to the following two conditions:
Turn off the unit by pressing the power button for more
(1) This device may not cause interference.
than 5 seconds.
(2) This device must accept any interference, including
Replacement of battery interference that may cause undesired operation of the
device.
CAN ICES-3 (B)/NMB-3 (B)
IC Radiation Exposure Statement
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with IC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with
minimum distance 20 cm (7.8 inches) between the
antenna & your body.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE
FOR ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE USER'S
AUTHORITY TO OPERATE THE EQUIPMENT.
WARNING
[For product having the wireless function using 5 GHz
frequency bands]
i. the device for operation in the band 5150–5250
MHz is only for indoor use to reduce the potential
for harmful interference to co-channel mobile
satellite systems;
ii. for devices with detachable antenna(s), the
maximum antenna gain permitted for devices in the
bands 5250-5350 MHz and 5470-5725 MHz shall
be such that the equipment still complies with the
e.i.r.p. limit;
iii. for devices with detachable antenna(s), the
maximum antenna gain permitted for devices in
the band 5725-5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits as
appropriate; and
iv. [for devices operating in the band 5250-5350 MHz
having an e.i.r.p. greater than 200 mW] antenna
type(s), antenna models(s), and worst-case tilt
angle(s) necessary to remain compliant with the
e.i.r.p. elevation mask requirement set forth in
section 6.2.2.3 of RSS-247 shall be clearly indicated.
Users should also be advised that high-power radars
are allocated as primary users (i.e. priority users) of the
bands 5250-5350 MHz and 5650-5850 MHz and that
these radars could cause interference and/or damage to
LE-LAN devices.
LG Customer Information Center
Centre d'information à la clientèle de LG
1-888-542-2623 CANADA
Register your product Online!
Enregistrez votre produit en ligne!
www.lg.com
2018-05-29 9:51:54
