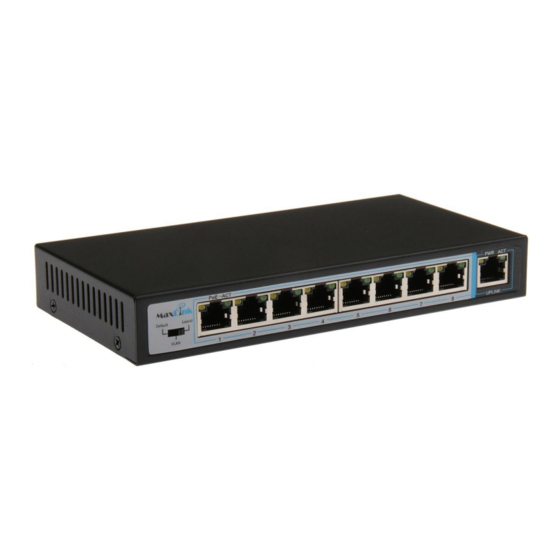

MaxLink PSAF-8-4P Quick Start Manual

Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual

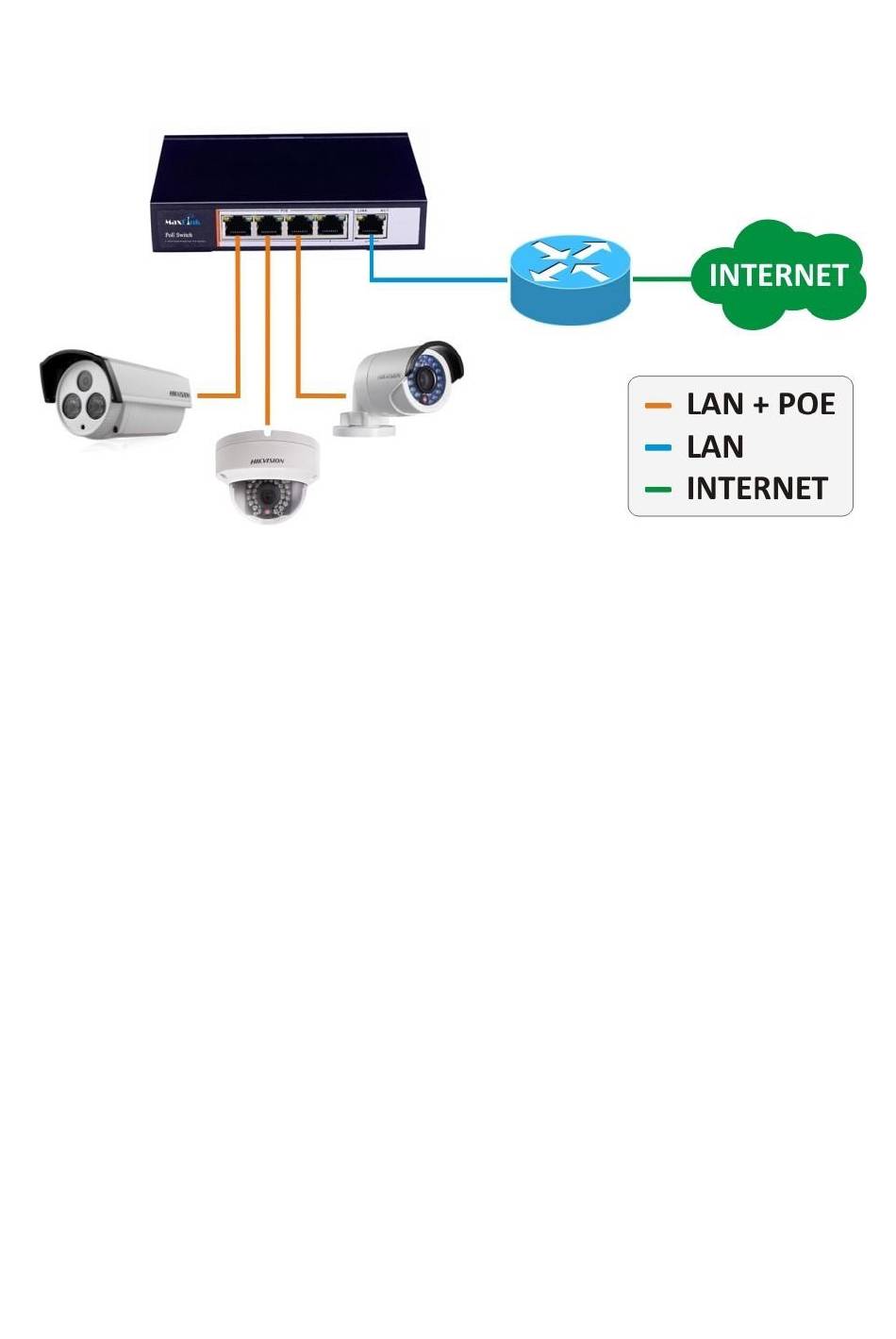

Connection diagram
User Guide
1.Check the PoE switch
(1) Please check the enclosure, RJ45 ports, LED indicators, make sure they are ok.
(2) Connect the PoE switch with power, make sure the initialization of PoE switch is as
below:
POE indicator is off at the beginning when power connected
PWR indicator is on and it keeps on
Other green indicators will be on, then off after one or two seconds
2.Connection cables
(1) Connect the PoE switch to PD(IP camera, wireless AP) by CAT5 or 6 cables
(2) Connect the external power adapter to PoE switch
(3) Connect the power cord to AC plug

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSAF-8-4P and is the answer not in the manual?

Questions and answers

Related Manuals for MaxLink PSAF-8-4P

Summary of Contents for MaxLink PSAF-8-4P

  • Page 1 Connection diagram User Guide 1.Check the PoE switch (1) Please check the enclosure, RJ45 ports, LED indicators, make sure they are ok. (2) Connect the PoE switch with power, make sure the initialization of PoE switch is as below: POE indicator is off at the beginning when power connected PWR indicator is on and it keeps on Other green indicators will be on, then off after one or two seconds 2.Connection cables...
  • Page 2 3.Caution 1) All operation should be provided only by a qualified service technician. 2) Make sure your PoE devices comply with IEEE 802.3af/at. 3) Make sure the power is off before unplugging the power adapter. 4) Makes sure all PoE PDs power consumption is less than total power 5) Please avoid any heavy thing placed on the switch.
  • Page 3 MaxLink 8 Port PoE Switch PSAT-9-8P-250...

  • Page 4: Product Description

    Product Description MaxLink PSAT-9-8P-250 Series PoE switch automatically detect and supply power according to IEEE 802.3af/at compliant Powered Devices (PDs), it has 9x 10/100Mbps Auto-Negotiation RJ45 ports and 8 of them does support PoE (Power over Ethernet). PoE switch supports powering devices up to 250m while transmit bandwidth of RJ45 PoE ports drops to 10Mbps.

  • Page 5: Technical Specification

    Technical Specification Network Interface 8x 10/100Mbps PoE RJ45 port(port 1~port 8) 1x 10/100Mbps Non-POE RJ45 port Data Rate 100Mbps full Duplex,10 or 100Mbps Half Duplex Network interface:10BASE-T or 100BASE-TX Ethernet RJ-45 port Bandwidth:1.8Gbps (non blocking) Network delay(100 to 100M bps): maximum 20 microseconds(using 64 byte packet) Performance MAC address capacity:1K...
