Summary of Contents for TTI BackUp16

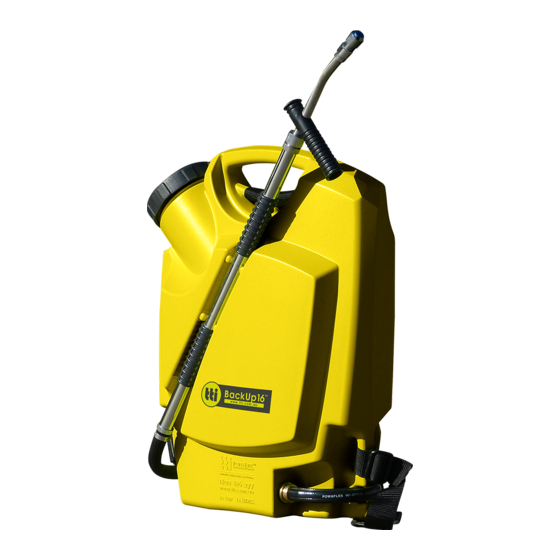

- Page 1 OPERATOR’S HANDBOOK w w w . t t i . c o m . a u BackUp16 / StandBy10 ™ ™ Portable Fire Fighters Manufacturer of The Safest Tanks in Motion...
-
Page 2: Table Of Contents
TTi’s BackUp16 /StandBy10 HandBook ™ Table of Contents Introduction Your Safety Risk Assesment Operating Instructions Maintenance Parts List Warranty Warranty Registration Card www.tti.com.au Call 1800 816 277... -
Page 3: Introduction
Introduction Please carefully read your operators handbook before mounting & using your Backup16 or Standby10. Keep your handbook in a safe place. Thank you for your purchase of a BackUp 16 or StandBy10 which is complete and ready to use. -
Page 4: Risk Assesment
TTi’s BackUp16 /StandBy10 HandBook ™ Risk Assesment Product Information Risk Assessment Sheet TTi - BackUp16™ and Standby10™ TASK HAZARDS RISK CONTROL MEASURES • Concentrate on task; • follow safe manual handling techniq ues: • don’t lif t on your own if > 20kg, bend Manual handling;... -
Page 5: Operating Instructions
Please contact your dealer immediately should anything appear to have been damaged. Operation - BackUp16 Fill tank from appropriate water source. Place the unit on a surface at the same height as your back. Slide one arm through a strap and stand upright while swinging the opposite arm through the remaining strap. -
Page 6: Maintenance
TTi’s BackUp16 /StandBy10 HandBook ™ Operation - Standby10™ 1. Your Standby10 is supplied with two spring steel mount brackets for easy mounting on any convenient location on your tractor or trailed equipment. 2. To mount unit, remove the clips from the tank & fasten securely to any suitable flat surface approx. -
Page 7: Parts List
TTi’s BackUp16 /StandBy10 HandBook ™ Parts List Lance Parts Code Description 8.39.04.303 Rubber Washer 8.39.04.306 Grip 2.23.15.911 Round Joint AN-11 8.39.04.009 Piston 8.39.04.005 2.20.08.010 Stainless eteel ball Φ 10 8.39.08.017 Nozzle 8.39.08.620 Tube with Sprayer 8.39.08.002 Inlet Nipple 8.39.08.324 Spring 2.03.24.012... - Page 8 TTi’s BackUp16 /StandBy10 HandBook ™ BackUp16 Parts Code Description YP1016 Fire fighting knapsack - tank only YP1000 Lance YP105 Filter basket YP286 Lid - no breather YP286B Lid breather YP1002 1/2” rubber hose YP1005 Clip clamps YP1001 knapsack pick up tube...
- Page 9 TTi’s BackUp16 /StandBy10 HandBook ™ StandBy10 Parts Code Description YFATM10TANK Tank only - Tractor mount fire fighter YFBKT Mounting barckets - per pair YP105 Filter basket YP286 Lid - no breather YP286B Lid breather YP1002 1/2” rubber hose, per mtr...
-
Page 10: Warranty
TTi’s BackUp16 /StandBy10 HandBook ™ Warranty This Fire Fighting unit has been guaranteed free from defect in materials, workmanship or manufacture for 12 months from the date of purchase. Any parts which appear to us to be defective either in material or workmanship will be replaced or repaired at no cost to the purchaser, subject to the following conditions: 1. -
Page 11: Warranty Registration Card
Alternatively if you are unable to register on-line fill in all the details below, copy and email to warranty@tti.com.au or post to the address on the back cover. I have read and understood the instructions in this booklet. Date Purchased:... - Page 12 w w w. t t i . c o m . a u 1800 816 277 sal es@t ti.co m .au PO Box 137, N a t ha l i a , V I C , 3 6 3 8 M ur ra y Valley Hw y, N a t h a l i a , VI C 3 63 8...
