AIM

ROBOTICS

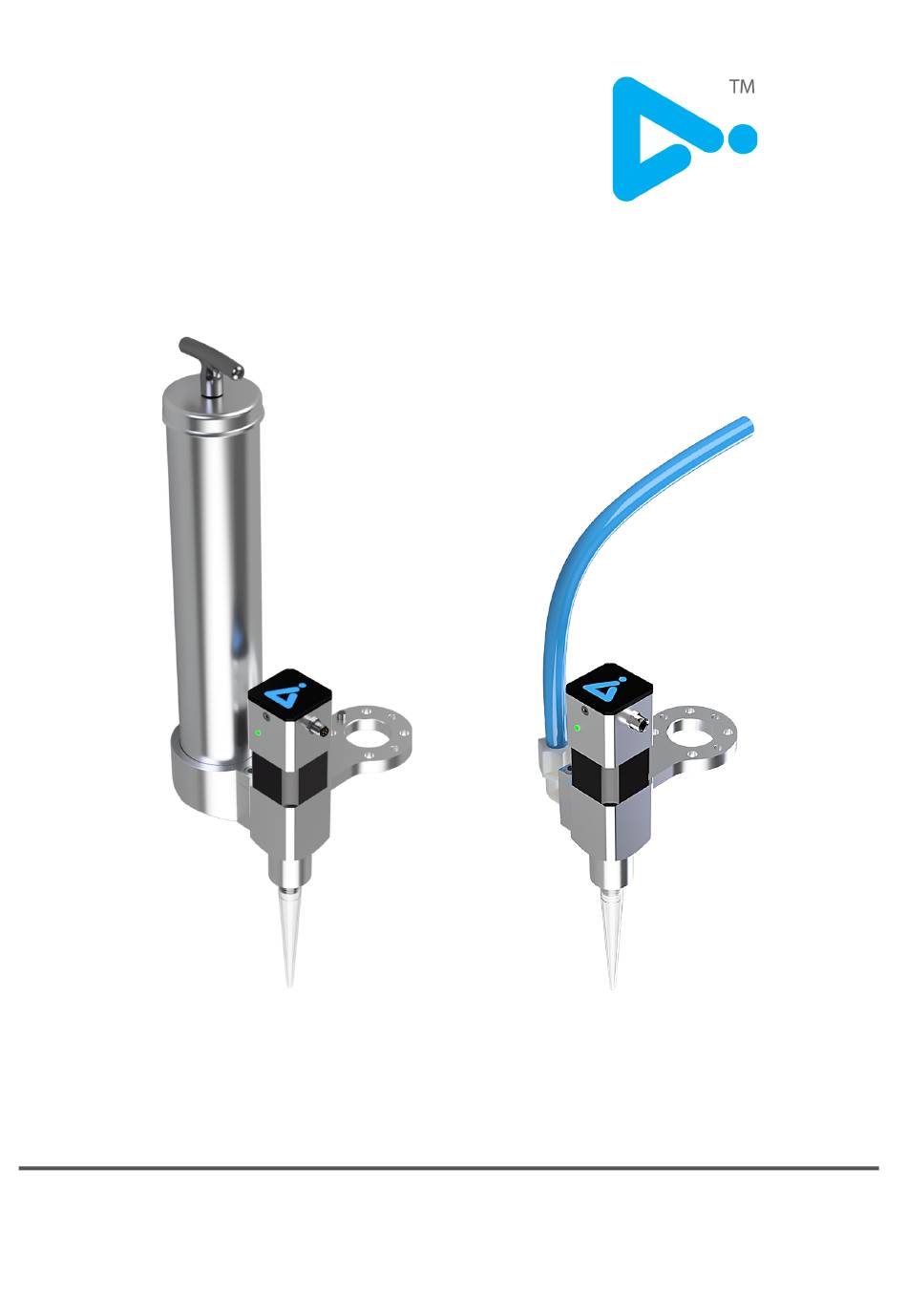

FD400 & FDhighV

USER MANUAL

ORIGINAL INSTRUCTIONS (EN) VERSION 0.4

Table of Contents

Need help?

Do you have a question about the FD400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aim FD400

Page 1 ROBOTICS FD400 & FDhighV USER MANUAL ORIGINAL INSTRUCTIONS (EN) VERSION 0.4...
Page 2 THE INFORMATION CONTAINED HEREIN IS THE PROPERTY OF AIM ROBOTICS APS AND SHALL NOT BE REPRODUCED IN WHOLE OR IN PART WITHOUT PRIOR WRITTEN APPROVAL BY AIM ROBOTICS APS. THE INFORMATION IS SUBJECT TO CHANGES WITHOUT NOTICE AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY AIM ROBOTICS APS.
Page 3: Table Of Contents
TABLE OF CONTENT FD400 TECHNICAL DATA WHAT'S IN THE BOX FDhighV TECHNICAL DATA WHAT'S IN THE BOX INSTALLATION OPERATIONS GUIDE SOFTWARE CONFIGURATION PROGRAMMING Dispensing Node Auto TCP Circles Waves Pre-feed Node Installation Node / Purge Cycle Purge Node SAFETY HOW TO...
Page 4: Fd400 Technical Data
WHAT'S IN THE BOX R O D HANDLE R O D TAB C A R TRIDGE BA R R E L P U M P UNIT L E D INDICATO R F L U ID FUNNEL U S B WITH URC A P 8 P I N LEAD 3 X NOZZLES 6 x M 6 SCREW...
Page 5: Technical Data
TECHNICAL DATA FD400 FEATURES Only connect to cobot, no need for external air supply Use with 400ml cartridges DIN 1284 Recommended for single-component medium viscosity fluids, NLGI class 2-3 Model # FD400 URCap version 3 .0 ≥ Mechanical interface: ISO 9409-1, type 50-4-M6...
Page 6: What's In The Box
WHAT'S IN THE BOX L E D INDICATO R N P T 1/4 INLET P U M P UNIT U S B WITH URC A P 8 P I N LEAD 3 X NOZZLES 6 x M 6 SCREW 1 x O RIENTATION P I N...
Page 7 TECHNICAL DATA FDhighV FEATURES Use with external feeding system Recommended for single-component medium to high viscosity fluids Model # FDhighV URCap version 3 .0 ≥ Mechanical interface: ISO 9409-1, type 50-4-M6 NPT 1/4 Electrical interface: 8-pole M8 Digital interfaces: URCap, PolyScope 5 .5 ≥...
Page 8: Installation
INSTALLATION: FD400 1. Assemble unit and attach to robot Attach unit to robot flange While the robot is off or Attach funnel (E) with 4 screws tool I/O is zero: Plug in with 2 screws the 8 pin connector* into unit and robot.
Page 9 INSTALLATION: FDhighV Assemble unit and attach to robot Attach NPT1/4" connector While the robot is off or Attach unit to robot flange with feeding line to inlet tool I/O is zero: Plug in with 4 screws the 8 pin connector* into unit and robot.
Page 10 INSTALLATION: 310adapt Adapt FD400 to use 310ml cartridges Pull back rod handle and Attach barrel into funnel Screw adaptor on to the angle it to keep it cartridge extended Release rod handle from Cut tip off cartridge Insert cartridge into barrel...
Page 11: Operations Guide
OPERATIONS GUIDE Start up After the unit has been paused or stopped, through flow should be tested and the tip changed In Installation > URCaps > Setup tab, select the Press&Hold to dispense button and press until there is a steady flow through the dispenser. Cleaning We recommend filling the unit with a fluid cleanser and letting it run through the system.
Page 12: Software Configuration
If not protected by password: Press and select Settings > System > URCaps Press symbol to add a new URCap: Navigate to USB device and select Aim URCap Accept when the robot prompts to restart before continuing. 2. Payload and TCP Select the Installation tab for Payload select General >...
Page 13 The Tool IO can be controlled by the Aim URCap Select the Installation tab and select General > Tool IO In the IO interface control section use pull down menu to select Aim URCap The Tool IO can be controlled by user and manually entered...
Page 14: Programming
PROGRAMMING Aim Dispense Node Programming the unit Select the Program tab and select URCaps > Dispense Node In the Program tree; insert moves and waypoint to define the dispensing path * Select Dispensing speed (normally start with 25 microlitre). If necessary, select Pullback, which holds back the fluid to ensure more precise dispensing at end of path or to prevent fluid 'hanging' from the nozzle after dispensing.
Page 15: Circles
PROGRAMMING Programming CIRCLES To program circles select the button. In the Program tree the Set Circle move has been inserted. Enter Circle Radius and select Center Point to define the center of the circle. After entering the Robot speed and Robot Acceleration press Move to start. This will be the point where the robots starts dispensing the circle.
Page 16: Waves
PROGRAMMING Programming WAVES To program waves select the button. In the Program tree the Set Wave move has been inserted. Enter Wave Count (amount of waves between start and end point) Enter Wave Width Press Add Start-End to select the start and end point of the line for the wave to follow The wave curve is also dependant on the robots movements.
Page 17: Pre-Feed Node
PROGRAMMING Aim Pre-Feed Node This node can be used if the PullBack command is also used. When adding a pullback it 'returns' a little fluid in the nozzle. In order for the next path to start dispensing at the start point defined the PreFeed will start the dispensing the just before the path starts to ensure the fluid is ready at the tip of the nozzle for a smooth start.
Page 18: Installation Node / Purge Cycle
PROGRAMMING Aim Installation Node / Purge Cycle Select the Installation tab and select URCaps > Aim In Setup you can activate the Purge Cycle and the connected inputs (Purging speed, time and waiting time). These options are only available if the Purge Cycle has been activated.
Page 19: Purge Node
PROGRAMMING Aim Purge Node This node will run in the program tree, if inserted. This can be used to ensure the fluid does not harden in the tip while the program is running or to wipe the tip. The parameters and the Purge Point must be defined in the Purge Node. Select Purge Point in the program tree.
Page 20: Safety
Define path to and from the dispensing path Define path to and from the purge point Sharp objects The FD400 can be equipped with nozzles and needles to dispense as desired. Caution should be taken when using these attachments, because they can puncture your skin.
Page 21 Rotate a low speeds or when clearance to robot links are small. Where possible ensure minimum gap to robot links and cartridge. RECOMMENDATION It is recommended that products from Aim Robotics are integrated in compliance with the following standards, technical reports and specifications: ISO 10218-2:2012 ISO 10218-1:2012 §5.10 and one or more of the requirements in 5.10.2 to 5.10.5...
Page 22: How To
HOW TO Set Tool IO to 'zero' Tool IO: Power must be ´zero´ when plugging in the end-effector Select the Installation tab and select General > Tool IO The unit does not dispense Too many URCaps controlling the Tool I/O Try to delete all other URCaps to avoid interference Restart Ensure that restart has been done after installation and LED light is a steady...
Page 24 ROBOTICS DESIGNED IN DENMARK BY AIM ROBOTICS APS AIM-ROBOTICS.COM / CONTACT@AIM-ROBOTICS.COM ORIGINAL INSTRUCTIONS (EN) VERSION 0.4...
