Roger Access Control System
Buffered Power Supply PS-15DR v1.0
Document version: Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-15DR and is the answer not in the manual?

Questions and answers

Related Manuals for Roger PS-15DR

Summary of Contents for Roger PS-15DR

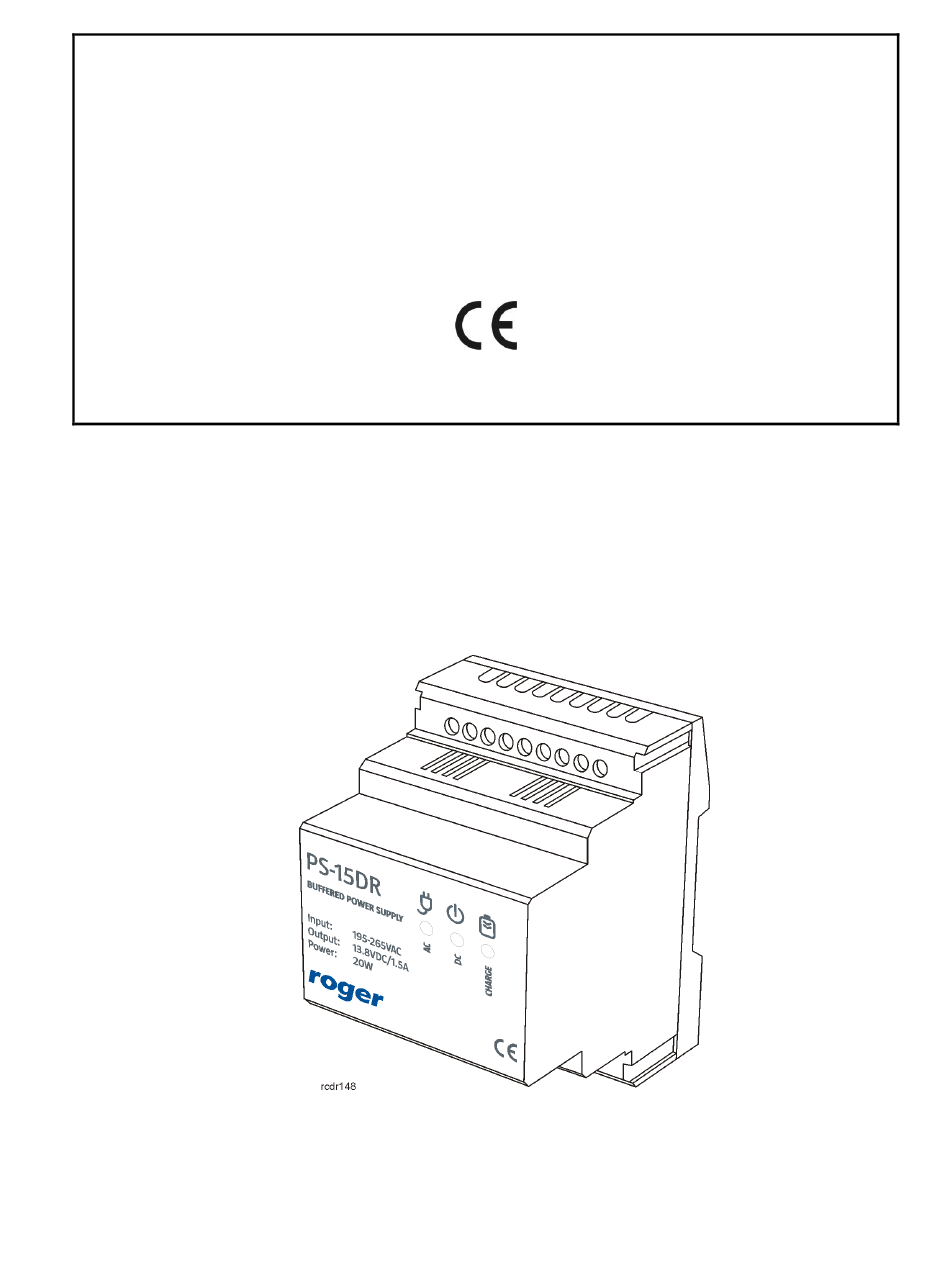

  • Page 1 Roger Access Control System Buffered Power Supply PS-15DR v1.0 Document version: Rev. B...

  • Page 2: Product Description

    The PS-15DR is dedicated for electronic equipment which require 12VDC buffered source of supply. At nominal condition PS-15DR can provide up to 1.5A output current with no time limit. Although the PS-15DR was designed and tested for Roger Access Control System (RACS), anyway it can be used with any other applications requiring buffered supply source, in such cases an integrator or installer must verify that PS-15DR will operate satisfactory in given application.

  • Page 3: Battery Management

    This method of charging guaranties relatively quick and safe charging process. Depending on battery charging phase the output voltage of PS-15DR may vary from ~ 11.5V up to 13.8V level. When battery voltage drops below ~10.0V internal circuit disconnects it from output load, battery is automatically reconnected when AC supply returns.

  • Page 4: Front Panel

    Fig.2 Front panel LED indicators 6. I NSTALLATION PS-15DR have to be mounted on DIN 35mm rail and in a vertical position as presented on Fig.3. Fig.3 General installation principle Power supply should be installed far enough from heat and moisture sources, device ventilation holes shall not be obstructed and free air convection or forced air flow must be provided to ensure proper exploitation.

  • Page 5: Safety Precautions

    Output voltage is available on two paralleled terminals AUX1 and AUX2 and supervised by common overcurrent and overvoltage protection. Note: PS-15DR will not start operation on reserve battery, the AC supply must exists in order to start device operation. 7. S AFETY PRECAUTIONS The electric installation must be carried out by qualified person.

  • Page 6: Terminal Description

    PS-15DR Installation Guide Rev.B.doc 2013-04-23 8. T ERMINAL ESCRIPTION Terminal Function 230VAC 230VAC line inputs, terminal N (NEUTRAL) and L (LINE) BAT+ Battery positive terminal BAT- Battery negative terminal AUX1+ Power supply AUX1 positive terminal AUX1 - Power supply AUX1 negative terminal...
  • Page 7 PS-15DR Installation Guide Rev.B.doc 2013-04-23 10. P RODUCT ISTORY Name Date o publication Description PS-15DR v1.0 01/2013 First commercial release Such symbol on the product or its package means that the product should not be disposed together with other wastes, because it may cause negative effects to environment and humans health.
