Summary of Contents for Gianni BG245

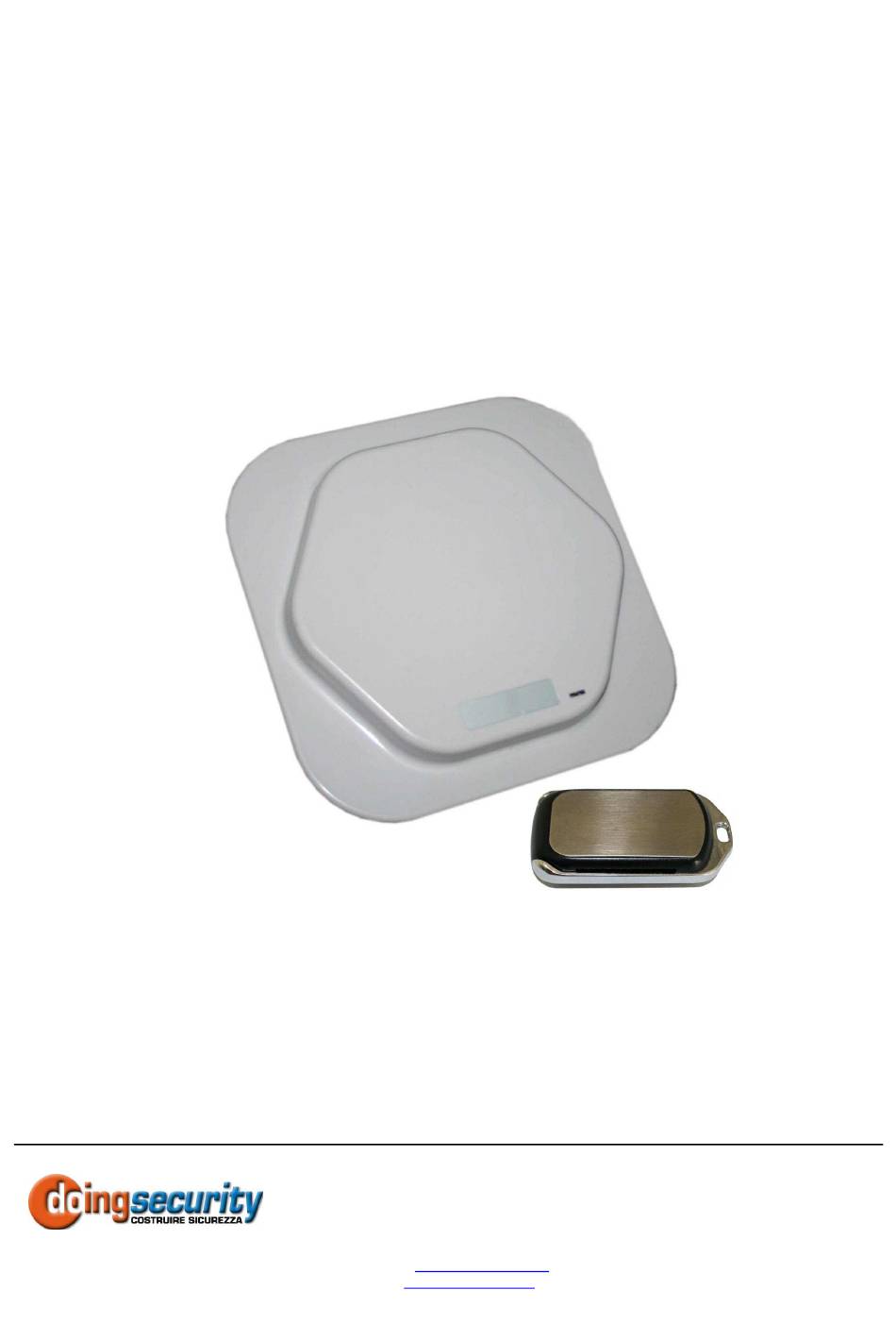

- Page 1 2.45 GHz RFID ANTENNA BG245 USER MANUAL MAY 2009 ING. GIANNI SABATO Via S. Stefano 74, I-40125 Bologna GSM +39 335 238046 Ph. +39 051 6211553 Fax +39 051 3370960 E-mail: info@doingsecurity.it Web: www.doingsecurity.it...
-
Page 2: Table Of Contents
RFID SYSTEM......................5 YOUR MANTAINING RFID SYSTEM ......................5 YOUR TROUBLESHOOTING ..........................6 3 ANTENNA MOUNTING INSTRUCTIONS ........7 4 HARDWARE SPECIFICATIONS ............ 8 5 BATTERY REPLACEMENT INSTRUCTIONS ......9 6 CONTACTS..................10 User Manual – BG245 pag. 2 may 09... -
Page 3: Overview
This antenna is suited for any “hands-free” access control system. 1.1 LED STATUS OF THE BG245 RFID READER Green LED Flashing once per second: the reader is working properly (stand-by). -
Page 4: Connecting Your Rfid Antenna
Yellow Wiegand Output DATA 0 Note: the GND wire of the BG245 must connect with the GND line of the Wiegand controller; otherwise, the communication network cannot be established. White wire and Green wire are welded together to enable the reader to read tag. Alternatevely the White and Green wire must be connected to an external trigging device (i.e. -
Page 5: Networking Your Rfid System
4. Do not use the tag without its waterproof protection, since this prevent from moisture. 5. Do not remove the already fixed 2.45 GHz reader in a certain position unless it is malfunctioned, otherwise the stability of the whole system will be affected. User Manual – BG245 pag. 5 may 09... -
Page 6: Troubleshooting
2. When reading a tag, the reader’s Green LED is flashing but not the Red LED, and there is no beep sound from the buzzer. Please connect the Green wire with the White wire together so that the tag can be detected by the reader. User Manual – BG245 pag. 6 may 09... -
Page 7: Antenna Mounting Instructions
2.45 GHz RFID ANTENNA 3 ANTENNA MOUNTING INSTRUCTIONS Using the provided antenna holder, please, refer to the following drawing for the pole installation. The suggested pole diameter dimension is between 30 mm to 50 mm. User Manual – BG245 pag. 7 may 09... -
Page 8: Hardware Specifications
Battery type CR2030 (battery replaceable) Battery life 2 years Working Temperature -20°C ~ +60°C Store Temperature -20°C ~ +60°C Shock Absorbency Shock-proof case, 1 m height drop-tested according to the IP54 standards User Manual – BG245 pag. 8 may 09... -
Page 9: Battery Replacement Instructions
1. Remove the screws by using a proper screwdriver 2. Open the covers of the card 3. Remove the battery from the battery cage 4. Put back with a new battery and reassemble the covers. User Manual – BG245 pag. 9 may 09... -
Page 10: Contacts
2.45 GHz RFID ANTENNA 6 CONTACTS DOINGSECURITY SAS di Sabato Gianni e C. Via Santo Stefano 74 40125 Bologna (BO) – Italia Tel.: +39 051 6211553 - Fax.: + 39 051 3370960 E-mail: info@doingsecurity.it - Internet: www.doingsecurity.it P.IVA: IT 02996061202 User Manual –...
