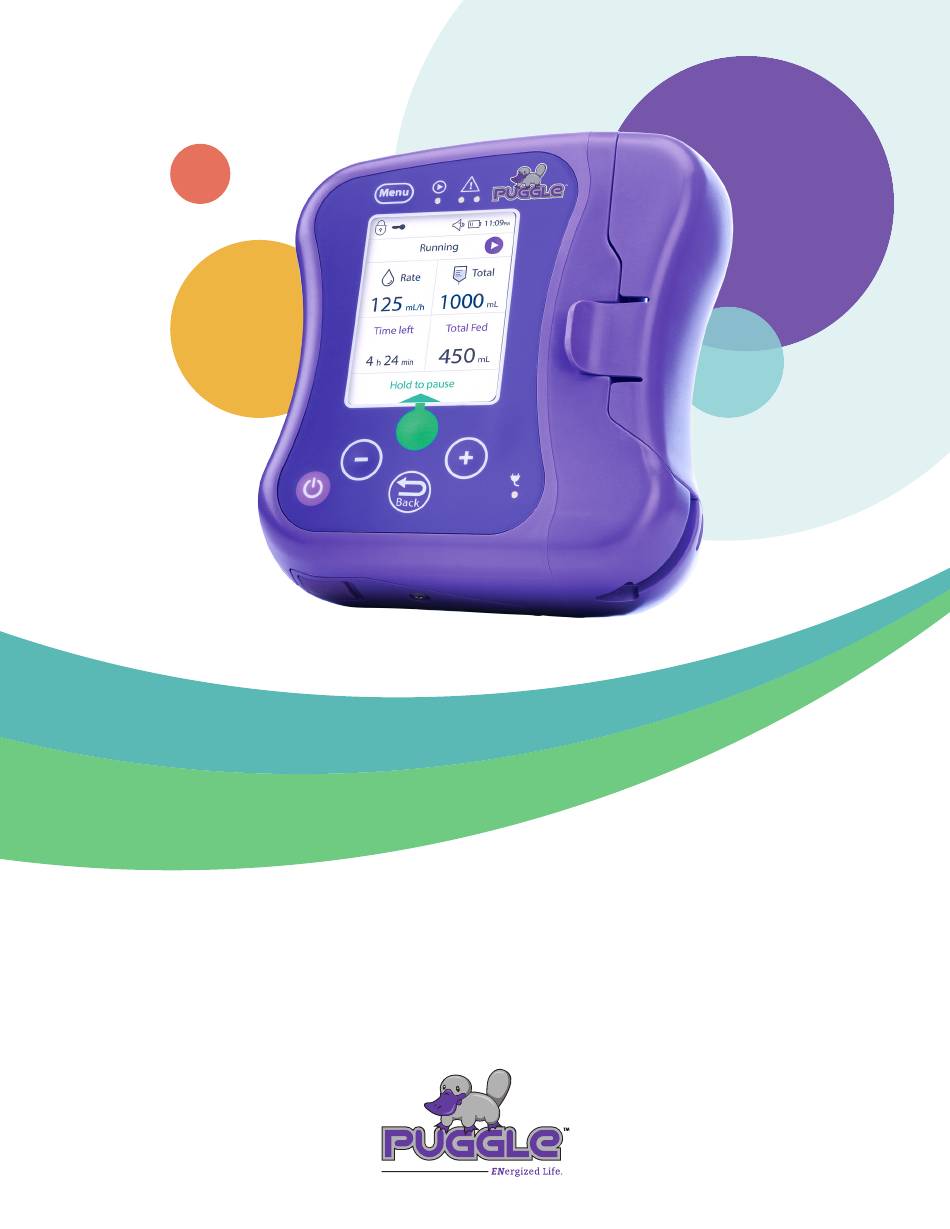

- Page 1 Enteral Feeding Pump Quick Reference Guide...
-
Page 2: Icon Explanations
Icon Explanations Description of LCD screen icons and sections: Notification header 11:09 «Lock rate and volume» mode is activated Running The «Intermittent» mode is activated (not shown) Total Rate The keypad is locked (see section 4.3) 1000 mL/h Indicates battery charge level Time left Total Fed 11:09PM Clock... -
Page 3: Switching On The Pump
Launch automatic priming (see step 3). Connect the tubing to the patient enteral feeding tube and program the pump. Menu Switching on the Pump Turn on the PUGGLE™ pump by holding the on/off button [ ] until a beep is heard. - Page 4 Enteral feeding pump for ambulatory Starting Up 2.Prime of the tubing 1.Placement of the tubing Switch on and prime the tubing Open the door, place the silicone loop Guide the tubing from the cassette down to Switch on the pump by pressing around the rotor and make sure the secure into their respective slots.
-
Page 5: Using The Pump
Using the Pump 11:09 11:09 Adjust flow rate Select volume option - - - Enter entire bag volume 11:09 11:09 mL/h Adjust flow rate Adjust volume Value must be larger than zero mL/h Next Next <<Simplified>> Mode Press to adjust flow rate from 1 to 400 mL/h, then press the multifunction button [ Press to use entire bag. - Page 6 Alarms and Troubleshooting Solid yellow LED - Low priority alert Issue Solution 11:09 Low battery Less than 30 min remaining Dismiss notice Charge the battery by connecting the AC adapter to the pump and power source. 11:09 Running Low battery Less than 30 min remaining Dismiss notice...
- Page 7 Alarms and Troubleshooting Flashing yellow LED - Medium priority alarm Issue Solution Switch the pump off or press the multifunction button [ ] to program a new feeding. Relaunch pause or resume feeding. In case of an unexpected «Air» alarm, check that the tubing is properly positioned in its slot, disconnect from patient, then launch another automatic prime.
- Page 8 Alarms and Troubleshooting Flashing red LED - High priority alarm Issue Solution Charge the battery by connecting the AC adapter to the pump and power source. Note: After plugging into the power supply, the user has to restart the feeding by pressing the multifunction button [ ].
- Page 9 Alarms and Troubleshooting Flashing red LED - High priority alarm Issue Solution Contact customer service or your healthcare provider. Contact customer service or your healthcare provider. Contact customer service or your healthcare provider.
- Page 10 Alarms and Troubleshooting Flashing red LED - High priority alarm Issue Solution Power indicator light Request a new AC adapter. remains off. Other alarms Issue Solution Continuous beeping Contact customer service or your healthcare provider. sound.
-
Page 11: Technical Information
Memory: Specific values and modes: 24h For further information, please refer to the instructions for use. Contact Amsino’s customer service if you have additional questions: Amsino International, Inc., Customer Service 708 Corporate Center Drive, Pomona, CA 91768 800.632.6746 • cssupport@amsino.com... - Page 12 Use/Operator’s Manual for a complete listing of the indications, contraindications, warnings and precautions. The symbol ® indicates the trademark is registered in the U.S. Patent and Trademark Office and certain other countries. © Copyright 2021, Amsino International, Inc. All rights reserved. EN-US-2021-5-10-QRG...
