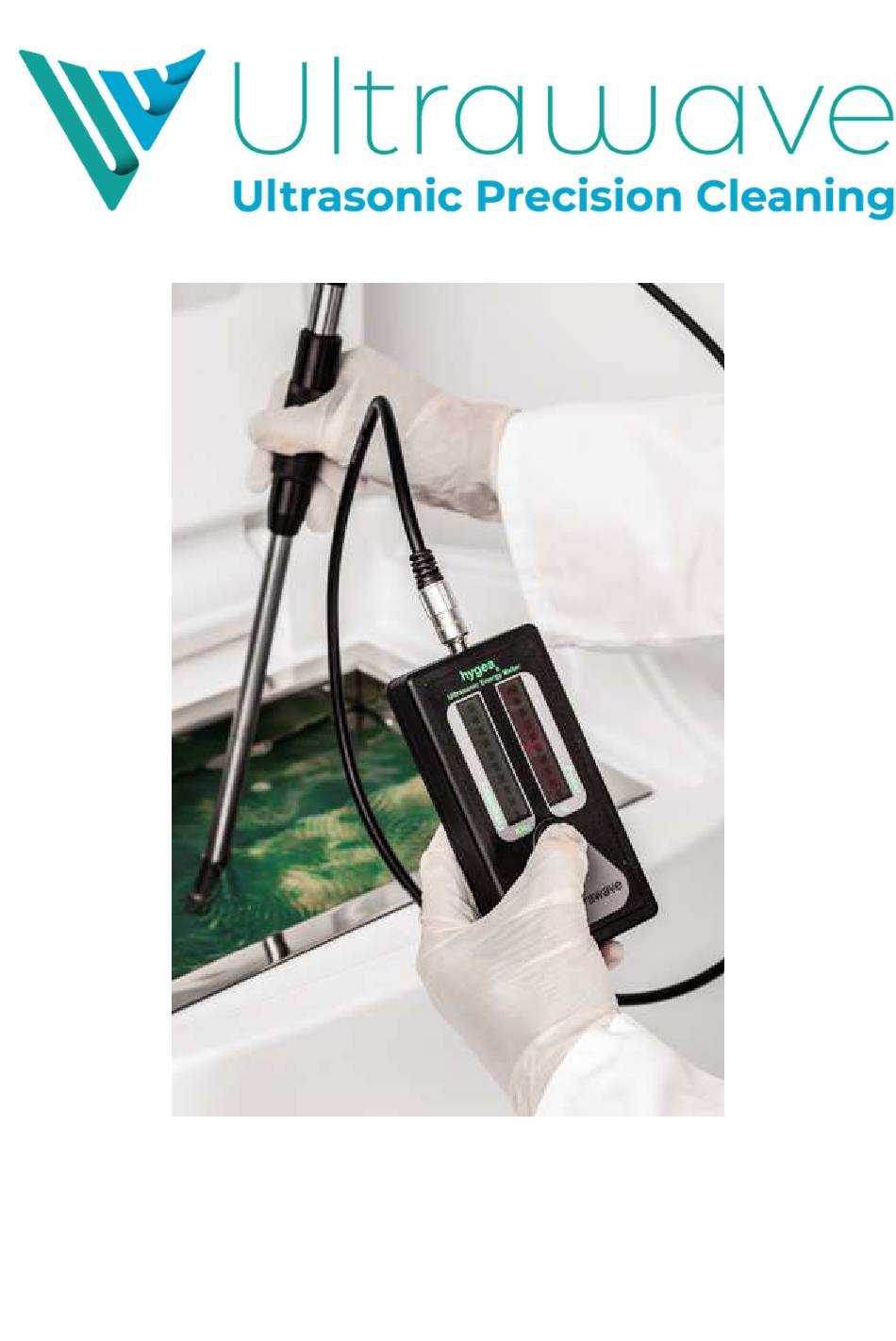

- Page 1 ® hygea Ultrasonic Activity Meter Operator Instruction Manual...
-
Page 3: Table Of Contents
Warranty ......................... 9 WEEE Compliance ....................10 Returning equipment to Ultrawave ..............10 Record Logbook ....................11 All Ultrawave products are manufactured in the United Kingdom. The user should familiarise themselves with this instruction booklet before operating the equipment. C6023502-03 November 2020... -
Page 4: Hygea Ultrasonic Activity Meter
® hygea Ultrasonic Activity Meter is also used in many manufacturing and processing industries where Ultrawave ultrasonic systems are a key part of the manufacturing process. How it works ®... -
Page 5: Operating Instructions
Operating Instructions ® The hygea Ultrasonic Activity Meter should be used to measure the level of ultrasonic activity throughout the tank. Due to possible variations in the level of energy at different points throughout an ultrasonic bath, it is necessary to measure at different points on the X, Y and Z axis. - Page 6 18 locations each time measurements are taken. 8. Record the results so that future tests can be compared. A log book is available from Ultrawave for recording the results. If there is a reduction in the readings over time, your ultrasonic cleaning system may not be working at full efficiency and may need validation and servicing.
-
Page 7: Performance
Performance Each ultrasonic bath may not run at the exact same frequency; therefore, the Hygea Ultrasonic Activity Meter will not necessarily give the same readings in two baths that are performing equally well. The Activity Meter should be used to compare a bath over a period of time rather than to compare two different baths alongside each other. -
Page 8: Hygea Ultrasonic Activity Meter Good Practice
The time needed to degas the liquid varies depending on the amount of gas present in the liquid and the quantity of water in the tank. Ultrawave recommends a degas period of at least 10 minutes. -
Page 9: Technical Specification
Technical specification Specifications Probe Assembly in Stainless Steel Ø15 × 244mm long Handle in ABS Plastic 105mm long Instrument Case in ABS Plastic 130 × 65 × 25mm Weight (probe and cable) 350 grams Weight (instrument including battery) 200 grams Indicator 1: Frequency 5-50 kHz Indicator 2: Power... -
Page 10: Troubleshooting
Troubleshooting Ultrawave have a dedicated Service team who are able to resolve any problems ® hygea that occur with your Ultrasonic Activity Meter. However, on many occasions, it is possible that the problem can be rectified by the operator. Check that the meter has a 9V battery installed. -
Page 11: Warranty
Ultrawave. Ultrawave will not be responsible for damage or injury caused by incorrect use. To confirm the warranty of your Hygea Ultrasonic Activity Meter, send an e-mail with details... -
Page 12: Weee Compliance
WEEE Compliance Ultrawave are complying with the WEEE regulations by contracting-out our obligations to a Producer Compliance scheme. Once it is deemed that this Hygea Ultrasonic Activity Meter is no longer effective, please contact us to arrange collection by our compliance scheme provider, who will pick up the machine from your premises. -
Page 13: Record Logbook
The following table can be used as a log book for recording the measurements ® hygea achieved using the Ultrasonic Activity Meter. More detailed log books are available from Ultrawave. Date: _____________ Model Name ____________ Serial No __________ Level 1 Freq. KHz Power % Level 2 Freq. - Page 14 Date: _____________ Model Name ____________ Serial No __________ Level 1 Freq. KHz Power % Level 2 Freq. KHz Power % Test person name: __________________Signature __________________ Date: _____________ Model Name ____________ Serial No __________ Level 1 Freq. KHz Power % Level 2 Freq.
- Page 15 Date: _____________ Model Name ____________ Serial No __________ Level 1 Freq. KHz Power % Level 2 Freq. KHz Power % Test person name: __________________Signature __________________ Date: _____________ Model Name ____________ Serial No __________ Level 1 Freq. KHz Power % Level 2 Freq.
- Page 16 Date: _____________ Model Name ____________ Serial No __________ Level 1 Freq. KHz Power % Level 2 Freq. KHz Power % Test person name: __________________Signature __________________ Date: _____________ Model Name ____________ Serial No __________ Level 1 Freq. KHz Power % Level 2 Freq.
- Page 17 Date: _____________ Model Name ____________ Serial No __________ Level 1 Freq. KHz Power % Level 2 Freq. KHz Power % Test person name: __________________Signature __________________ Date: _____________ Model Name ____________ Serial No __________ Level 1 Freq. KHz Power % Level 2 Freq.
- Page 18 Date: _____________ Model Name ____________ Serial No __________ Level 1 Freq. KHz Power % Level 2 Freq. KHz Power % Test person name: __________________Signature __________________ Date: _____________ Model Name ____________ Serial No __________ Level 1 Freq. KHz Power % Level 2 Freq.
- Page 19 Tel: +44 (0) 845 330 4236 Tel: +44 (0) 29 2083 7337 Service: +44 (0) 845 330 4238 Service: +44 (0) 29 2083 7336 sales@ultawave.co.uk service@ultrawave.co.uk www.ultawave.co.uk Ultrawave equipment is manufactured in the United Kingdom and conform to exacting international standards.
