Summary of Contents for LUXMAIN QUICK LIFT L520E
- Page 1 Translation of the original notice QUICK LIFT L520E 1-24 73502-V6-19/05/2021...

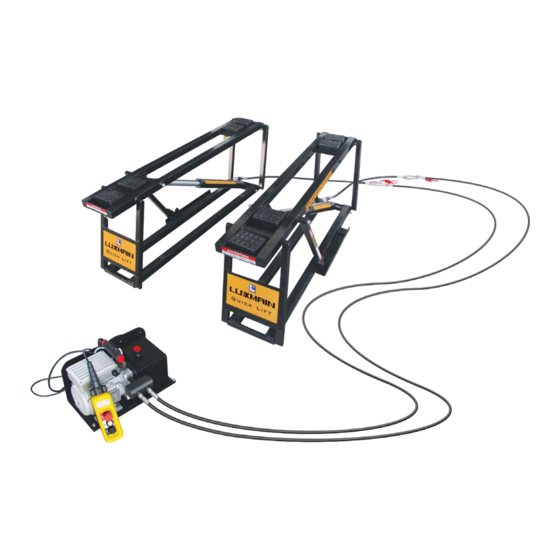

- Page 2 QUICK LIFT L520E DIMENSIONS Flat ramp Max. ramp position / weight 41 kg Hydraulic power pack / weight 22 kg FEATURES Maximum Load 2 500 kg Safety in case of mechanical fall YES (2 positions) Safety in case of hydraulic hose rupture...
- Page 3 QUICK LIFT L520E SAFETY AND FUNCTIONAL CHECK Carried out by the manufacturer according to the following data: The following elements are present: Technical nameplate on the product (hydraulic power unit) Instructions for use Max. load capacity (2 500 kg) Raise «UP», lower «DN» on the wired control unit.
-
Page 4: Ec Declaration Of Conformity
QUICK LIFT L520E EC DECLARATION OF CONFORMITY Yantai Tonghe Precision Industry Co., Ltd. Responsible for documentation No. 151, Middle Road, Xili Industrial Park, Zhifu District Yantai City Chine Hereby declares that the machine Yantai Tonghe Precision Industry Co., Ltd. named herein... -
Page 5: Background Information
QUICK LIFT L520E Thank you for choosing GYS In order to obtain maximum satisfaction from your QUICK LIFT lifting platform and for your safety, please read these operating instructions carefully before first use and keep them in a safe place for future reference. -
Page 6: Individual Protection
QUICK LIFT L520E Vehicles should only be lifted at the lifting points recommended by the car manufacturers. Make sure that the QUICK LIFT does not come into contact with areas close to the airbag activation sensors during and after the climb. - Page 7 QUICK LIFT L520E START UP Make sure you have the necessary protection: pair of glasses, safety shoes and gloves. Step 1 : Lay the two booms on the ground parallel by aligning the hydraulic hoses. The ramps are very similar but they are not interchangeable.. The mechanical safety must always be on the outside and the ramps pointing in the same direction.
- Page 8 QUICK LIFT L520E Step 2 : Place the hydraulic power pack at least 2 meters away from the ramps without connecting it to the electricity supply. Attach the long hydraulic hoses to the hydraulic power pack. Do not overtighten, the sealing is done automati- cally with the conical seat of the connections.
-
Page 9: Installation
QUICK LIFT L520E Step 5 : Turn the 2 ramps upside down and connect the hydraulic power pack electrically to a 220V single-phase socket. Press the «» button on the remote control to go upwards without stopping (do not extend the cylinder rod to the maxi- mum - maximum height from the ground to the highest point 40cm), press the «»... - Page 10 QUICK LIFT L520E 2/ CHECKING THE AMOUNT: use the wired remote control a. Press the «UP» button until the QUICK LIFT rises a few centimetres (5 to 10 cm max.). Visually check all hydraulic connections (cylinders, hoses, couplings, power pack) for hydraulic leakage. If you notice a slight leak, tighten the connection until there is no more leakage.
- Page 11 QUICK LIFT L520E • Do not lift any loads directly with the ramps. Always use the supplied rubber spacers in the trays provided for this purpose. • The centre of gravity of the vehicle to be lifted shall be midway between the rubber chocks and centred between the ramps.
- Page 12 QUICK LIFT L520E Please never go below height 1 if the vehicle has the wheels removed. And make sure that both locking bars are locked if the vehicle is to remain in this position for a long time. Ramps in lifting position: When raising and lowering vehicles, always leave your ramps in the locked position using the locking bars.
- Page 13 QUICK LIFT L520E Transport handles. Locking bar The ramps are equipped with directional wheels moving back and forth and left and right. Descent: Before carrying out the lowering manoeuvre, check that there are no persons or obs- tacles in the safety area. Also check that there are no obstacles in the booms, that the hydraulic hoses and the remote control cable do not obstruct the booms’...
-
Page 14: Maintenance Table
QUICK LIFT L520E • Turn off the power to your Quick Lift before performing any maintenance.. • Only original spare parts can be used «Spare parts» • The recommended maintenance intervals must be observed «Maintenance table» • For maintenance work that is not covered or indicated in the operating instructions, contact your distributor and/or the manufacturer. -
Page 15: Troubleshooting
QUICK LIFT L520E Tolérances générales Description Jusqu'à 3 Jusqu'à 6 Jusqu'à 30 Jusqu'à 120 Jusqu'à 400 Jusqu'à 1000 ISO 2768-F Mécanique ±0.05 ±0.05 ±0.1 ±0.15 ±0.2 ±0.3 Ra (µm) Sciage: Ra 25 Fraisage: Ra 3.2 Tournage: Ra 1.6 Casser les angles: 0.2 x0.2 CHECK POINT AND LUBRICATION All hinge pins are provided with a small hole for lubrication with SAE 90 type oil (fluid oil). -
Page 16: Warranty Conditions
QUICK LIFT L520E Check that the ramps are in the locked position. Never leave the ramps loaded without first locking the safety bars. The ramps go down slowly without using Check that the mechanical control (gold knob) of the solenoid valve the wired remote control. - Page 17 QUICK LIFT L520E OPTIONS : SKIDS FOR SUV (réf. 065017) OPTIONS : EXTENSIONS (réf. 066328)
-
Page 18: Spare Parts
QUICK LIFT L520E Quick Lift components List Quick Lift components List SPARE PARTS Quick Lift components List 13 14 Upper ramp frame 1. Lifting Frame (2 pcs) Connecting rod rear ramp 2. Rubber Plate (4pcs) 1. Lifting Frame (2 pcs) Lower ramp frame (specify right or left) 3. -
Page 19: Electric Circuit
QUICK LIFT L520E ELECTRIC CIRCUIT AC220 RD Circuit Breaker 10A250V JAT Emergency Stop SB1 UP SB2 Down Down Solenoid Valve HYDRAULIC CIRCUIT Oil-Cylinder Oil-Cylinder Explosion Explosion proof proof valve valve Synchronizing valve Two-position two-way Single spring valve electromagnetic reversing valve... - Page 20 QUICK LIFT L520E REGULAR SAFETY INSPECTION Product description QUICK LIFT L520E Serial number Verification phase Remarks Max. load capacity 2500kg present on the 2 ramps Up "UP" and down "DN" signal present Operating instructions (original) present Tightening of nuts on all axes...
-
Page 21: Maintenance Log
QUICK LIFT L520E MAINTENANCE LOG... - Page 22 QUICK LIFT L520E...
- Page 23 QUICK LIFT L520E SYMBOLS - Caution ! Read the user manual. - Device(s) compliant with European directives. The certificate of compliance is available on our website. - Equipment in conformity with Moroccan standards. - Equipment in compliance with British requirements.
- Page 24 IMPORTER GYS FRANCE 1, RUE DE LA CROIX DES LANDES CS 54159 53941 SAINT-BERTHEVIN CEDEX FRANCE...
