TMB ProTester Manual

Compact dmx signal and cable tester
Hide thumbs
1
2
Table of Contents

Advertisement

Quick Links

Download this manual

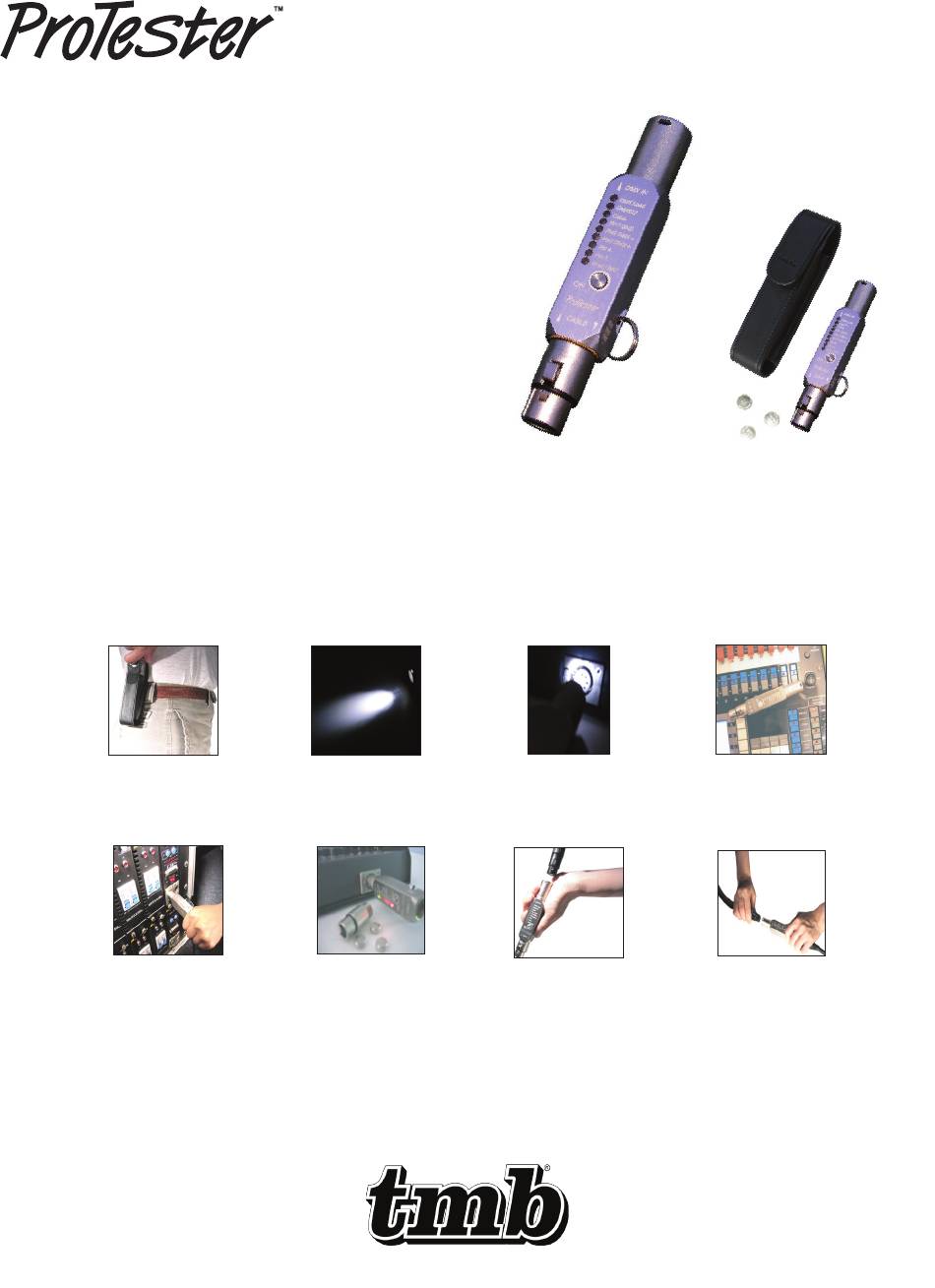

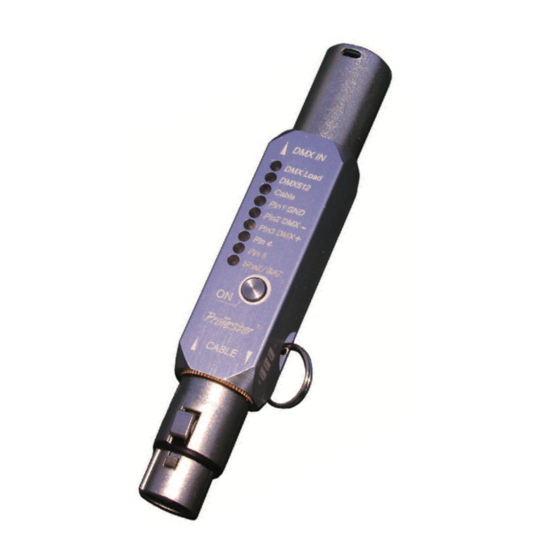

Compact DMX signal and cable tester

Construction:

• Anodized aluminum housing with engraved legend.
 •  Bright,whiteLEDflashlight.
• 5-pin male and female XLR connectors.

Battery saver functions:

• Powersoffautomatically i n120seconds.
• Remembers last used mode when powered on.
• WhentestingDMX, P roTestercanbepowered b ytheDMXsignal.
Note: Unscrew female XLR connector to access batteries.
Removeshippinginsulator b eforefirstuse

Specifications:

• Dimensions:22x130mm
• Weight:0.12Kg
• Battery:LR44x3pcs  (included)

ProTester tests DMX signal or cable:

• Nine diagnostic indicator LEDs.
• DisplayspresenceandpolarityofDMXdata,inisolationorwhilein
use.
• Leather belt holster included.
Test DMX signals.
Includes belt holster for
Highintensitywhite
easyaccess.
LEDflashlight.
Insert at output connector
When testing DMX
Connect one XLR to
Connect both XLRs to
totestDMX512.
ProTester can be powered
test signal.
test cable.
bytheDMXsignal.

Instructions on other side.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProTester and is the answer not in the manual?

Questions and answers

Summary of Contents for TMB ProTester

  • Page 1 Note: Unscrew female XLR connector to access batteries. Removeshippinginsulator b eforefirstuse Specifications: • Dimensions:22x130mm • Weight:0.12Kg • Battery:LR44x3pcs  (included) ProTester tests DMX signal or cable: • Nine diagnostic indicator LEDs. • DisplayspresenceandpolarityofDMXdata,inisolationorwhilein use. • Leather belt holster included. Test DMX signals.
  • Page 2 LEDs Scan and then extinguish. DMX512 signal present.  A lternatingRED/GREENDMX512LED: DMX512 command data present. Note:Upondisconnection,RedLEDsScan,unitreturnsto DMX512StandbyModewithDMX512LEDflashingRED. Protester V.II End to End Cable Test (testinstalledbutun-energizedDMXcable) PlaceoneV.IIProTesteratfemaleendoftestcable(connectingtotheProTester maleconnector). PlaceanotherV.IIProtesteratthealternateend o ftestcableusingafemaleto female adapter connecting to ProTester’s male connector. Press Three times to enter Cable Test.
