LOXONE 100177 Quick Start Manual

LOXONE 100177 Quick Start Manual

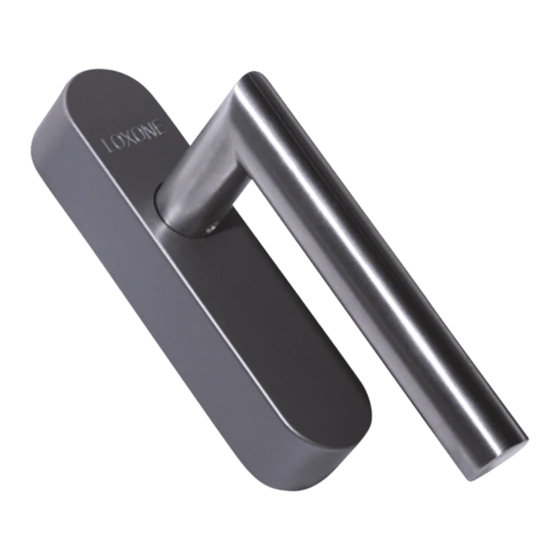

Window handle air

Advertisement

Quick Links

Technical Specifications
2x 1.5V AA batteries
Power Supply
Approx. 2 years pending on
Battery Lifetime
the use
Up to 30m
Indoor Range
868MHz (SRD Band Europe)
Radio Frequency
915MHz (ISM Band Region 2)
max. Power: 3.16mW
0...50°C
Ambient Temperature
95% r.H (non condensing)
Humidity
IP20
Safety Rating
This device is free of main-
Maintenance & Cleaning
tenance and may only be
cleaned with a dry cloth.
Spindle to screw ratio
32/37
Spindle Length in mm
45 & 50
Screw Length in mm
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
43
Austria
50 & 55
loxone.com
Window
Handle
Air
Part No: 100177

Advertisement

loading
Need help?

Need help?

Do you have a question about the 100177 and is the answer not in the manual?

Questions and answers

Summary of Contents for LOXONE 100177

  • Page 1 Loxone Electronics GmbH Spindle to screw ratio Smart Home 1 4154 Kollerschlag Part No: 100177 32/37 Spindle Length in mm Austria 45 & 50 50 & 55 Screw Length in mm...
  • Page 2 To open Hold cover on both sides and gently pull towards you. The Loxone Window Handle Air detects if a window has been left unsecured based on the three positions of the the handle - closed, open, tilt. Additionally an internal sensor can detect vibrations and alert you if the window is forcefully opened whilst you are not at home.
