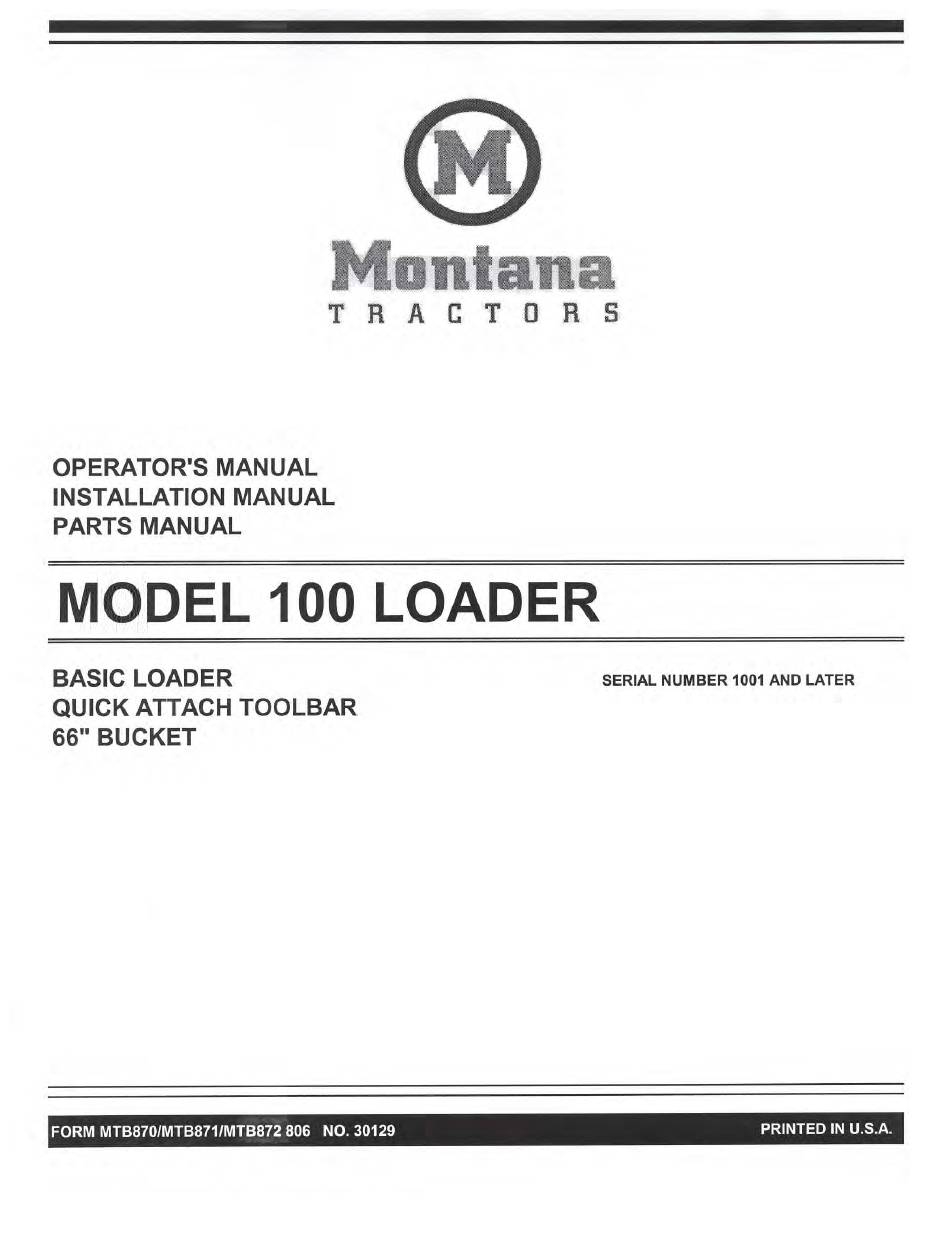

Summary of Contents for Montana 100
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION Safety Alert Symbol............................3 Safety Information ............................3 Safety Decals ..............................8 Tractor and Safety Points..........................9 OPERATING INSTRUCTIONS Operation..............................11 ASSEMBLY INSTRUCTIONS Base Loader..............................16 Bucket Quick Attach Tool Bar ........................17 Bucket Level Indicator..........................17 SERVICE AND MAINTENANCE Loader Parts Diagram and Identification Listing .................. -
Page 3: Safety Alert Symbol
SAFETY INFORMATION SAFETY ALERT SYMBOL The symbol shown below is used to call your attention to instructions concerning your personal safety. Watch for this symbol, it points out important safety precautions. It means ATTENTION! Become Alert! Your Personal Safety Is Involved! Read the message that follows and be alert to the possibility of personal injury or death. - Page 4 4. Move wheels to the tractor manufacturer’s widest recommended settings to increase stability. 5. For better stability, use tractor with wide front axle rather than tricycle front wheels. 6. Move and turn the tractor at low speeds. 7. Stop tractor engine, place transmission in park (or neutral), engage parking brake, lower loader arms to ground, cycle all hydraulic controls to relieve pressure, allow machine moving parts to stop, remove ignition key to prevent unauthorized person from starting before tractor or servicing, repairing, or making adjustments to the equipment.
- Page 5 TRANSPORATION 1. TRANSPORT all loads at slow and safe speed. 2. DO NOT drive the tractor near the edge of a ditch or excavation. 3. ALWAYS use accessory lights and devices when transporting on a road or highway to warn operators of other vehicles.
- Page 6 PERFORMING MAINTENANCE Carefully review, understand, and follow the “maintenance” section in this owner’s manual before attempting to service loader. Lower the bucket or attachment to the ground, shut off tractor engine, and relieve pressure in the hydraulic system before adjusting, lubricating, or servicing the loader. Escaping hydraulic oil under pressure can penetrate the skin.
- Page 8 TRACTOR & SAFETY POINTERS The use of good judgment and common sense is necessary by the operator in using this loader. The front and rear wheels should be set for the widest wheel tread to assure best stability. Use extra caution when rear wheel weights and tire ballast are added to a loader-equipped tractor.
- Page 9 IMPORTANT FEDERAL LAWS AND REGULATIONS* CONCERNING EMPLOYERS, EMPLOYEES AND OPERATIONS. *(This section is intended to explain in broad terms the concept and effect of the following federal laws and regulations. It is not intended as a legal interpretation of the laws and should not be considered as such).
-
Page 10: Operation
OPERATION REMOVING LOADER FROM TRACTOR 4. Unfold the loader support leg, A, and install the pins and clips, B and C as shown below. WARNING Never attempt to remove the loader from the tractor unless the bucket is installed. 1. Position the tractor and the loader on firm level ground. - Page 11 7. Start the tractor engine and release the MOUNTING LOADER ON TRACTOR brakes. Retract the bucket cylinders until the bucket is sitting on the back with the cutting 1. Start the engine on the tractor and release the edge raised and the loader arm uprights, B, parking brake.
- Page 12 9. Remove the pins and clips, A and B, from the loader support leg. Fold the loader support leg, C, and place into the stored position. Install the pins and clips, A and B, to secure the loader support leg. 7.
- Page 13 Installation Procedure for Mounting Attachments to Quick Attach Toolbar NOTE: To avoid injury when installing attachments to loader keep bystanders 15 feet away from tractor, loader or attachment. When mounting attachments, select a firm, level site for the tractor and attachment. Rotate both latch handles on the toolbar to the UNLATCHED position.
- Page 14 LOADER INSPECTION, LUBRICATION, AND MAINTENANCE Lower the bucket to the ground, shut off tractor engine, and relieve the pressure in the hydraulic system before adjusting, lubricating, or servicing the loader. Inspect all pins and grease fittings before each use and lubricate with heavy-duty grease as indicated in this manual.
-
Page 15: Assembly Instructions
5. Stop tractor. Engage Parking Brake. Activate ASSEMBLY INSTRUCTIONS – BASE LOADER loader control lever to relieve any pressure in the IMPORTANT – Have a suitable hoist available before hydraulic system. Exit tractor. proceeding with loader setup. 6. Remove the four dust caps from the quick couplers 1. -
Page 16: Bucket Quick Attach Tool Bar
WARNING Do not operate the loader with out the Loader Lock Pins in place and secured. The loader can fall off of the tractor. 12. Enter tractor. Start the engine and activate the loader control lever. If the loader functions do not operate in the directions indicated on the loader control decal, check the quick couplers for proper connection. - Page 17 BASE LOADER...
- Page 18 HYDRAULIC SYSTEM PARTS DIAGRAM...
- Page 20 MONTANA QUICK ATTACH TOOLBAR PARTS LIST Index No. Part Number Description 7508 Nut, Lock ½ NC 8560 Cotter Pin 8669 Spring, Compression 8995 Roll Pin 13442 Clevis Pin 66032 Block, Lock 616035 Adapter Frame Weldment 612947 Handle, Pivot 612948 Pin, Pivot...
-
Page 23: Specifications
SPECIFICATIONS... - Page 24 MINIMUM HARDWARE TIGHTENING TORQUES IN FOOT POUNDS (NEWTON-METERS) FOR NORMAL ASSEMBLY APPLICATIONS INCH HARDWARE Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual parts list. Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for metric hardware.
- Page 25 MINIMUM HARDWARE TIGHTENING TORQUES IN FOOT POUNDS (NEWTON-METERS) FOR NORMAL ASSEMBLY APPLICATIONS METRIC HARDWARE Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual parts list. Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for metric hardware.
