SESTOS C3E Manual

M A N U A L
●

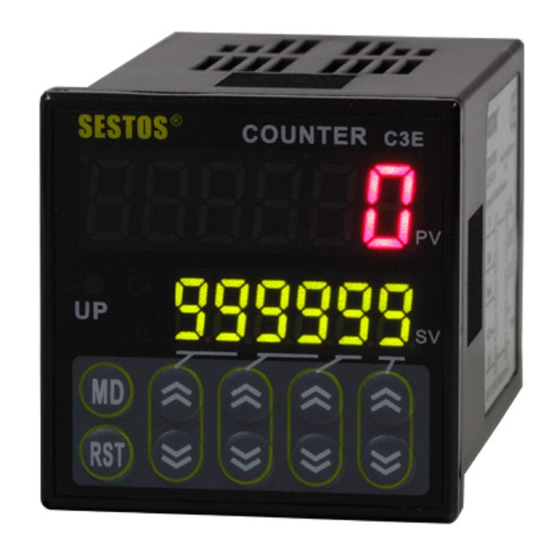

DIN(48X48mm) Digital counter
●
Range 1 - 999999with UP/DOWN mode, Max.10kpcs
，
● Preset scale range:0.001-99.999 preset scale count function
● MCU for digital control, High accuracy and reliability
● EEPROM store data for 10 years
● NPN and PNP input switchable
● 9.2mm height LED, prevent dazzle, highly visible display
Tact switch for up or down set value, easily operate
●
● Key lock function, prevent mistake operation
● Switching power supply and low consumption
SESTOS
※
Thank you very much for selecting products, Please read and understand this MANUAL
before using this unit.
！
This product must be mounted on the panel, avoid electric shock.
！ When the power is turned on, is not connecting the terminal, avoid electric shock.
● Ensure the product within the specification.
● Never disassemble, repair or modify the product, if needed please contact agent or us
●
Do not use the pro duct in locations subject to gases, dust, vibration, corrosive direct sunlight,
water and oil, strong EMI
●

Power and input:

The power supply and input circuit are isolated.
±
● Voltage(Ordering): AC 100-240V
AC/DC 12-24V
Character : PV: 6 digital 9.2mm height, high light red LED
●
SV: 6 digital 7.0mm height, high light green LED

Contact output

: AC 250V 3A(Resistive load) NO/NC
● (C3E-R)

SSR output

(C 3E-V) : DC12V(Max.40mA)
● Life expectancy: Mechanical: 10,000,000 operations min.
Electrical: 100,000 operations min.
● Max.counting speed: 10kpcs(Rate 1:1),100Hz,5KHz,10KHz
●

Preset scale range:

0.001-99.999
● Data backup: 10 years,Data can be store or not by setting
≥
● Control signals: 5ms (Reset, Gate)
●

Control/Input type:

Contact/No-voltage input(NPN)/ Voltage input(PNP)
●

Input level:

High(logic) 4.5 t o 30 VDC
Low(logic) 0 to 2.0 VDC
● External power: DC 12V/50mA(Max.) for sensor use only.
≥
● Start timing: 100ms
Reset method: Power on/External/Manu al
●
● Cutout size: 45X45 mm
● Mounting Method: Flush mounting and screw terminals
Weight: Approx. 120g
●
～
Ambient temperature: Operating: -10 55
●
～
Storage: -25 65
～
● Ambient humidity: 35 85% RH
Indicator:
U P
: Output
MD
:M ode
: Light--Reset; Blink--P ause
RST
:Reset
: Key Lock
:Up
:Down MD
:Pr esent Value
RST
:Set Value
SESTOS
Model: C3E
≤
10% 50/60Hz 5VA
± ≤
10% 4VA
℃
(with no icing or condensat ion)
℃
(with no icin g or condensation)
SESTOS
TM
COUNTER
UP
MD
RST
Fig 1
TM
6 5 4 3 2 1
MD
RST
4 3 2 1

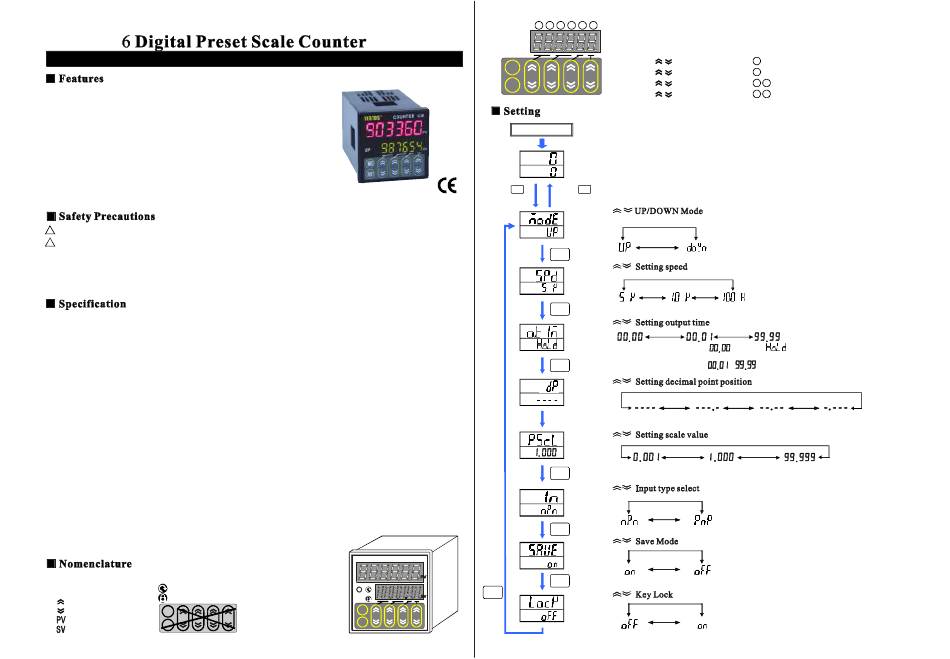

Power On
PV
SV
MD MD
Press Press
key over 3s key over 3s
Input Mode
MD
Counter
speed
MD
Output time
(second)
MD
D.P.position
Preset scale
MD
Input select
MD
Save PV
and state
C3E
MD
M D
Key Lock
：
1
Group 1 key setting digital
： 2
Group 2 key setting digital
： 3 4
Group 3 key setting digital
：
5 6
Group 4 key setting digital
＊
1.Change the run mode to setti ng mode the operation is continuous.
＊
2.Retu rn to the run mode and automatic reset when change the
function setting .
＊ ︽ ︾
3.When function mode ,four " " and " " key are same function.
If no change the setting return to the run mode after 60 second, and
the setting is saved same time automatic reset.
：
UP UP Mode
：
DOWN Down Mode
（
5KHz 10KHz 100Hz Max.counter speed
1.When output time set to ,display and self-holding output until
reset signal.
2.When output time set to -- s; Automatically reset after time is up.
（ ） （ ） （ ）
DP 0 DP 1 DP 2
Range :0.001-99.999 (decimal point position is fixed)
NPN: No-voltage input
PNP: Voltage input
ON : Save the PV and state when Power off
OFF: Not save the PV and state when power off
OFF: Unlock
、 ︽︾
ON: Lock RST
）
（ ）
DP 3
key (See fig 1)
