BA R LO W T Y R I E
P
avilions

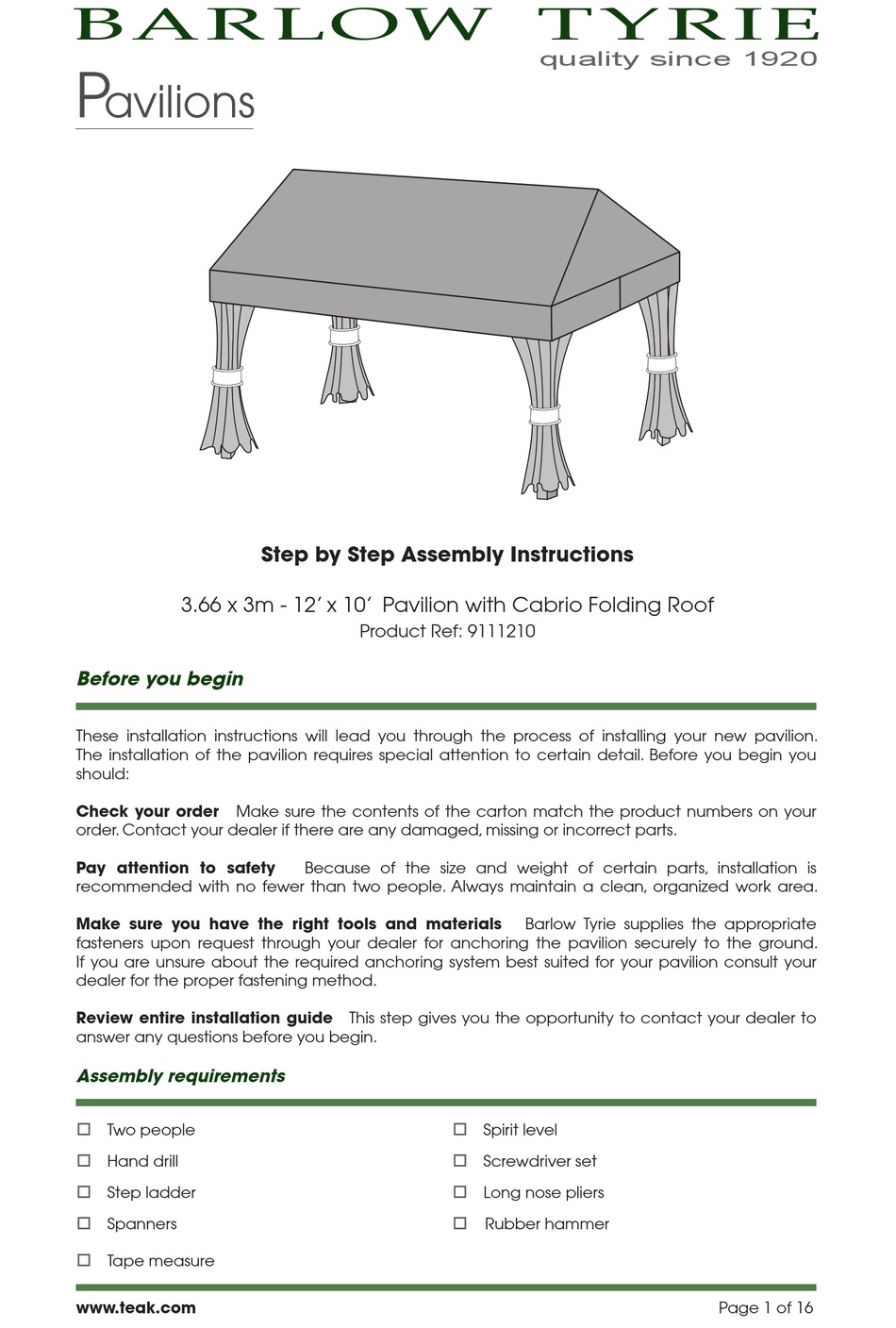

3.66 x 4.5m - 12' x 15' Pavilion Shelter with Double Rail Beams
3.66 x 3m - 12' x 10' Pavilion with Cabrio Folding Roof
Before you begin
These installation instructions will lead you through the process of installing your new pavilion.
The installation of the pavilion requires special attention to certain detail. Before you begin you
should:
Check your order
Make sure the contents of the carton match the product numbers on your
order. Contact your dealer if there are any damaged, missing or incorrect parts.
Pay attention to safety
recommended with no fewer than two people. Always maintain a clean, organized work area.
Make sure you have the right tools and materials
fasteners upon request through your dealer for anchoring the pavilion securely to the ground.
If you are unsure about the required anchoring system best suited for your pavilion consult your
dealer for the proper fastening method.
Review entire installation guide This step gives you the opportunity to contact your dealer to
answer any questions before you begin.
Assembly requirements
Two people
Hand drill
Step ladder
Spanners
Tape measure
www.teak.com
Step by Step Assembly Instructions
Ref: 9011215
Step by Step Assembly Instructions
Product Ref: 9111210
Because of the size and weight of certain parts, installation is
quality since 1920
Barlow Tyrie supplies the appropriate
Spirit level
Screwdriver set
Long nose pliers
Rubber hammer
Page 1 of 16
Advertisement
Table of Contents
Related Manuals for BARLOW TYRIE 9111210
Summary of Contents for BARLOW TYRIE 9111210
- Page 1 Always maintain a clean, organized work area. Make sure you have the right tools and materials Barlow Tyrie supplies the appropriate fasteners upon request through your dealer for anchoring the pavilion securely to the ground.
-
Page 2: Assembly Overview
Assembly overview BA R LO W T Y R I E quality since 1920 www.teak.com Page 2 of 16... -
Page 3: Part List
Part list BA R LO W T Y R I E quality since 1920 Beam 3 mtrs 10 feet (roof hinge side) Beam 3.66 mtrs 12 feet (transverse side) Triangular Corner Post Corner Post Cover Full Length Lever Arm Dummy Lever Arm Transverse Roof Support (no grove) Cross-Sectional View Transverse Roof Support (with grove) - Page 4 Part list BA R LO W T Y R I E quality since 1920 SKC.03-1 KC.06 Tab Washer 1/4”-20 Carriage Bolt - 5/16” x 2” 1/4” Flat Washer 5/16” Flat Washer 1/4” Lock Washer 5/16” Nylon Lock Nut Hex Bolt - 1/4”-20 x 5/8” Roof Hinge Cover Screw #10-3/8”...
-
Page 5: Getting Started
Getting started BA R LO W T Y R I E quality since 1920 ( AL005 ) Secure the base plates to the bottom of each ( P1 ) ( 002 ) of the aluminium corner posts using metal bolts as shown in the diagram. - Page 6 Assembling the roof BA R LO W T Y R I E quality since 1920 Use a Rubber Hammer & ( PL007 ) Install the plastic corner inserts at each end of the transverse PL007 ( T1 ) ( T2 ) roof supports as shown in the figure above.
- Page 7 Assembling the roof framework BA R LO W T Y R I E quality since 1920 Lay the trusses on top of the beam assembly in the order and orientation shown by the diagram above. Consult views B-B, C-C, D-D and E-E for specific detail. Then turn to the next page for a description on how to fix each trusses to the hinges.
- Page 8 Assembling the roof framwork BA R LO W T Y R I E quality since 1920 Install the trusses on the hinge using hardware shown in views B-B. Notice that only one side is shown. Repeat this step on the other hinge. KC.02L See Through View...
- Page 9 Installing the corner posts BA R LO W T Y R I E quality since 1920 Flat Washer Lock-Nut View G-G View G-G (TOP VIEW) ( P1 ) Attach one of the four corner posts to each corner of the structure using hardware shown in the top right diagrams.
- Page 10 Anchoring the pavilion BA R LO W T Y R I E quality since 1920 Make sure the structure is well aligned and levelled with the floor as shown in the diagram below. Consult the section below for recommendations on the type of anchorage required for fixing the structure on the floor.
- Page 11 Anchoring the pavilion BA R LO W T Y R I E quality since 1920 Permo Lock Anchoring System ® coupling Packaging Contents One Permo Lock anchor comes preassembled and ready to use bolt as shown on the right. Verify that the rod end is flush with the end of the anchor.
- Page 12 Final frame assembly BA R LO W T Y R I E quality since 1920 Remove the guide PL012 after installing the fork. PL01 1 View H-H View H-H (step b) (step a) ( T4 ) Install the plastic fork on the truss assembly on the opening side.
-
Page 13: Top View
Final frame assembly BA R LO W T Y R I E quality since 1920 Install the lever strap on the end of the lever arm using hardware shown in the left diagram. ( PL013 ) Then install the plastic cap on the end of both the lever and dummy lever arm. -
Page 14: Side View
Installing the roof fabric BA R LO W T Y R I E quality since 1920 Install the roof fabric cover over the frame assembly SIDE VIEW with roof trusses down. Make sure that all 4 corners of the roof fabric are aligned properly. View K-K View L-L View J-J... - Page 15 Installing the curtains BA R LO W T Y R I E quality since 1920 PL101 Plastic Pulley Snap Pulley in place Curtain Metallic Exterior Side Eyelet Curtain (Exterior Side) Zipper (Interior Side) Profile View ( PL101 ) Install plastic pulleys by snapping them in each metallic curtain eyelet.
- Page 16 . If you have purchased optional curtains (mosquito netting, transparent plastic or acrylic fabric) install them on the inside rail of the beams. Barlow Tyrie Limited Braintree Essex CM7 2RN England t: + 44 (0)1376 557 600...
