Ultimate Support JAMSTANDS JS-SRR100 Setup Instructions

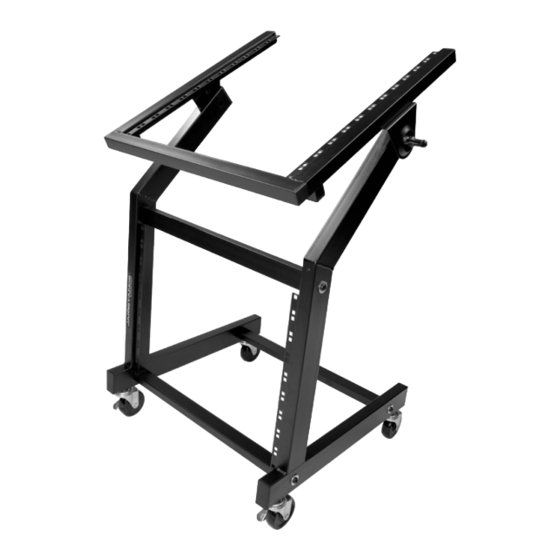

On stage, behind the board, or in the studio, sometimes you need your rack to roll with you. The Rolling Rack Stand easily accommo-
dates, boasting an 11U-over-8U rack on casters, two of which lock to keep your rack from rolling away. The top section is angle-
adjustable for convenience, and the frame is built from rugged steel for durability.

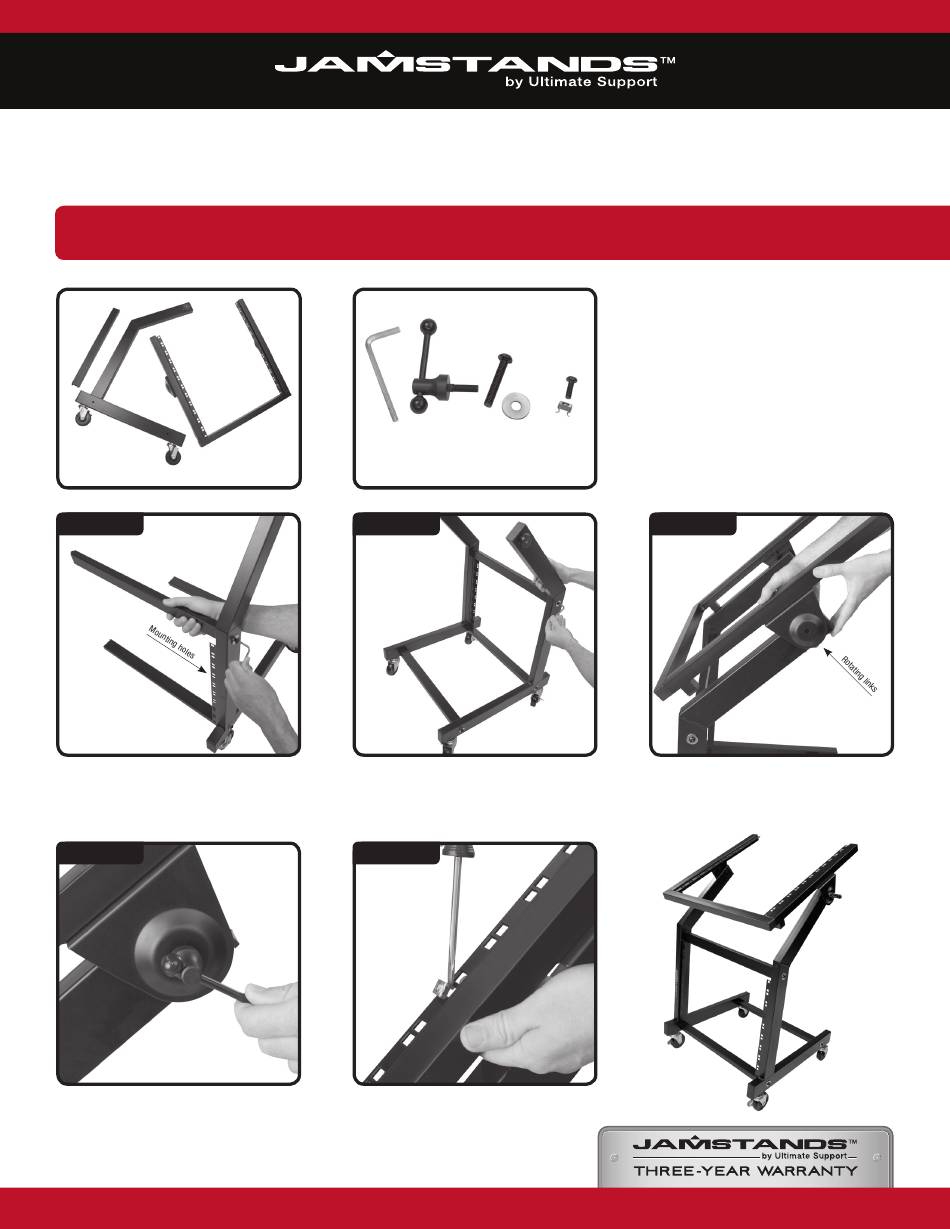

SETUP INSTRUCTIONS — JS-SRR100
A.
C.
B.
STEP 1.
1. Using large screws, washers, and allen wrench
attach all three cross bars to one of the side
angle bars with wheels. Make sure mounting
holes are on the inside.
STEP 4.
4. Screw in tightening knobs to both sides. These
are used to adjust top rack to desired angle.
R. 1, 08/31/10, JAM-HT_JS-SRR100
5836 Wright Drive Loveland, CO 80538
•
E.
F.
G.
D.
STEP 2.
2. Line up all three cross bars with other side and
hand tighten large screws with washers. After
all three bars have been attached use an allen
wrench to finish tightening.
STEP 5.
5. Use a flat head screw driver too attach
mounting brackets. Use small screws to
attach equipment to mounting brackets.
Phone. 1-800-525-5628
• •
PARTS INCLUDED :
A. ( 3 ) Cross bars
B. ( 2 ) Side angle bars with wheels
C. ( 1 ) Top rock
D. ( 1 ) Allen wrench (Tool)
E. ( 2 ) Tightening knobs
F. ( 6 ) Large screws
H.
G. ( 6 ) Washers
H. - Bag of small screws & mounting clips
STEP 3.
3. Attach top rack to assembled rack by lining up
rotating links over each other. Start with one
side and snap the other into place.
Fax. 970.776.1941 Web. w w w.ultimatesuppor t.com
•
Setup Instructions - JS-SRR100
