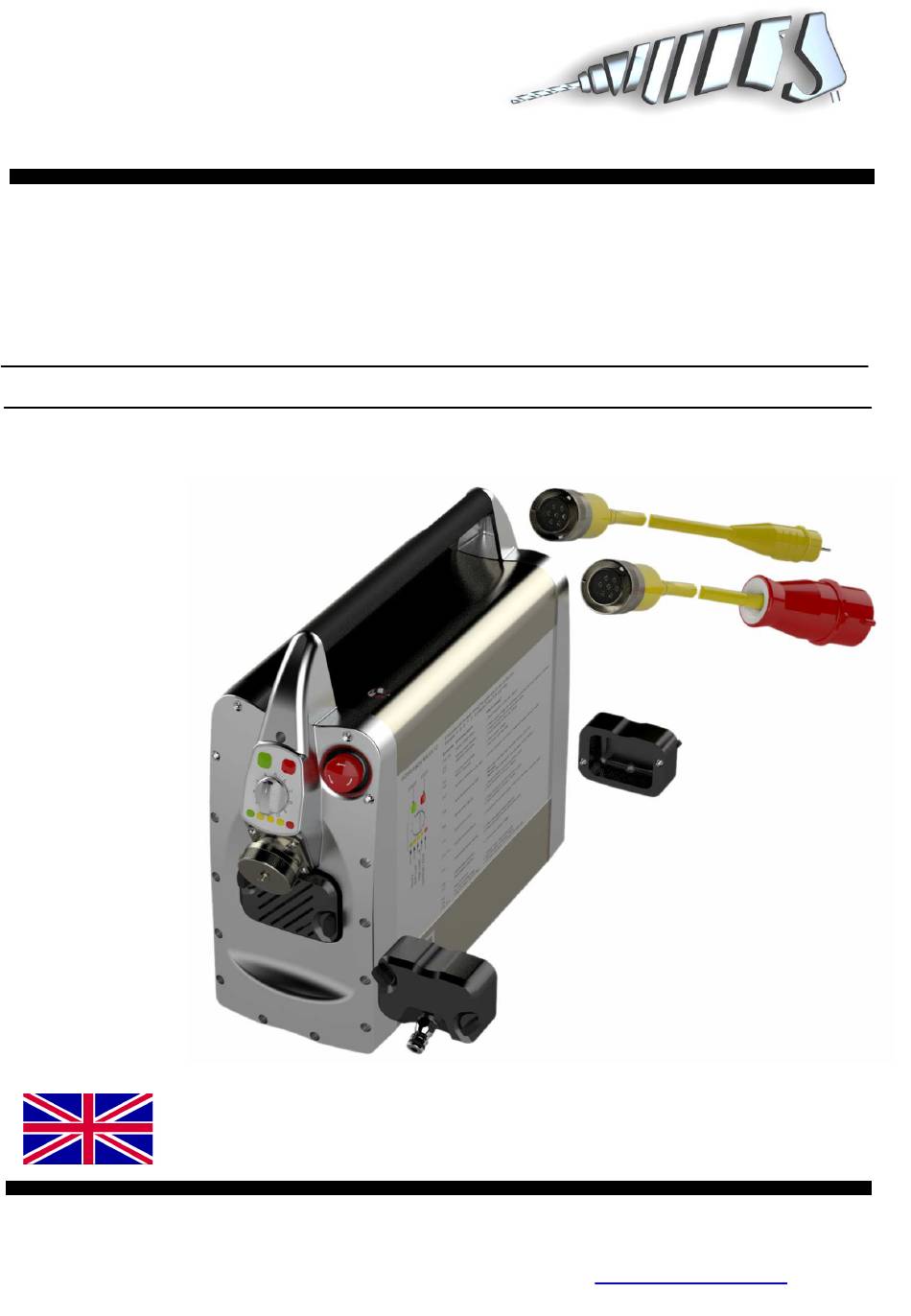

DR. BENDER
GmbH
Innovative Power Tools
Operating Manual

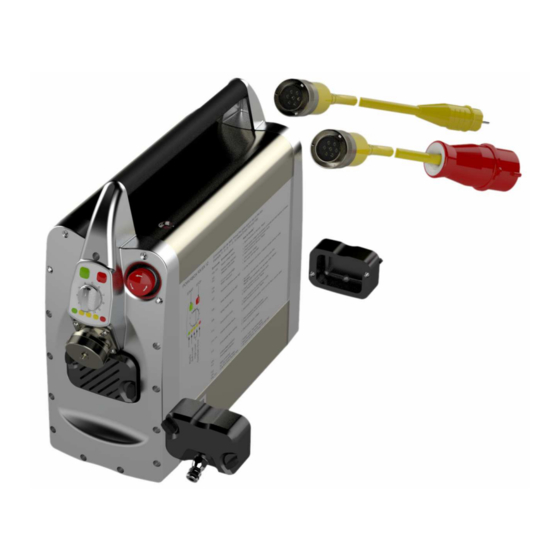

PB RX / SX 12
Powerbox
HF III
Issued 05.2017
PB RX / SX 12
Art. no. 102405
Subject to change
Alle Rechte vorbehalten / All rights reserved
DR. BENDER
GmbH • D-75382 Althengstett • Tel 07051-9291-0 • Fax 07051-9291-91
info@dr-bender.de
We are on the internet at http://www.dr-bender.de
• email:
Advertisement
Table of Contents
Summary of Contents for DR. BENDER PB RX/SX 12
- Page 1 DR. BENDER GmbH Innovative Power Tools Operating Manual PB RX / SX 12 Powerbox HF III Issued 05.2017 PB RX / SX 12 Art. no. 102405 Subject to change Alle Rechte vorbehalten / All rights reserved DR. BENDER GmbH • D-75382 Althengstett • Tel 07051-9291-0 • Fax 07051-9291-91 info@dr-bender.de...
-
Page 3: Declaration Of Conformity
EN 50144-1 EN 50144-2-1 EN 55014-1 EN 61000-3-2 EN 61000-3-3 EN 55014-2 EN 61029-1 Authorised Person for Documentation: Min Wei c/o Dr. Bender GmbH Industriestrasse 22 75382 Althengstett Deutschland DR.BENDER GmbH Althengstett, 30.07.2018 Industriestraße 22 D-75382 Althengstett Tel. 07051/9291-0, Fax 07051/9291-91 Min Wei, Managing Director This Declaration does not include Assurance of Product Properties. -
Page 4: Table Of Contents
Acknowledge a fault Powerbox operating concept Powerbox fault processing Fault codes 5.10 Automatic shut-off in the event of overload Safety instructions Repair and maintenance Daily maintenance Quarterly Warranty General Safety Instructions 10.0 Spare parts lists 10.1 Powerbox PB RX/SX 12... -
Page 5: Symbol And Pictogram Description
Attention The safety instructions included in this operating manual must be followed! Custom models and design variants may deviate from the basic type in technical details. In the event of any discrepancies, we recommend that you contact DR.BENDER GmbH urgently. Always give the machine type and machine number in any correspondence. - Page 6 Safety signs on the machine Wear safety shoes Wear gloves Wear a safety helmet Wear protective goggles Wear ear protection Wear a breathing mask Pull the power plug before work on the device Read the instructions...
-
Page 7: Function Description
Function description Mains connection Carry handle 230 V / 802343 Start button Mains connection 400 V / 802267 Water Speed control cooling Overload indicator LEDs Operating and fault code indicator Connection Motor Emergency stop button Stop button cooling Service Water Interface cooling... -
Page 8: General Instructions
General instructions Technical description The BELUGA SXM with the Powerbox PB RX/SX12 represents a whole new generation of drive units for stone cutting. The exceptionally comprehensive modular system offers the flexibility needed today when performing cutting work in concrete and stone. To achieve this, newly developed high-frequency motor parts are used in the motor. -
Page 9: Safety
Safety Warning Before commissioning, check that the mains voltage and frequency match the data given on the information plate. ± 5 % voltage and/or ± 2 % frequency deviation are permitted. Repairs may only be performed by suitably qualified staff based on their training and experience. In performing repairs, pay particular attention to: the technical data and information on the permitted use (commissioning, standard operating conditions), which are included e.g. -
Page 10: Main Dimensions And Technical Data
Main dimensions and technical data Dimensions Technical data Rated voltage 230 V Current rating Power consumption 3,700 Rated voltage 400 V Current rating Power consumption 12,000 Frequency 50 – 60 Degree of protection IP 67 Cooling medium Air / Water Weight 16.5 Operating temperatures... -
Page 11: Commissioning
Commissioning Setting up Set up the Powerbox at a distance suitable for your work on a level surface, so that you can work comfortably without the risk of tripping over the Powerbox. Mains connection Attention Check whether the mains voltage matches the voltage given on the information plate. -
Page 12: Operating The Powerbox
Operating the Powerbox After applying the voltage when the motor is connected, the Powerbox reads the motor type as well as the input voltage and configures the drive system accordingly. As soon as this action is completed, the Powerbox will switch to standby, which is indicated by a flashing green LED on the control panel of the Powerbox. -
Page 13: Reversing The Rotation Of The Motor
Emergency stop button If sudden danger occurs, the system can be shut down by pressing the emergency stop button on the front of the Powerbox. This action can also be performed by a third person. It is therefore important to always set up the Powerbox at some distance from the work area. -
Page 14: Powerbox Operating Concept
Powerbox operating concept. Power on Motor connected Standby green 500 ms Green button on box on / ready green LED on... -
Page 15: Powerbox Fault Processing
Powerbox fault processing Wait for fault Shut off drive and stop control unit Red LED flashes Wait for green button on Powerbox or automatic reset Clear fault Jump to standby... -
Page 16: Fault Codes
Fault codes Fault code Fault description Troubleshooting F00, F01 Power supply fault Bring box for repair Check power supply for: Phase failure - completeness of phases - load capacity of phases Check the motor connectors for dirt and Open circuit on motor damage Bring box for repair Overvoltage in DC link... -
Page 17: Safety Instructions
Safety instructions Attention The units must be attended when in use. Disconnect the mains plug and check that the switch is disabled, if the units remain unattended during assembly and disassembly in the case of a voltage dip (below 200V or below 340V), if the mains voltage fluctuates (phase imbalance) or in case of interruption of a phase (phase failure), For adjusting or fitting an accessory. -
Page 18: Repair And Maintenance
Repair and maintenance Warning Always disconnect from the mains before starting repair or maintenance work. After any repair, the unit must be checked by a qualified electrician (legal requirement pursuant to VBG4 since 1.1.1990). Daily maintenance Check that no water is leaking out of the unit. This may impair the electrical safety of the unit. In this case, please contact an authorised service centre. -
Page 19: Warranty
Warranty Pursuant to our Terms & Conditions of Sale, we offer a warranty of 12 months from the date of purchase. This covers the free repair of material and production defects which are shown to have been caused prior to sale. An original sales receipt must always be produced when asserting a warranty claim. -
Page 20: 10.0 Spare Parts Lists
10.0 Spare parts lists 10.1 Powerbox PB RX/SX 12... - Page 21 Item Part no. Description Item Part no. 102405 Control box 301509 Switching handle 102080 Housing plate complete 901161 Threaded pin 102081 Housing plate 800092 O-ring 1 ** 401743 Seal 1 ** 802593 Emergency stop button compl. 1 800391 Sealing ring 1 ** 802255 Emergency stop button...
