Read instructions thoroughly before attempting installation!
This document outlines the basic steps necessary to electrically connect your Bluetooth (BT) Audio kit to
the Saunalogic² control package (required to operate this kit, sold separately).
Note: The BT-2 should be mounted outside of the sauna in an area free from moisture,
electrical interference or metal obstructions that could reduce the range of the BT antenna,
which is built into the BT-2 box.
Note: The speakers are heat and water resistant but care should be taken to avoid mounting
directly above the sauna heater.
Mounting your speakers over benches, in the back wall (under the upper bench) or inside wooden speaker
enclosures are acceptable mounting options and will provide the best sound. The speakers will require a
3-7/8" diameter clearance hole with a minimum of 1-3/4" of depth.

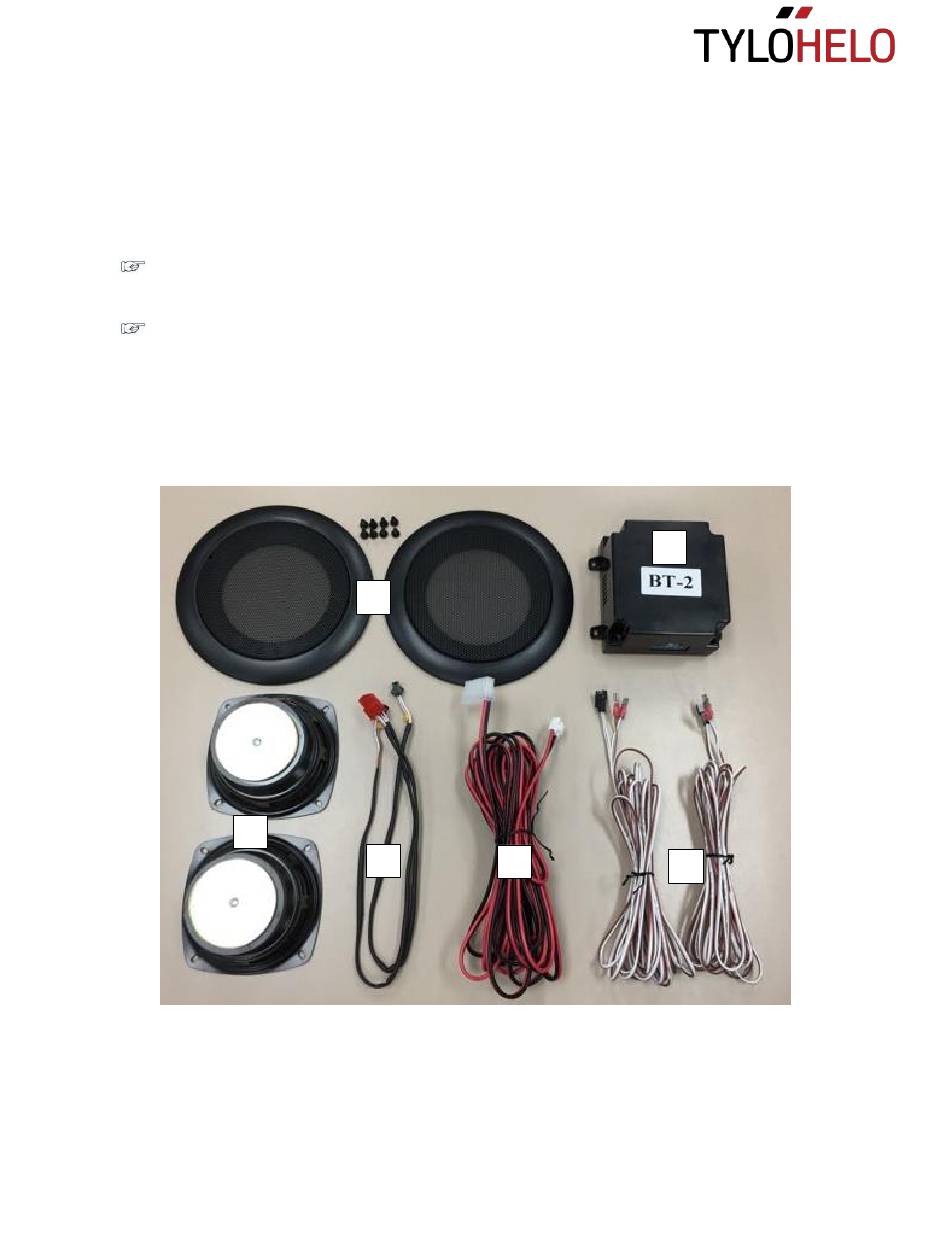

Verify contents of kit:
1
1. Speaker (qty 2)
2. Speaker Covers with 4/ea mounting screws (qty 2)
3. BT-2 Bluetooth box w/ mounting screws (not shown)
4. Speaker cables, 18' (qty 2)
5. Power Cable, 18'
6. Y-output cable
9252-060
73-0119 Rev. 1
Installation Instructions
Bluetooth Audio Kit for Saunalogic²
2
6
TyloHelo Inc
Page 1 of 7
3
5
4
04/17/19
DS
Advertisement
Table of Contents
Summary of Contents for TyloHelo BT-2
- Page 1 Saunalogic² control package (required to operate this kit, sold separately). Note: The BT-2 should be mounted outside of the sauna in an area free from moisture, electrical interference or metal obstructions that could reduce the range of the BT antenna, which is built into the BT-2 box.
- Page 2 Hint: Mounting the speaker to the trim ring, with the screws before putting in the ceiling will make it easier to mount if you are by yourself. 9252-060 TyloHelo Inc 04/17/19 73-0119 Rev. 1 Page 2 of 7...
- Page 3 Connect the other end of the speaker wires to the “Y” harness that will be connected to the BT-2 box shown in the next step. The wire leads from the right speaker should be connected to the “Y” harness wire number 1. The left speaker leads to “Y” harness wire number 2.
- Page 4 BT-2 box: The BT-2 box has two plug receptacles located on its sides. Plug the “Y” cable with the red connector to the smaller receptacle on the side of the box. Plug the Power cable’s large connector to the large receptacle on the other side of the box.
- Page 5 The opposite end of the red/white power cable has a small white connector that is to be plugged into the main PCA board, position CN-6 located inside the Saunalogic² contactor box, (CB-13 or CB-14). This connection will provide power to the BT-2 box whenever the Bluetooth button is selected on the Saunalogic² touch screen.
- Page 6 9252-060 Warranty TyloHelo Inc. will warrant any component of the Saunalogic² Bluetooth Audio System for a period of 1 year from date of purchase when used as instructed in a sauna environment and connected to a Saunalogic² control system. Any other use may void the warranty. Contact TyloHelo Technical Support for warranty or installation assistance.
