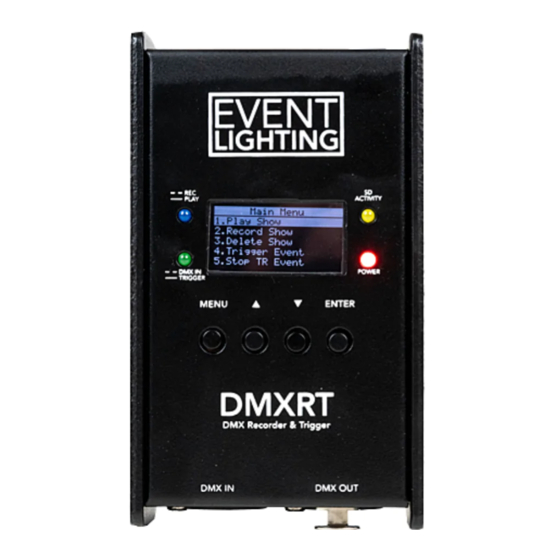

DMXRT
DMX Trigger Recorder
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Advertisement
Table of Contents
Related Manuals for Event Lighting DMXRT
Summary of Contents for Event Lighting DMXRT
- Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 www.event-lighting.com.au Version 1.0 Safety Instructions Warning • Do not open this device, there are no user serviceable parts inside. Risk of electric shock. • Do not operate this device outdoors where excessive dust, heat, water, or humidity may affect it. •...
- Page 3 Product Overview DMXRT is a DMX recorder and trigger which can be used to store and playback any show or scene from a micro SD card. They can be played by 6 external triggers or the built-in internal trigger. DMXRT can play shows or scenes a single time, or continuously in a loop, and can also implement advanced features such as a delay, giving you complete control of the playback.
- Page 4 Product Operation Connect the following cables to DMXRT before connecting to power: • Connect a DMX Trigger device using a RJ45 cable. • Connect a DMX Controller using a 3-pin DMX cable. • Connect a DMX-enabled fixture using a 3-pin DMX cable.
- Page 5 www.event-lighting.com.au • Start playback by pressing Enter while Start Play is highlighted. Press Enter again to stop playback. Playback will also stop automatically after the show is over if One Play mode is selected. Only one show can be played at a time. While playing, external triggers and other active triggered shows will be disabled.
- Page 6 www.event-lighting.com.au 4. Mode. Set the trigger mode. Press Up/Down to select between the available modes, and press Enter to confirm. The available modes are: a. NO_TR: Normally Open. The trigger will be activated when the circuit is closed. The show will be played in a loop until the circuit is opened again, upon which it will stop when the current playback is complete.
- Page 7 Menu to cancel. Press Enter while Del is highlighted to delete the selected configuration file Default Setting Restore DMXRT to factory settings. This will return all options to factory defaults. Saved shows and configuration files will not be deleted. Press Up/Down to select from the available options, and press Enter to confirm: •...
- Page 8 Warranty Please refer to your local dealer or contact Event Lighting.
