Nitto Seiko HC100 Operation Manual

Control box for arm driver with position check function
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Think solution.

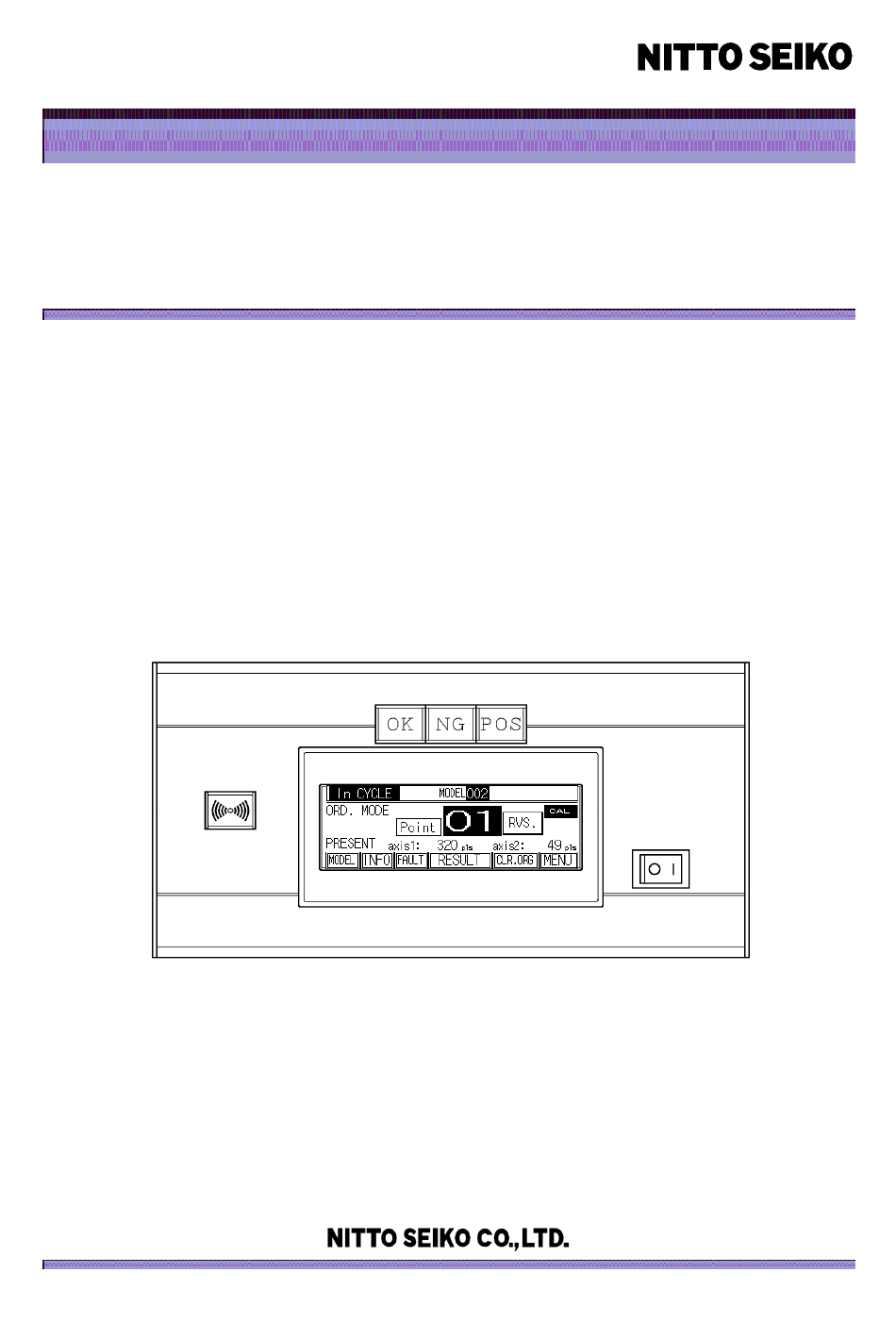

Control Box for Arm Driver
with Position Check Function
<HC100>
OPERATION MANUAL Ver. 1.21
b
(For System Ver. 4.00a)
