PNI BT-MIKE 7500 Fast User's Manual

Bluetooth earphone with microphone with ptt, dual channel
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Ghid rapid de utilizare
RO
Casca Bluetooth cu microfon
PNI BT-MIKE 7500 cu PTT, dual channel
Casca cu Bluetooth PNI BT-MIKE 7500 utilizeaza tehnologia
Bluetooth V3.0 care asigura conexiune fara interferente,
transmisie rapida si o calitate a vocii mai buna.

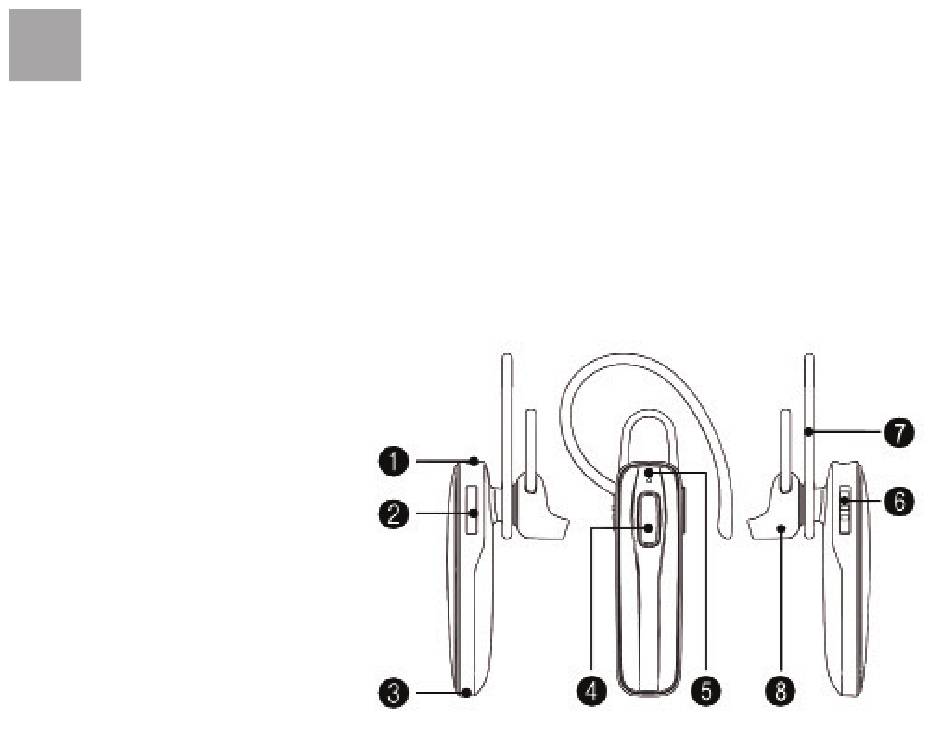

Descriere dispozitiv:
1. Port incarcare
2. Tasta PTT
3. Microfon
4. Volum/Raspuns
5. Indicator led
6. Comutator on/off
7. Suport ureche
8. Difuzor
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BT-MIKE 7500 and is the answer not in the manual?

Questions and answers

Summary of Contents for PNI BT-MIKE 7500

  • Page 1 Ghid rapid de utilizare Casca Bluetooth cu microfon PNI BT-MIKE 7500 cu PTT, dual channel Casca cu Bluetooth PNI BT-MIKE 7500 utilizeaza tehnologia Bluetooth V3.0 care asigura conexiune fara interferente, transmisie rapida si o calitate a vocii mai buna. Descriere dispozitiv: 1.
  • Page 2 Incarcarea dispozitivului: • Incarcati complet casca inainte de prima utilizare • Daca auziti un beep lung care se repeta la intervale de 15 secunde si indicatorul led devine rosu, inseamna ca dispozitivul este descarcat • Conectati incarcatorul la casca. Introduceti un capat al cablului de alimentare in portul microUSB din partea superioara a castii, iar celalalt capat in portul USB al unui computer sau adaptor 220V cu USB.
  • Page 3 Nota: Dupa ce dispozitivul s-a imperecheat cu alt dispozitiv Bluetooth, ledul albastru clipeste rar. Pentru a inchide dispozitivul, trageti in jos comutatorul de pe partea laterala (6). Procedura de imperechere BT-DONGLE 8001 cu castile Bluetooth BT-MIKE 7500: 1. Cand statia radio este oprita, conectati adaptorul BT-...
  • Page 4 2 minute, cand ledul incepe sa clipeasca alternativ rosu si albastru. 2. Porniti castile BT-MIKE 7500. Pentru a porni dispozitivul, impingeti in sus comutatorul de pe partea laterala. Indicatorul led clipeste alternativ rosu si albastru, semn ca dispozitivul a intrat in modul de imperechere.
  • Page 5 Bluetooth BT-MIKE 7500 si cu telefonul mobil: 1. Imperecheati BT-MIKE 7500 cu telefonul mobil: • Porniti castile BT-MIKE 7500. Pentru a porni dispozitivul, impingeti in sus comutatorul de pe partea laterala. Indicatorul led clipeste alternativ rosu si albastru, semn ca dispozitivul a intrat in modul de imperechere.
  • Page 6 2 minute, cand ledul incepe sa clipeasca alternativ rosu si albastru. • Porniti castile BT-MIKE 7500. Pentru a porni dispozitivul, impingeti in sus comutatorul de pe partea laterala. Indicatorul led clipeste alternativ rosu si albastru, semn ca dispozitivul a intrat in modul de imperechere.
  • Page 7 Bluetooth si telefon mobil sunt imperecheate. Pentru a emite apasati tasta PTT de pe casca. Conexiunea cu BT-Dongle/statia CB este prioritare in fata celei cu telefonul. Pentru a raspunde la telefon, apasati scurt tasta de volum. Pentru a regla volumul, apasati scurt tasta de volum. Casca are 4 nivele de volum.
  • Page 8 Fast user guide Bluetooth earphone with microphone PNI BT-MIKE 7500 with PTT, dual channel PNI BT-MIKE 7500 uses Bluetooth V3.0 technology which ensures uninterrupted connection, fast transmission and better voice quality. Device description: 1. Charging port 2. PTT button 3. Microphone 4.
  • Page 9 Charging the device: • Fully charge the headset before first use • If you hear a long beep that repeats every 15 seconds and the LED turns red, it means the device is being downloaded • Connect the charger to the headset. Insert one end of the power cord into the microUSB port on the top of the headset and the other end into the USB port of a computer or a 220V USB adapter.
  • Page 10 Note: After the device paired with another Bluetooth device, the LED flashes blue. To turn off the device, pull down the switch on the side (6). Pairing procedure between BT-DONGLE 8001 and BT- MIKE 7500 headset: 1. When the transceiver is in off stare, connect BT-DONGLE 8001.
  • Page 11 LED starts blinking alternately red and blue. 2. Turn on BT-MIKE 7500. To turn on the device, pull up the switch on the side. The LED blinks alternately red and blue, signaling that the device has entered pairing mode.
  • Page 12 Turn on Bluetooth function on your smart phone. The the Bluetooth devices list search for BT-MIKE 7500. 2. Turn off BT-MIKE 7500. To turn off the device, pull down the switch on the side. 3. Pair BT-MIKE 7500 with BT-DONGLE 8001: •...
  • Page 13 2 minutes when the LED starts blinking alternately red and blue. • Turn on BT-MIKE 7500. To turn on the device, pull up the switch on the side. The LED blinks alternately red and blue, signaling that the device has entered pairing mode.

  • Page 14: Technical Specifications

    In order to answer the phone, shortly press volume button. In order to set the volume, shortly press volume button. There are three volume levels. In order to start Siri ( IOS), Google Search( Android) you must shortly press PTT button. If SIRI ( IOS) is turned Off, Voice call will be accesed.
