Exchanging Ceramic Stone Gasolec S-Series infrared heaters.

1.Make sure all the remains of the old stone are removed and the surface is clean.

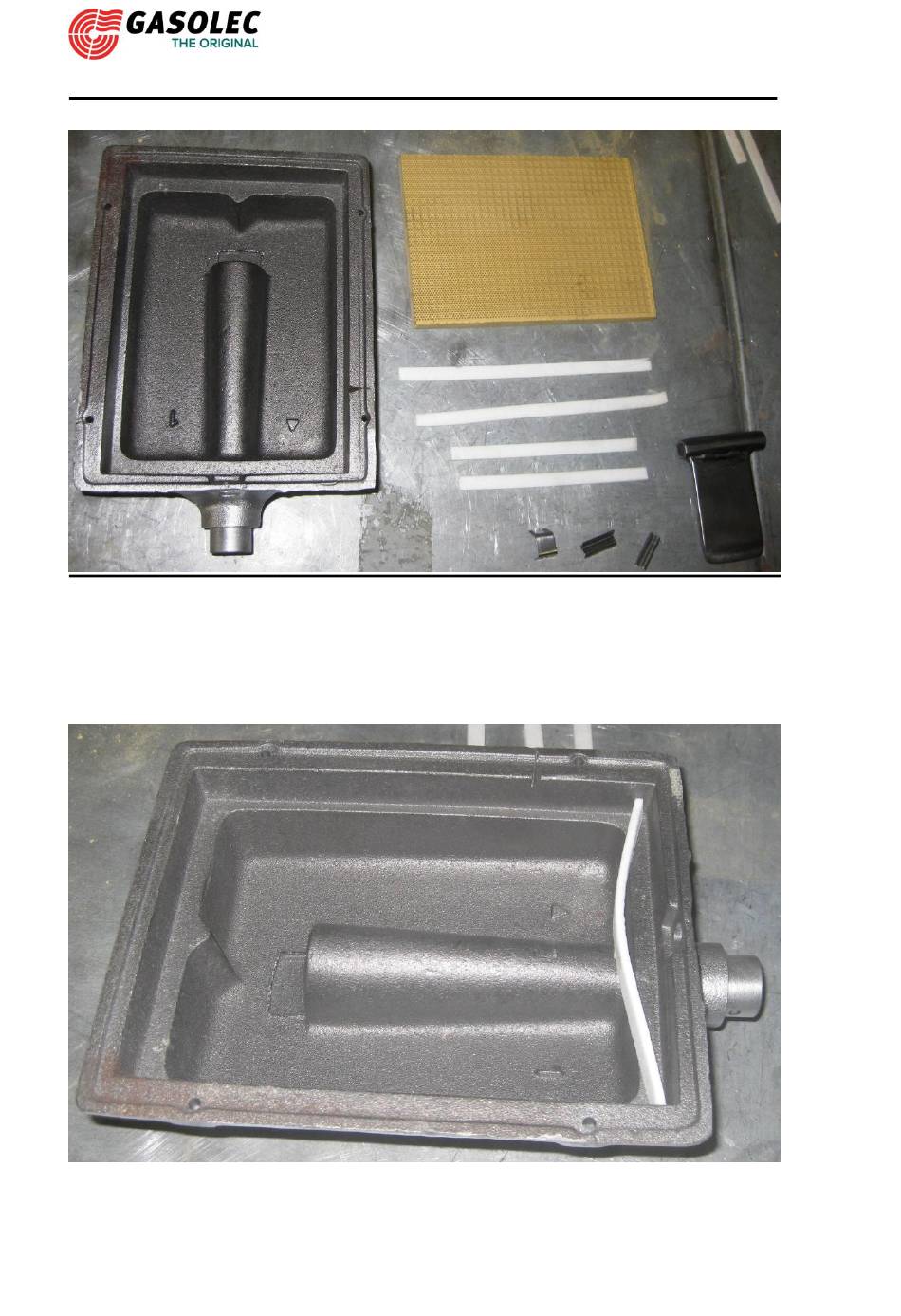

Prepare all the necessary parts like: stone, 2 clips, 2 frame lists long and 2 frame lists short.

Please note that on the ceramic stone the holes on two sides are closer to the edge then on

the other two sides. The sides with the holes closest to the edge is more fragile!

2. Place the short frame list in the short side of the of the burner house as shown on the

picture.

Exchanging Ceramic Stone Gasolec S-Type heaters - 15-06-2020.doc

1/4

Table of Contents

Need help?

Do you have a question about the S Series and is the answer not in the manual?

Page 1 The sides with the holes closest to the edge is more fragile! 2. Place the short frame list in the short side of the of the burner house as shown on the picture. © Gasolec Exchanging Ceramic Stone Gasolec S-Type heaters - 15-06-2020.doc...
Page 2 Make sure the tool used is strong and wide enough to have a large pressing surface otherwise the ceramic stone will be damaged !! Do NOT use a screwdriver! Ceramic stones are fragile so please be careful. © Gasolec Exchanging Ceramic Stone Gasolec S-Type heaters - 15-06-2020.doc...
Page 3 6. Press with the help of a tool the stone against the frame list creating a space for the last frame list and hold it in position with the other hand. © Gasolec Exchanging Ceramic Stone Gasolec S-Type heaters - 15-06-2020.doc...
Page 4 Afterwards the steel grid and the reflector ( the holes in the reflector should be on the opposite side of the gas inlet) can be placed and the screws tightened. © Gasolec Exchanging Ceramic Stone Gasolec S-Type heaters - 15-06-2020.doc...
