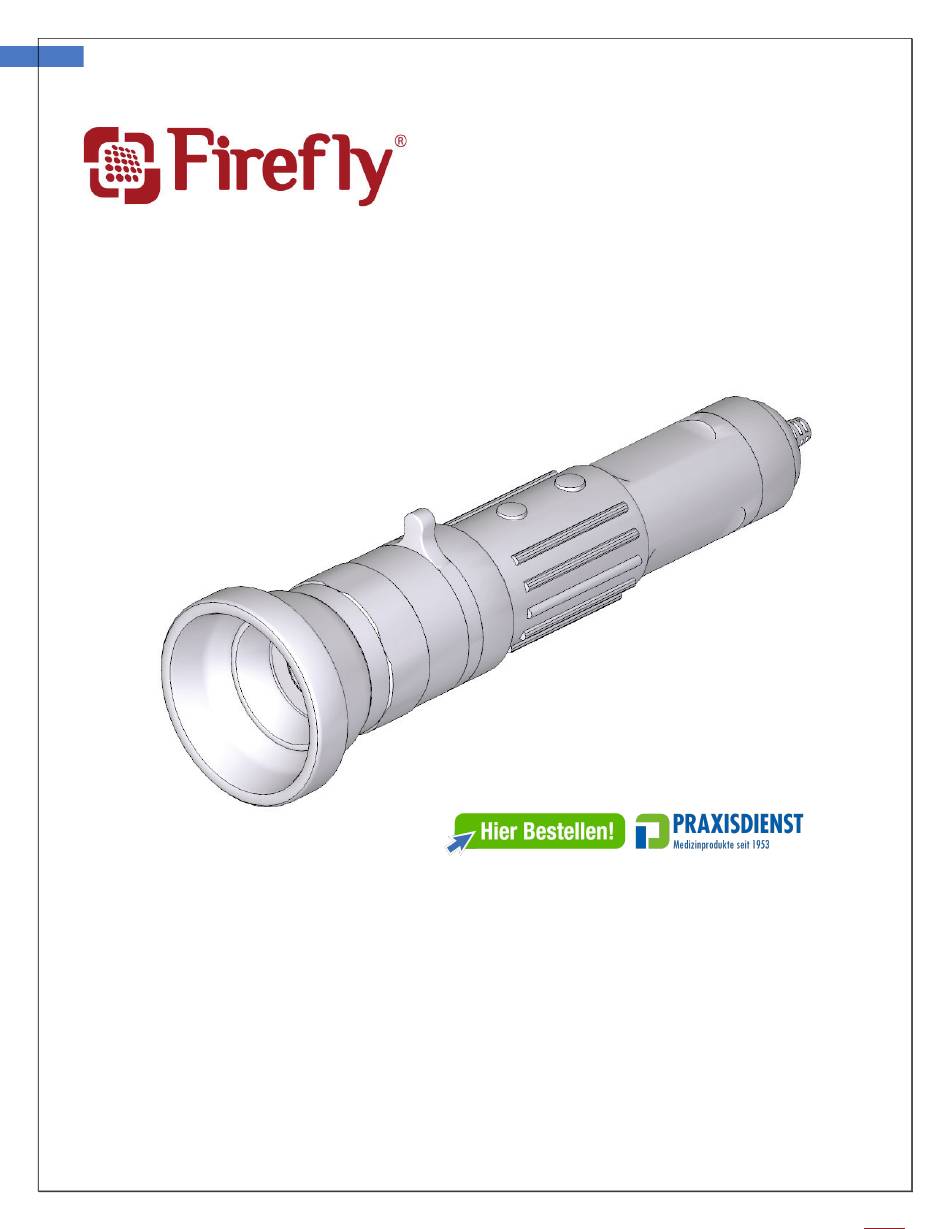

- Page 1 Firefly DE605 General Exam Camera Version: 1.5.1 DE605 User Manual ENERAL AMERA THANK YOU FOR SELECTING A FIREFLY GENERAL EXAM CAMERA To take full advantage of this product’s advanced capabilities, and to properly and safely use this product, please read the manual carefully.
- Page 2 Firefly Global (www.fireflyglobal.com). Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or indications for use published in this manual.
-
Page 3: Table Of Contents
Firefly DE605 General Exam Camera Version: 1.5.1 ABLE OF ONTENTS Table of Contents ......................3 Introduction ......................4 Warnings & Cautions ....................5 Warning ..........................5 Caution ........................... 5 Check List ........................7 Nomenclature ......................8 Operation ........................9 Powering on the device: ......................9 Brightness Control:........................ -
Page 4: Introduction
Firefly DE605 General Exam Camera Version: 1.5.1 NTRODUCTION The General Exam Camera consists of a digital general exam camera and software application. Only a computer equipped with a free USB port is needed to use the system. The General Exam Camera is designed for effective operation under a variety of conditions and typical video parameters are set at the factory. -
Page 5: Warnings & Cautions
In order to obtain optimum performance and ensure patient safety, thoroughly read this manual. Do not use the Firefly general exam camera system if you notice any signs of damage to the components of the system. Contact customer service for immediate assistance. - Page 6 Firefly DE605 General Exam Camera Version: 1.5.1 This product complies with current required standards for electromagnetic interference and should not present problems to other equipment or be affected by other devices. As a precaution, avoid using this device in close proximity to other equipment.
-
Page 7: Check List
Firefly DE605 General Exam Camera Version: 1.5.1 HECK Before starting, check that all the following items have been included with your General Exam Camera system. If anything is missing, contact your dealer. General Exam Camera... -
Page 8: Nomenclature
Firefly DE605 General Exam Camera Version: 1.5.1 OMENCLATURE Brightness Snap Shot (4 Settings) Variable Focus Polarizer... -
Page 9: Operation
Press and release the capture button to capture image frames. The system will generate a shutter sound from the PC speaker as confirmation. Variable Focus Control: The DE605 is equipped with a variable focus control. The variable focus controls give the option to focus on an object that is at infinity or in close proximity. Polarizer: The DE605 is equipped with an integrated polarizer feature. -
Page 10: Maintenance And Service
ERVICE Cleaning Recommendation: CAUTION The Firefly digital general examination camera is designed to provide years of service if it is maintained properly. Proper cleaning and gentle usage are critical to ensure that the device will continue to work reliably. The camera cannot be sterilized and should not be submerged in liquids or subjected to steam sterilization or other sterilization methods. -
Page 11: Service Policy
ERVICE OLICY All repairs on products under warranty must be performed or approved by Firefly or its authorized resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under warranty, any product repair shall exclusively be performed by Firefly-certified service personnel. -
Page 12: Specifications
Firefly DE605 General Exam Camera Version: 1.5.1 PECIFICATIONS Item Specification Weight Approximately 204 g (0.45 lb) Length: 17.8 cm (5.0 inches) Dimensions (approximate) Height: 5.0 cm ( 1.9 inches) Width: 5.0 cm (1.9 inches) Power USB 5VDC, 150mA Protection against ingress of water... -
Page 13: Limited Warranty
ARRANTY Limited Hardware Warranty (through distributors & resellers) Firefly Global hardware products come with a 1-year limited hardware warranty. The warranty is extended through Firefly Global authorized representatives and resellers. If you have a warranty claim, please contact the store, distributor, or website through which the product was purchased. - Page 14 How long does this limited hardware warranty last? The limited hardware warranty on all Firefly Global products begins on the date of the packing slip, invoice, or receipt. The warranty period is not extended if a warranted product or any parts are repaired or replaced.
- Page 15 Refurbished parts and systems are parts or systems that have been returned to Firefly Global, some of which were never used by a customer. All parts and systems are inspected and tested for quality. Replacement parts and systems are covered for the remaining period of the limited hardware warranty for the product you bought.
-
Page 16: Troubleshooting
Firefly DE605 General Exam Camera Version: 1.5.1 ROUBLESHOOTING Please visit the FAQ section of our website at http://www.fireflyglobal.com for the latest troubleshooting information and additional support. You can also contact us at support@fireflyglobal.com Monday through Friday 9:30 AM to 5:30 PM Eastern Time.
