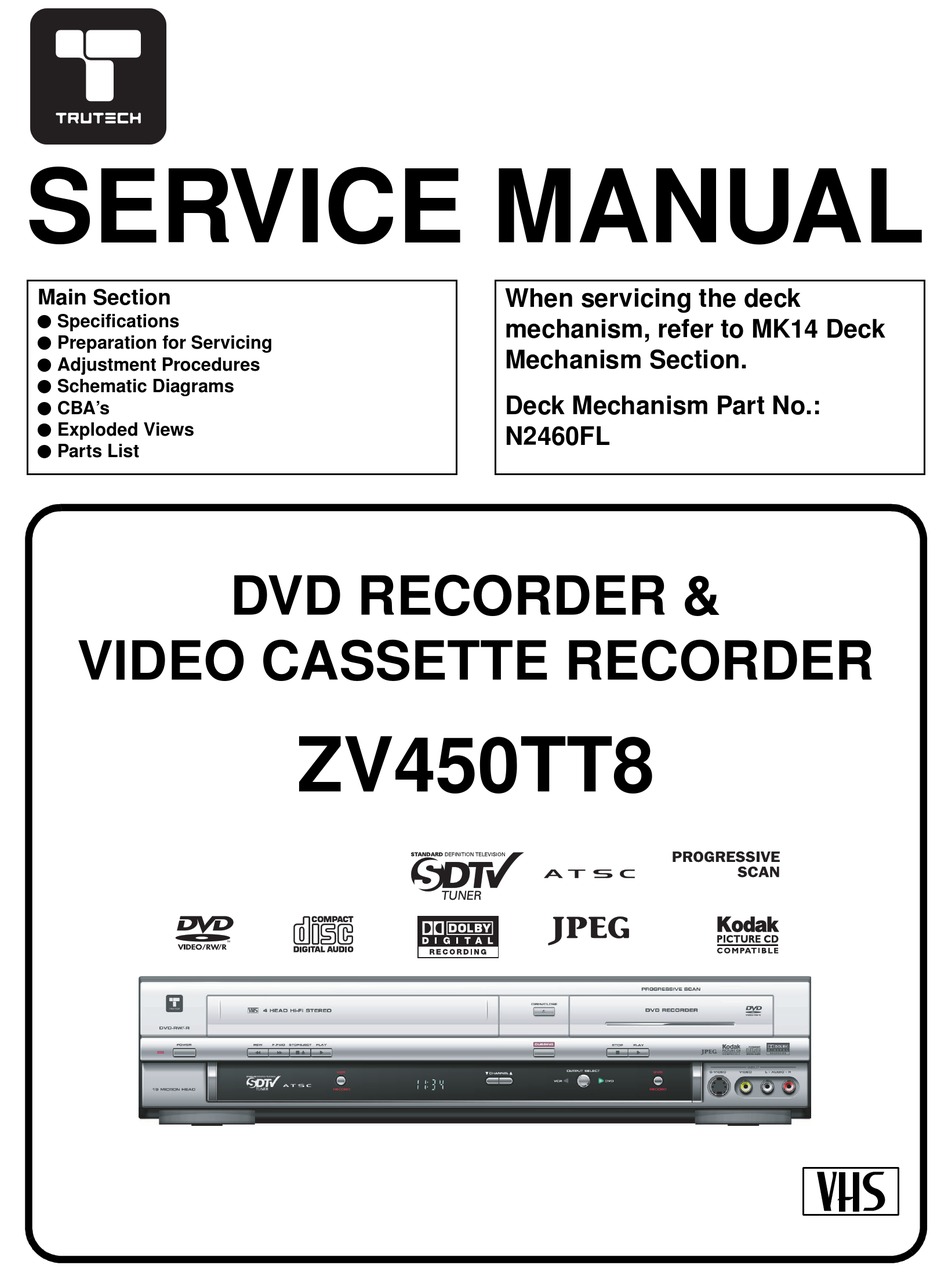

SERVICE MANUAL
Main Section
I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA's
I Exploded Views
I Parts List
VIDEO CASSETTE RECORDER
DVD RECORDER &
ZV450TT8
When servicing the deck
mechanism, refer to MK14 Deck
Mechanism Section.
Deck Mechanism Part No.:
N2460FL

Advertisement

Table of Contents
loading

Related Manuals for TruTech ZV450TT8

Summary of Contents for TruTech ZV450TT8

  • Page 1 When servicing the deck I Specifications mechanism, refer to MK14 Deck I Preparation for Servicing Mechanism Section. I Adjustment Procedures I Schematic Diagrams Deck Mechanism Part No.: I CBA’s I Exploded Views N2460FL I Parts List DVD RECORDER & VIDEO CASSETTE RECORDER ZV450TT8...
  • Page 2 IMPORTANT SAFETY NOTICE Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

  • Page 3: Table Of Contents

    MAIN SECTION DVD RECORDER & VIDEO CASSETTE RECORDER ZV450TT8 Main Section I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded Views I Parts List TABLE OF CONTENTS Specifications ................1-1-1 Laser Beam Safety Precautions .

  • Page 4: Specifications

    SPECIFICATIONS < VCR Section > Description Unit Minimum Nominal Maximum Remark 1. Video 1-1. Video Output (PB) Vp-p SP Mode 1-2. Video Output (R/P) Vp-p SP Mode, 1-3. Video S/N Y (R/P) W/O Burst 1-4. Video Color S/N AM (R/P) SP Mode 1-5.
  • Page 5 < DVD Section > ITEM CONDITIONS UNIT NOMINAL LIMIT 1. VIDEO 1-1. Video Output 75 ohm load Vp-p 1-2. S-Video Output Y (Luminance) 75 ohm load Vp-p 0.714 C (Chrominance) 75 ohm load Vp-p 0.286 1-3. Component Output Y (Luminance) 75 ohm load Vp-p 0.549...

  • Page 6: Laser Beam Safety Precautions

    LASER BEAM SAFETY PRECAUTIONS This DVD player uses a pickup that emits a laser beam. Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin. The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30 cm away from the pickup lens when the diode is turned on.

  • Page 7: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS Product Safety Notice Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder Some electrical and mechanical parts have special droplets, etc.) do not remain inside the set. safety-related characteristics which are often not K.
  • Page 8 Safety Check after Servicing Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety standards. 1.

  • Page 9: Standard Notes For Servicing

    STANDARD NOTES FOR SERVICING Circuit Board Indications Pb (Lead) Free Solder 1. The output pin of the 3 pin Regulator ICs is When soldering, be sure to use the Pb free solder. indicated as shown. How to Remove / Install Flat Pack-IC Top View Bottom View 1.
  • Page 10 3. The flat pack-IC on the CBA is affixed with glue, so With Soldering Iron: be careful not to break or damage the foil of each 1. Using desoldering braid, remove the solder from pin or the solder lands under the IC when all pins of the flat pack-IC.
  • Page 11 2. Installation With Iron Wire: 1. Using desoldering braid, remove the solder from 1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder the foil of each pin of the flat pack-IC on the CBA flux which is applied to all pins of the flat pack-IC, so you can install a replacement flat pack-IC more you can remove it easily.
  • Page 12 Instructions for Handling Semi- conductors Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

  • Page 13: Preparation For Servicing

    PREPARATION FOR SERVICING How to Enter the Service Mode About Optical Sensors Caution: An optical sensor system is used for the Tape Start and End Sensors on this equipment. Carefully read and follow the instructions below. Otherwise the unit may operate erratically. What to do for preparation Insert a tape into the Deck Mechanism Assembly and press the PLAY button.

  • Page 14: Cabinet Disassembly Instructions

    CABINET DISASSEMBLY INSTRUCTIONS 1. Disassembly Flowchart REMOVAL This flowchart indicates the disassembly steps to gain REMOVE/*UNHOOK/ LOC. PART Fig. access to item(s) to be serviced. When reassembling, UNLOCK/RELEASE/ Note follow the steps in reverse order. Bend, route, and UNPLUG/DESOLDER dress the cables as they were originally. Dust Cover D4 ---------- Rear Panel 6(S-6), 3(S-7), (S-8),...
  • Page 15 (4): Identification of parts to be removed, unhooked, unlocked, released, unplugged, unclamped, or desoldered. P=Spring, L=Locking Tab, S=Screw, (S-2) [3] Front Bracket CN=Connector *=Unhook, Unlock, Release, Unplug, or Desolder (S-2) e.g. 6(S-1) = six Screws (S-1), 5(L-1) = five Locking Tabs (L-1) (S-3) (5): Refer to “Reference Notes.”...
  • Page 16 (S-5) (S-5) CN502 (S-7) (S-5) (S-8) CN701 (S-6) CN101 [8] Rear (S-7) Panel Unit (S-9) [7] Dust (S-7) Cover hook [6] DVD Mechanism (S-9) & DVD Main [9] Tuner CBA Assembly CN2610 [10] DTV Module CBA UNIT CN2611 CN1102 Fig. D5 Fig.
  • Page 17 (S-12) (S-14) [15] Power Supply [17] D/T Bracket L (S-15) (S-15) (S-15) (S-16a) (S-12) (S-13) (S-17) (S-16a) [16] PCB Holder (S-16a) [18] VCR Chassis (S-16b) (S-18) Unit CN1101 Fig. D7 Fig. D8 1-6-4 E9H11DC...
  • Page 18 Cylinder Assembly FE Head ACE Head Assembly SW1512 LD-SW [19] Deck Assembly [20] Power [21] DVD Open SW CBA /Close SW CBA [22] Main CBA [19] Deck Assembly (S-19) Cam Gear [22] Main Hole Lead Shaft with (S-20) blue Desolder stripe Hole LD-SW...
  • Page 19 (S-21) (S-21) (S-21) (S-21) [23] Deck Pedestal [24] Front Bracket R (S-22) Fig. D10 1-6-6 E9H11DC...
  • Page 20 3. How to Eject Manually Note: When rotating the gear, be careful not to damage the gear. 1. Remove the Top Cover. 2. Remove the Front Assembly. 3. Remove the Front Bracket. 4. Remove the DVD Mechanism & DVD Main CBA Assembly. 5.

  • Page 21: Electrical Adjustment Instructions

    ELECTRICAL ADJUSTMENT INSTRUCTIONS General Note: “CBA” is abbreviation for Head Switching Position “Circuit Board Assembly.” Adjustment NOTE: Purpose: To determine the Head Switching position 1. Electrical adjustments are required after replacing during playback. circuit components and certain mechanical parts. Symptom of Misadjustment: May cause Head It is important to do these adjustments only after Switching noise or vertical jitter in the picture.

  • Page 22: How To Initialize The Dvd Recorder & Vcr

    HOW TO INITIALIZE THE DVD RECORDER & VCR To put the program back at the factory-default, initialize the DVD recorder & VCR as the following procedure. < DVD Section > 1. Turn the DVD recorder on. 2. Confirm that no disc is loaded or that the disc tray is open.

  • Page 23: Firmware Renewal Mode

    FIRMWARE RENEWAL MODE 1. Turn the power on and remove the disc on the tray. 4. Select the firmware version pressing arrow buttons, then press [ENTER]. 2. To put the DVD recorder into version up mode, Fig. d appears on the screen and Fig. e appears press [DVD], [CM SKIP], [6], [5], and [4] buttons on on the VFD.

  • Page 24: Function Indicator Symbols

    FUNCTION INDICATOR SYMBOLS < VCR Section > Note: If a mechanical malfunction occurs, the power is turned off. When the power comes on again after that by pressing [POWER] button, an error message is displayed on the TV screen for 5 seconds. Led Mode Indicator Active When reel or capstan mechanism is not...
  • Page 25 < DVD Section > Note: If an error occurs, a message with the error number appears on the screen. Recording Error Error message You cannot record on this disc as Power Calibration Area is full. Error No. Error Message Solution Error Description Priority An error occurs during data reading.
  • Page 26 Error Message Solution Error Description Priority During the CGMS picture (possible to This program is not allowed to Insert a ver.1.1 CPRM record once) input. (Disc which is not for be recorded on this disc. compatible DVD-RW disc. the correspondence to VR Format CPRM) Release the disc protect This disc is protected and not...
  • Page 27 Error Message Solution Error Description Priority - Set the timer programming - Some portion has not been recorded correctly. because of program overlapping. - Set the timer programming - Recording did not start at the start time. before the start time. - No Videotape is inserted.

  • Page 28: Block Diagrams

    BLOCK DIAGRAMS System Control Block Diagram 1-11-1 E9H11BLS...
  • Page 29 Servo Block Diagram 1-11-2 E9H11BLSV...
  • Page 30 Digital Signal Process Block Diagram 1-11-3 E9H11BLD...
  • Page 31 Video Block Diagram 1-11-4 E9H11BLV...
  • Page 32 Video Input Select Block Diagram 1-11-5 E9H11BLVIS...
  • Page 33 Video Output Select Block Diagram 1-11-6 E9H11BLVOS...
  • Page 34 Audio Block Diagram 1-11-7 E9H11BLA...
  • Page 35 Audio Input/Output Select Block Diagram 1-11-8 E9H11BLAS...
  • Page 36 Hi-Fi Audio Block Diagram 1-11-9 E9H11BLH...
  • Page 37 Power Supply Block Diagram 1-11-10 E9H11BLP...
  • Page 38 DTV Module Block Diagram 1-11-11 E9H11BLDTV...

  • Page 39: Schematic Diagrams / Cba's And Test Points

    SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS Standard Notes WARNING Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc.
  • Page 40 LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES: 1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE. RISK OF FIRE-REPLACE FUSE AS MARKED.
  • Page 41 Main 1/8 Schematic Diagram 1-12-3 E9H11SCM1...
  • Page 42 Main 2/8, Power SW, DVD Open/Close SW & Sensor Schematic Diagram FL1501 MATRIX CHART BS CS DR DTV BS CS 1-12-4 E9H11SCM2...
  • Page 43 Main 3/8 Schematic Diagram 1-12-5 E9H11SCM3...
  • Page 44 Main 4/8 Schematic Diagram 1-12-6 E9H11SCM4...
  • Page 45 Main 5/8 Schematic Diagram 1-12-7 E9H11SCM5...
  • Page 46 Main 6/8 Schematic Diagram 1-12-8 E9H11SCM6...
  • Page 47 Main 7/8 Schematic Diagram 1-12-9 E9H11SCM7...
  • Page 48 Main 8/8 Schematic Diagram 1-12-10 E9H11SCM8...
  • Page 49 Power Supply Schematic Diagram CAUTION ! CAUTION ! NOTE: For continued protection against fire hazard, Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. The voltage for parts in hot circuit is measured using replace only with the same type fuse. If Main Fuse (F1001) is blown , check to see that all components in the power supply hot GND as a common terminal.
  • Page 50 Front Jack Schematic Diagram 1-12-12 E9H11SCFJ...
  • Page 51 Tuner Schematic Diagram VOLTAGE CHART CN5005 Pin No. Voltage 1-12-13 E9H11SCT...
  • Page 52 DVD Main 1/5 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC101. IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD Main Schematic Diagram Section. 1-12-14 E9H11SCD1...
  • Page 53 DVD Main 2/5 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC101. IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD Main Schematic Diagram Section. 1-12-15 E9H11SCD2...
  • Page 54 DVD Main 3/5 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC101. IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD Main Schematic Diagram Section. 1-12-16 E9H11SCD3...
  • Page 55 DVD Main 4/5 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC101. IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD Main Schematic Diagram Section. 1-12-17 E9H11SCD4...
  • Page 56 DVD Main 5/5 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC101. IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD Main Schematic Diagram Section. 1-12-18 E9H11SCD5...
  • Page 57 DTV Module 1/2 Schematic Diagram 1-12-19 E9H11SCDTV1...
  • Page 58 DTV Module 2/2 Schematic Diagram 1-12-20 E9H11SCDTV2...
  • Page 59 Main CBA Top View Sensor CBA Top View BHF300F01012A BHF300F01012B TP751 V-OUT TP301 C-PB VR1501 SW-POINT TP513 TP302 RF-SW TP502 S-INH 1-12-21 BE9E8AF01011A...
  • Page 60 Main CBA Bottom View PIN 9 OF PIN 5 OF PIN 3 OF PIN 17 OF PIN 7 OF PIN 2 OF CN2201 CN2201 CN2201 CN2201 CN2201 IC2406 WF10 PIN 3 OF CN2204 1-12-22 BE9E8AF01011A...
  • Page 61 Power Supply CBA Top View CAUTION ! CAUTION ! Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. For continued protection against fire hazard, If Main Fuse (F1001) is blown , check to see that all components in the power supply replace only with the same type fuse.
  • Page 62 Power Supply CBA Bottom View CAUTION ! CAUTION ! Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. For continued protection against fire hazard, If Main Fuse (F1001) is blown , check to see that all components in the power supply replace only with the same type fuse.
  • Page 63 Tuner CBA Top View 1-12-25 BE9C80F01032A...
  • Page 64 Tuner CBA Bottom View WF13 PIN 4 OF TU5001 WF11 PIN 14 OF TU5001 WF12 PIN 15 OF TU5001 1-12-26 BE9C80F01032A...
  • Page 65 DVD Open/Close SW CBA DVD Open/Close SW CBA Power SW CBA Top View Power SW CBA Bottom View Top View Bottom View BE9E8AF01011B BE9E8AF01011C Front Jack CBA Top View Front Jack CBA Bottom View BE9E8AF01021B 1-12-27...

  • Page 66: Waveforms

    WAVEFORMS NOTE: Input: COLOR BAR SIGNAL (WITH 1KHz AUDIO SIGNAL) TP751 Pin 2 of IC2406 WF11 Pin 14 of TU5001 V-OUT E-E 0.2V 20µs PLL-CLK VIDEO-CVBS 0.5V 20µs TP751 UPPER Pin 15 of TU5001 Pin 3 of CN2201 WF12 TP302 LOWER V-OUT 0.5V...

  • Page 67: Wiring Diagram < Vcr Section

    WIRING DIAGRAM < VCR SECTION > 1-14-1 E9H11WI...

  • Page 68: Wiring Diagram < Dvd Section

    WIRING DIAGRAM < DVD SECTION > DVD/CD LASER DIODE DRIVE E9H11WID 1-14-2...

  • Page 69: System Control Timing Charts

    SYSTEM CONTROL TIMING CHARTS [ Tray Open ] Push Close Power on button is pressed. Tray insertion INNER-SW open? Tray insertion INNER-SW open? Tray ejection To disc distinction [ Tray Open ] button is pressed. INNER-SW open? SLED moves Tray ejection 1-15-1 R4NTI...
  • Page 70 Parameter V*: Voltage T*: Event timer V0: 2.40 V T1: 0.050 s V1: 4.25 V T2: 2.000 s V2: 2.00 V T3: 0.008 s V3: 2.36 V T4: 0.006 s V4: 4.26 V T5: 0.066 s T6: 1.500 s T7: 0.800 s T8: 0.005 s Tray open Tray ejection direction...
  • Page 71 Push close Threshold level 0.08 V 0.02 s Push Close detection 1-15-3 R4NTI...

  • Page 72: Ic Pin Function Descriptions

    IC PIN FUNCTION DESCRIPTIONS < VCR Section > Signal Function Name IC1501 LM-FWD/ Loading Motor FWD/ REV 26 OUT Output (SYSTEM CONTROL MICROPROCESSOR) 27 OUT P-ON-L Power On Signal to Low Signal Function Not Used Name P-DOWN Power Voltage Down Detector 29 OUT D-REC Delayed Record Signal Signal...
  • Page 73 Signal Signal Function Function Name Name Low Pass Filter Output Signal Tape End Position Detect 53 OUT AFCLPF IN END-S For AFC Signal VIDEO- Automatic Frequency Control 54 OUT Video Mute Control Signal IN AFC MUTE Signal OUTPUT- Output Select (DVD=”L”/ Video Envelope Comparator 55 OUT IN V-ENV...
  • Page 74 < DVD Section > IC1571 (VFD DRIVER) Signal Function Name IN CLK Clock Input IN STB Serial Interface Strobe Not Used Not Used Ground Power Supply Segment Output Pull Down Level 16 OUT i Segment Output Grid Output Power Supply Ground IN OSC Oscillator Input...

  • Page 75: Lead Identifications

    LEAD IDENTIFICATIONS KRA103M-AT/P KTA-1266-GR-AT/P PQ070XF01SZH 2SK3563(Q) KRC103M-AT/P KTC3198-GR-AT/P KTA1267-GR-AT/P KTC3203-Y-AT/P KTC3193-Y-AT/P KTC3266-GR-AT/P KTC3199-(BL,GR,Y)-AT/P PS2561A-1(W) KIA4558P/P 1: Anode 1 2 3 4 2: Cathode G D S 3: Emitter E C B E C B 4: Collector CD4052BNSR UTC4580E PT6313-S-TP(L) MM1697AJBE MM1636XWRE CD4053BNSR LA72670BM-MPB-E...

  • Page 76: Exploded Views

    EXPLODED VIEWS Cabinet 2L011 2L011 See Electrical Parts List 2L071 for parts with this mark. Tuner Assembly Tuner CBA 2L011 DTV Module 2B86 2L068 CBA Unit 2L082 2L068 2L068 2L081 2L062 2L069 2B14 2L075 2L033 2L111 2L081 2B17 2L111 W501 2L075 2L111 2L033...
  • Page 77 Packing Unit Some Ref. Numbers are not in sequence. 1-18-2 E9H11PEX...

  • Page 78: Mechanical Parts List

    MECHANICAL PARTS LIST PRODUCT SAFETY NOTE: Products marked with a Ref. No. Description Part No. # have special characteristics important to safety. SET BAG E7708UA 0DM400731D Before replacing any of these components, read ACCESSORIES carefully the product safety notice in this service REMOTE CONTROL UNIT NB659UD NB659UD manual.

  • Page 79: Electrical Parts List

    ELECTRICAL PARTS LIST PRODUCT SAFETY NOTE: Products marked with a Ref. No. Description Part No. # have special characteristics important to safety. C1312 CHIP CERAMIC CAP .(1608) B K 1µF/10V CHD1AK30B105 Before replacing any of these components, read C1313 ELECTROLYTIC CAP . 1µF/50V M H7 CE1JMAVSL1R0 carefully the product safety notice in this service C1314...
  • Page 80 Ref. No. Description Part No. Ref. No. Description Part No. C1470 CHIP CERAMIC CAP .(1608) B K 0.1µF/50V CHD1JK30B104 C2442 ELECTROLYTIC CAP . 470µF/6.3V M CE0KMASDL471 C1471 ELECTROLYTIC CAP . 22µF/6.3V M H7 CE0KMAVSL220 C2443 ELECTROLYTIC CAP . 470µF/6.3V M CE0KMASDL471 C1472 CHIP CERAMIC CAP .(1608) B K 4700pF/50V...
  • Page 81 Ref. No. Description Part No. Ref. No. Description Part No. CONNECTORS L1251 PCB JUMPER D0.6-P5.0 JW5.0T L1303 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101 CN1101 FFC CONNECTOR 30PIN IMSA-9615S-30A- JC96J30ER007 PP-A L1304 RADIAL TYPE CHOKE COIL CW68-470K- LLBD00PKV023 841040NP CN1102 PH CONNECTOR TOP 2P B2B-PH-K-S J3PHC02JG029 (LF)(SN) CHIP RES.(1608) 1/10W 0 Ω...
  • Page 82 Ref. No. Description Part No. Ref. No. Description Part No. CARBON RES. 1/6W G 820 Ω CHIP RES. 1/10W J 39k Ω R1065 RCX6GATZ0821 R1459 RRXAJR5Z0393 CARBON RES. 1/4W J 10k Ω CHIP RES. 1/10W J 39k Ω R1073 RCX4JATZ0103 R1463 RRXAJR5Z0393 CARBON RES.
  • Page 83 Ref. No. Description Part No. Ref. No. Description Part No. CHIP RES. 1/10W J 22k Ω CHIP RES. 1/10W J 33k Ω R1608 RRXAJR5Z0223 R2616 RRXAJR5Z0333 CHIP RES. 1/10W J 1.8k Ω CHIP RES. 1/10W J 360 Ω R1611 RRXAJR5Z0182 R2617 RRXAJR5Z0361 CHIP RES.
  • Page 84 DVD OPEN/CLOSE SW CBA Ref. No. Description Part No. SW1512 SWITCH ROTARY SSS-53MD-1 SSR0106KB004 Ref. No. Description Part No. SW1602 TACT SWITCH SKQSAF001A SST0101AL041 DVD OPEN/CLOSE SW CBA (MCV-C) ---------- SW1603 TACT SWITCH SKQSAF001A SST0101AL041 Consists of the following: SW1604 TACT SWITCH SKQSAF001A SST0101AL041 SWITCHES...
  • Page 85 Ref. No. Description Part No. Ref. No. Description Part No. CONNECTORS JP5022 PCB JUMPER D0.6-P12.5 JW12.5T JP5023 PCB JUMPER D0.6-P15.0 JW15.0T CN5003 6PIN FFC WX1E9H00-002 WX1E9H00-002 JP5025 PCB JUMPER D0.6-P20.0 JW20.0T CN5006 18PIN FFC WX1E9H00-001 WX1E9H00-001 JP5026 PCB JUMPER D0.6-P17.5 JW17.5T CN5007 FMN CONNECTOR SIDE 20P 20FMN-STRK-...
  • Page 86 Ref. No. Description Part No. Ref. No. Description Part No. D1009 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 2L019 SCREW S-TIGHT M3X8 BIND HEAD+ GBJS3080 D1010 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 AC1001# AC CORD WITH A GND WIRE UL/CSA 1740 WAV0172LW022 BLACK D1011 RECTIFIER DIODE BA158 NDQZ000BA158 F1001# FUSE CURRENT PEG20C0NG001...
  • Page 87 Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law. ZV450TT8 E9H11UD 2007-03-30...
