- Page 1 ScreenPort SDI+ User Guide version 1.6...
-
Page 2: Table Of Contents
Table of Contents SCREENPORT SDI+ USER GUIDE ............2 DELETE .................... 7 INTRODUCTION ..................2 PLAYBACK ................... 7 FEATURES ....................3 SLIDER .................... 7 BOX CONTENTS ..................3 JOG ....................7 CONNECTORS AND CONTROLS ............3 FUNCTIONS ..................7 SDI SOURCE ................... 8 POWER OPTIONS .................. -
Page 3: Screenport Sdi+ User Guide

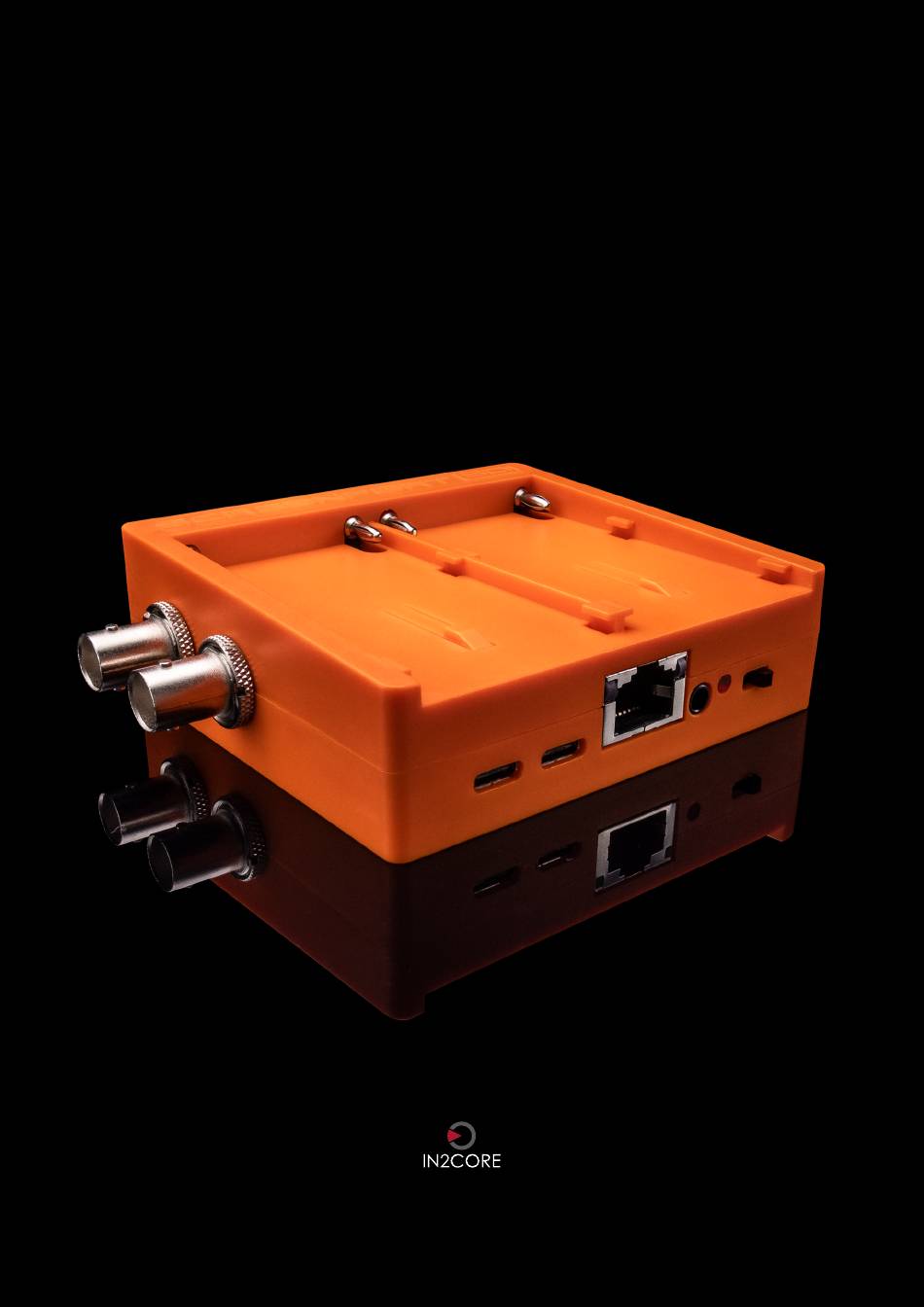

ScreenPort SDI+ USER GUIDE INTRODUCTION Apple devices feature amazing displays that often exceed the quality of dedicated portable and on- board SDI monitors. In addition to color accuracy, wide gamut, and slim form factor, they offer responsive touchscreen interface and incredible computing power. But they lack video input. ScreenPort SDI+ adds video input to iPad, iPhone or Mac and turns it into professional 3G-SDI monitor capable of capturing up to 1080p60 video feed with your personal portable device. -
Page 4: Features
FEATURES • Video, audio, metadata monitoring & recording • SDI embedded or analog audio capture • Auto-recording using camera SDI flags • Streaming to remote monitors over internet • Compatible with QTAKE applications • Battery powered operation • Bus-powered operation when using Mac •... -
Page 5: Power Options
POWER: • 5V DC 15W USB-C port • Dual Sony NP-F style battery mount CONTROL: • Software control over USB-C or network OPERATING FREQUENCY: • 2400 - 2483.5 MHz • 5150 - 5850 MHz MAX RF OUTPUT POWER: • < 20dBm EIRP POWER OPTIONS ScreenPort SDI+ offers multiple power options for its operation: USB-C POWER ADAPTER (INCLUDED) -
Page 6: Getting Started
GETTING STARTED Follow these steps to use ScreenPort SDI+ connected via USB cable to iOS device or Mac: 1. Install ScreenPort or QTAKE Monitor application on your iOS device. 2. Connect power source to ScreenPort SDI+ device using USB-C power connector or insert charged battery into designated slot. -
Page 7: Screenport App
SCREENPORT APP ScreenPort SDI+ device can be operated using the ScreenPort application. When connected to iOS device, ScreenPort SDI+ will be automatically detected. Basic functionality for monitoring, recording and playback is described below. MONITOR Make sure that the LIVE/DISK button located in the top left corner is set to live mode. Viewer will display the image of the incoming SDI feed. -
Page 8: Auto-Record
finish recording. If the SDI signal contains timecode, it will be recorded too. In case of missing timecode, current time of day will be used instead. AUTO-RECORD In addition to manual recording, some cameras provide SDI record flags that can be used to initiate automatic recording. -
Page 9: Sdi Source
SDI SOURCE This field is used to identify connected camera. Currently, only ARRI cameras are supported. More camera vendors will be available via firmware update. SETUP Bottom right corner of the ScreenPort user interface contains TOOLS/SETUP button. Switching this button to setup mode reveals additional controls. DEVICE CONTROL Tap the BITRATE field to select the quality of the encoder output. -
Page 10: Qtake Monitor App
QTAKE MONITOR APP ScreenPort SDI+ device can be operated using the QTAKE Monitor application. When connected to iOS device, ScreenPort SDI+ will be automatically detected by the application. Basic functionality for monitoring, recording and playback is described below. CREATE PROJECT QTAKE Monitor is a client application that connects to QTAKE Server. -
Page 11: Troubleshooting
and applied. Tap UPDATE to start the firmware update, then wait for the process to finish. Update progress will be displayed via playback slider. Your device will restart twice. TROUBLESHOOTING Following table provides instructions on solving most common problems related to use of ScreenPort SDI+. -
Page 12: Disposal Information
COPYRIGHT AND LEGAL NOTICES ScreenPort SDI+ is a trademark of IN2CORE s.r.o. All other trademarks are the property of their respective owners. July 30, 2021...
