Summary of Contents for WHD SX-MX17

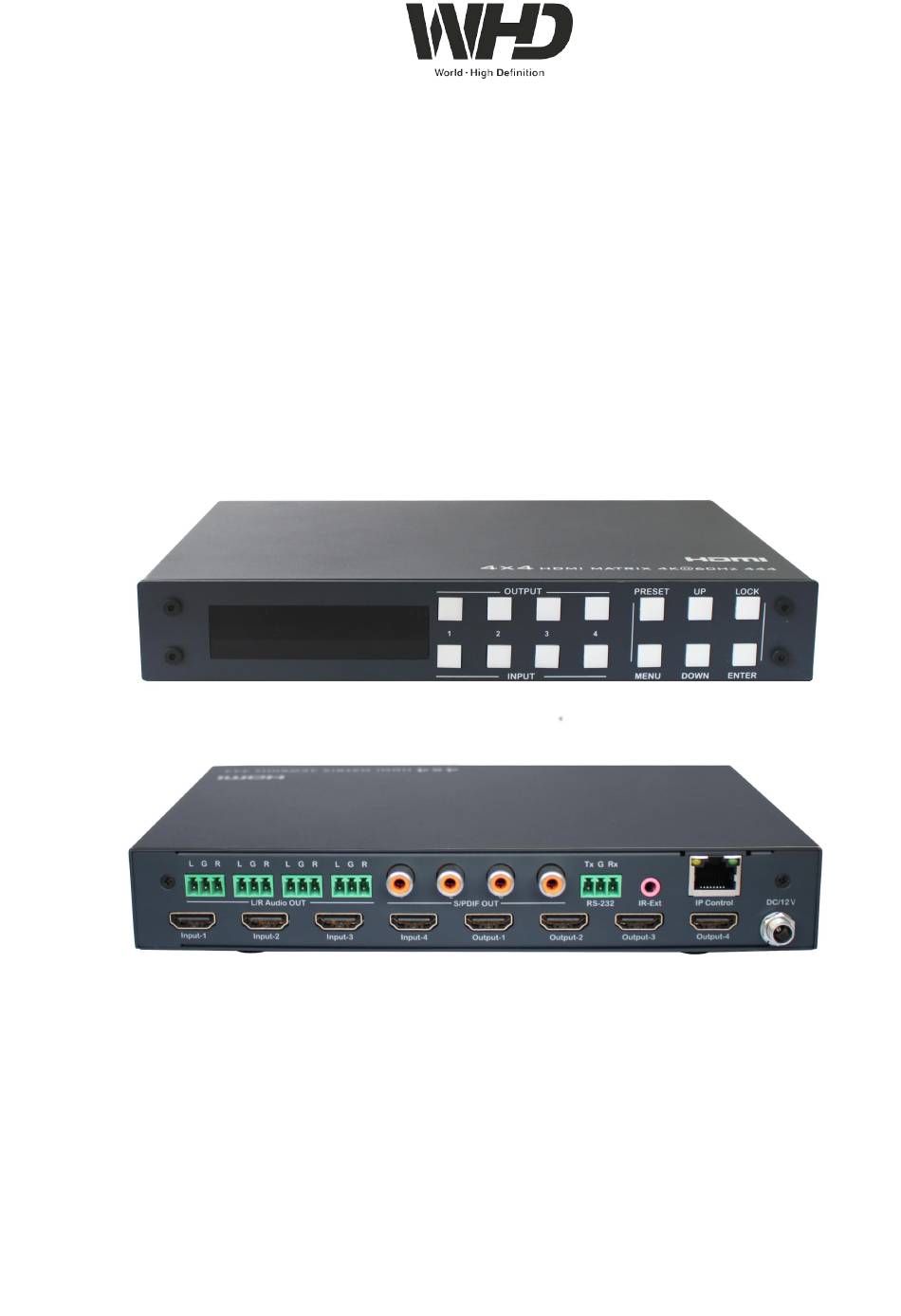

- Page 1 4x4 HDMI2.0 Matrix Support 4K@60hz YUV4:4:4, 18Gbps, HDR Operating Instruction...
- Page 2 Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
Operating Instruction Table of Contents 1. Features......................4 2. Package Contents.....................4 3. Specifications....................4 4. Panel Descriptions....................5 4.1 Front panel....................5 4.2 Rare panel....................6 5. Connecting and Operating................6 6. Application Diagrams..................7 7. Remote Control Description................7 8. Panel Control Description ................8 8.1 Video switch operation................8 8.2 Video control....................9 8.3 Audio control interface................11 8.4 EDID setting interface................12... -
Page 4: Features
Operating Instruction Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1. Features HDMI 2.0 version (Support 4K@60Hz YUV4:4:4) ... -
Page 5: Panel Descriptions

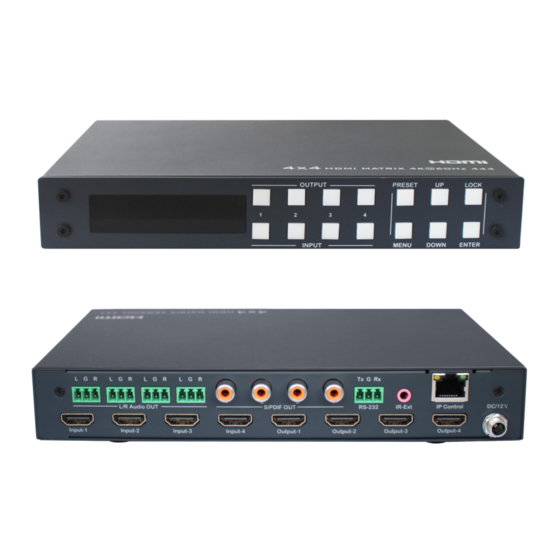

Operating Instruction 4. Panel Descriptions `4.1 Front panel IR receive window. Output 1-4:short press to choose one output,press again to cancel; long press to choose all output, long press again to cancel. Input 1-4:short press to choose one input(workable only if choose the output already);long press to choose one input for all output. -
Page 6: Rare Panel
Operating Instruction 4.2 Rare panel: ① Analog audio out ② S/PDIF audio out ③ RS232 for control ④ IR-Ext ⑤ Ethernet port ⑥ DC12V/2A input. ⑦ HDMI output port. ⑧ HDMI input port. 5. Connecting and Operating 1. Connect source devices to input ports of the matrix 2. -
Page 7: Application Diagrams
Operating Instruction 6. Application Diagram 7. Remote Control Description Power on/Standby. Turn off the HDMI output audio W: Lock remote control Output 1-4 All outputs select INPUT-Y: a.Press all button b.Press INPUT-Y button (Y means 1 to 4 of the inputs),then INPUT-Y switched to ALL OUTPUTS. -
Page 8: Panel Control Description
Operating Instruction Note: all button is for short press, no function for long press Power on/standby: short press to standby mode, LCD screen will show”System Shutdown”,HDMI output 5V will disconnect and TV without image. Short press again to awake device, HDMI output returns to normal. Video switch: output+input(eg:output1+input2, switch output1 to input1) Turn off HDMI output audio:output+M(eg:output1+M, turn off output1 audio) Lock remote control: short press”W”to lock,short press again to unlock. -
Page 9: Video Control
Operating Instruction 8.2 Video control: There are 2 sub-menus in video interface:1.switching 2.On/Off 8.2.1 Video switching Operation: ① select"Video"in the main menu,press "ENTER" button. ② press“up and down” button to choose “Switching” . ③ press "ENTER"to enter the next sub-menu ④... - Page 10 Operating Instruction 8.2.2 Output switch control You can open/close any output port,or open/close all output port.output video is default open Operation: ① in the main menu,select "Video" and press "ENTER" button ② press“up and down”button to select “On/Off” ③ press"ENTER"button to enter the next sub-menu the bottom color of ④...
-
Page 11: Audio Control Interface
Operating Instruction 8.3 Audio control interface There are 2 sub-menus in audio control interface:Line out,De-Embed(both are default open) -
Page 12: Edid Setting Interface
Operating Instruction 8.3.1 Switch output audio “Line out”means switch HDMI output audio, able to mute the TV sound from any one channel HDMI output. Operation： select“Audio”in main menu and press”ENTER”button. the bottom color of ②press“up and down”button to select“Line out”，press“ENTER”button， the selected turn to white. - Page 13 Operating Instruction Example:switch default1 to output1: Operation： select“EDID”in main menu and press”ENTER”button ② press“up and down”button to select“Input 1”（All means all input） ③press"ENTER"button to enter the next sub-menu the bottom color of the selected turn to ④ press“up and down”button to select“Default1”， white , press“ENTER”to complete setting ⑤...
-
Page 14: Preset Application
Operating Instruction 8.5 preset application Preset interface can save the current video,audio,EDID,system setting,etc..., support 8 different preset, can preset through web,command,panel button,and recall. Preset control interface has three sub-menu: Call scene Save scene Clear scene Operation： ①select“Preset”in main menu and short press”ENTER”button to enter preset interface; able to call,save and clear preset. -
Page 15: Setup Interface
Operating Instruction 8.6 setup interface Setup interface can set serial port baud rate,DHCP switch,device reboot and factory reset. 8.6.1 Baud rate setting 4 options for baud rate setting:9600,19200,57600,115200. The default serial port is 115200 Below example is setting baud rate to 9600. Operation：... - Page 16 Operating Instruction 8.6.2 DHCP switch DHCP On:dynamic IP address; DHCP Off:static IP address(default is DHCP off) DHCP on operation: select“Setup”in main menu and press”ENTER”button. ②press“up and down”button to select“DHCP”setting ③press“ENTER”to enter the next sub-menu. ④press“up and down”button to select“On” ⑤press“ENTER”to open DHCP to allocate IP address automatically. 8.6.3 Reboot Reboot device,default is“NO”.
- Page 17 Operating Instruction 8.6.4 Factory reset It is an initializing setting for the device function(default is “NO”).There are two factory settings: 1.Factory common: factory reset for video switch,EDID,audio and setting(IP address can’t be factory rest when under “common”). 2.Factory All: factory set for video switch,EDID,audio, setting,preset and device name. Eg: factory all operation: ①select“Setup”in main menu and press”ENTER”button ②press“up and down”button to select“Factory...
-
Page 18: Query Information Interface
Operating Instruction 8.7 Query information interface Query IP and system information. System interface：query company name,device name and version information IP interface：query device IP address,MAC address and DHCP status. Operation： ①select“INFO”in main menu and press”ENTER”button ②press“up and down”button to select“System”or “IP”,bottom color will turn white when selected ③press“ENTER”to enter the next sub-menu, then able to query device information. - Page 19 Operating Instruction...
-
Page 20: Rs232 Control
Operating Instruction 9. RS232 Control 9.1 Open CommUart Assistant. 9.2 Comport setting: Choose correct COM port that connect to PC in parameter configuration area Baud Rate: 115200 bps(Default) Parity: None Data Bit: 8 bit Stop Bit: 1 bit 9.3 Enter Port Command in Send options. 9.4.Command List 1).All commands start with “#”... -
Page 21: Web Control
Operating Instruction 10. Web Control 10.1 Change IP address of PC Before configuring the device through the website, it is necessary to configure the IP address of the computer configured with the device (mainly to ensure that the computer and the device are set in the same network segment). 1). -
Page 22: Log In By Browser
Operating Instruction 10.2 Log in by browser Default IP address for log-in:192.168.1.168 Type in user name and password(default user name:admin;default password:123456) Note:suggest to use newer version of Google,firefox, browser for better compatibility. IE11 10.3 Video interface: 1. output ：01 >> 02，01 means input，02 means output，all means all output Operation steps: Click 01 >>... -
Page 23: Audio Interface
Operating Instruction 10.4 Audio Interface 1. Click output1-4 HDMI：turn off HDMI output audio； Operation: eg:turn off audio of the TV which connected to HDMI output1 Click output1 HDMI, color will change and TV only with video but no audio. Re-click to tu rn on audio. -
Page 24: Edid Interface
Operating Instruction 10.5 EDID Interface 1. Input：00>>Input1，00~16: EDID number，Input1~4:HDMI input1~4 2. Output： 00~03:default EDID， 04~07 :user EDID， 08~11:copy EDID， 12~15:input EDID， 16:Temp EDID，refer to below for more details： 4K60 444-LPCM: 2.0, HDR:HLG 4K60 420-LPCM: 2.0, HDR:None 4K30 444-LPCM: 2.0, HDR:None 1080P60 444-LPCM: 2.0, HDR:None User1 User2... -
Page 25: Network Interface
Operating Instruction 10.6 Network Interface MAC address can not be modified,for display only. Static IP:Click DHCP switch(DHCP Off),you can modify IP address,then click “Apply” button,it will countdown.If device IP address same as client re-login web interface.If unable to IP, will refresh automatically, then need to resubmit form manually. -
Page 26: System Setting Interface
Operating Instruction 10.7. System Setting Interface: 1. System Setting： Reboot:Click to reboot device Factory common:Click to reset device for partial function; Factory all:Click to reset device totally; “Reboot” will not clear user parameter;”Factory common” will not clear Network and Preset parameter;... -
Page 27: Firmware Update
Operating Instruction 11.Firmware Upgrade Web upgrading after MCU application layer upgrade application layer （Both Web and MCU Support USB micro port upgrading) ，if burning with encrypted firmware, it may fail to burn or can’t work normally.Should decrypt firmware before burning. Burning ways as below: 11.1.MCU application layer upgrade Connect unit to PC with usb cable from micro usb port,open software”UART_ISP_V1.6.exe”,... -
Page 28: Web Upgrade
Operating Instruction 11.2 Web Upgrade: Connect unit to PC with usb cable from micro usb port,open software”UART_ISP_V1.6.exe”, select correct USB port, set baud rate:115200,type in “F0” in PORT and select PATH, then click UPDATA to finish upgrading. -
Page 29: Warranty Policy
Operating Instruction MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE （1）Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;... - Page 30 Instruction maintenance, power line surge, lightning damage, modification, or service by anyone other than a Factory Service center or other Authorized Servicer, or damage that is attributable to acts of God. 2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE".
