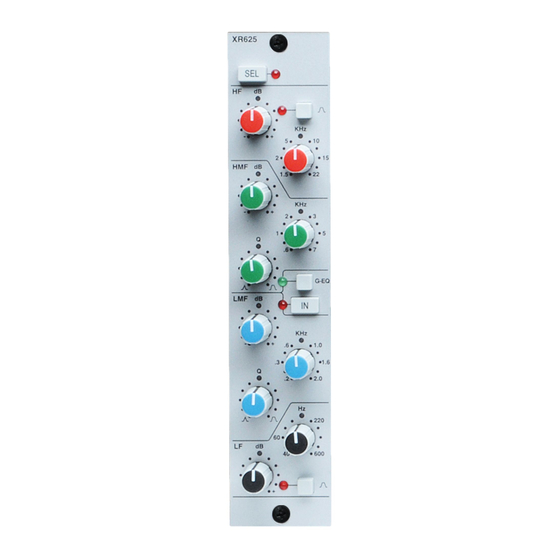

Solid State Logic XLOGIC SUPERANALOGUE X-RACK Stereo EQ User Manual

Download this manual

Solid State Logic

S O U N D | | V I S I O N

SUPERANALOGUE

X R A C K

Super-Analogue™ Outboard

X-Rack Stereo EQ User's Guide

This documentation package contains the User's Guide for your new X-Rack Stereo EQ

module. Depending on the age of your X-Rack, these pages may already be present in

your X-Rack Owner's Manual – please check to see if these pages match your Manual.

If they do not, these pages should be filed alongside it.

Please Note. X-Rack units prior to serial number XRK1450 (early 2011) fitted with multiple Stereo EQ

modules (greater than three) may require an up-rated buscard (SSL part no. 629620X2,

revision 2 or later) – please contact SSL if in doubt.

For correct operation of this module, your X-Rack unit must be running V1.4/8 or later

software. Please refer to your X-Rack Owners Manual for instructions on how to check the

current software version and how to obtain and install a newer version if required.

There may be a newer version of the X-Rack Owner's Manual available for download from our

website (www.solidstatelogic.com)

82S6XR0M0B

Need help?

Do you have a question about the XLOGIC SUPERANALOGUE X-RACK Stereo EQ and is the answer not in the manual?

Page 1 Solid State Logic S O U N D | | V I S I O N SUPERANALOGUE X R A C K Super-Analogue™ Outboard X-Rack Stereo EQ User’s Guide This documentation package contains the User’s Guide for your new X-Rack Stereo EQ module.
Page 3: Operation
X-Rack Stereo EQ Module M. Stereo EQ Module M.1 Connection The module input and output gains can be set to operate at a nominal level of either +4dBu or –10dBV, using a switch on the connector panel. To select the appropriate level for the equipment you are connecting to, please check the operating manual for your mixer or DAW.
Page 4 The following pages contain audio performance specification figures for the X-Rack Stereo EQ Module. No other Solid State Logic products are covered by this document and the performance of other Solid State Logic products can not be inferred from the data contained herein.
Page 5 X-Rack Stereo EQ Module LMF Band controls: Frequency Variable from 200Hz to 2.0kHz Gain Variable by > ±20dB ‘Q’ Variable from 0.7 to 2.5 (may also vary with gain) LF Band controls: Frequency Variable from 40Hz to 600Hz Gain Variable between ±20dB ‘Q’...
Page 6 X-Rack Owner’s Manual M.4 Calibration Information The X-Rack Stereo EQ module requires no calibration. M.5 Connector Details Audio Input Audio Output Location: Rear Panel Location: Rear Panel Conn’ Type: Stereo 1/4" Jack Socket Conn’ Type: Stereo 1/4" Jack Socket Description Description Audio +ve Audio +ve...
