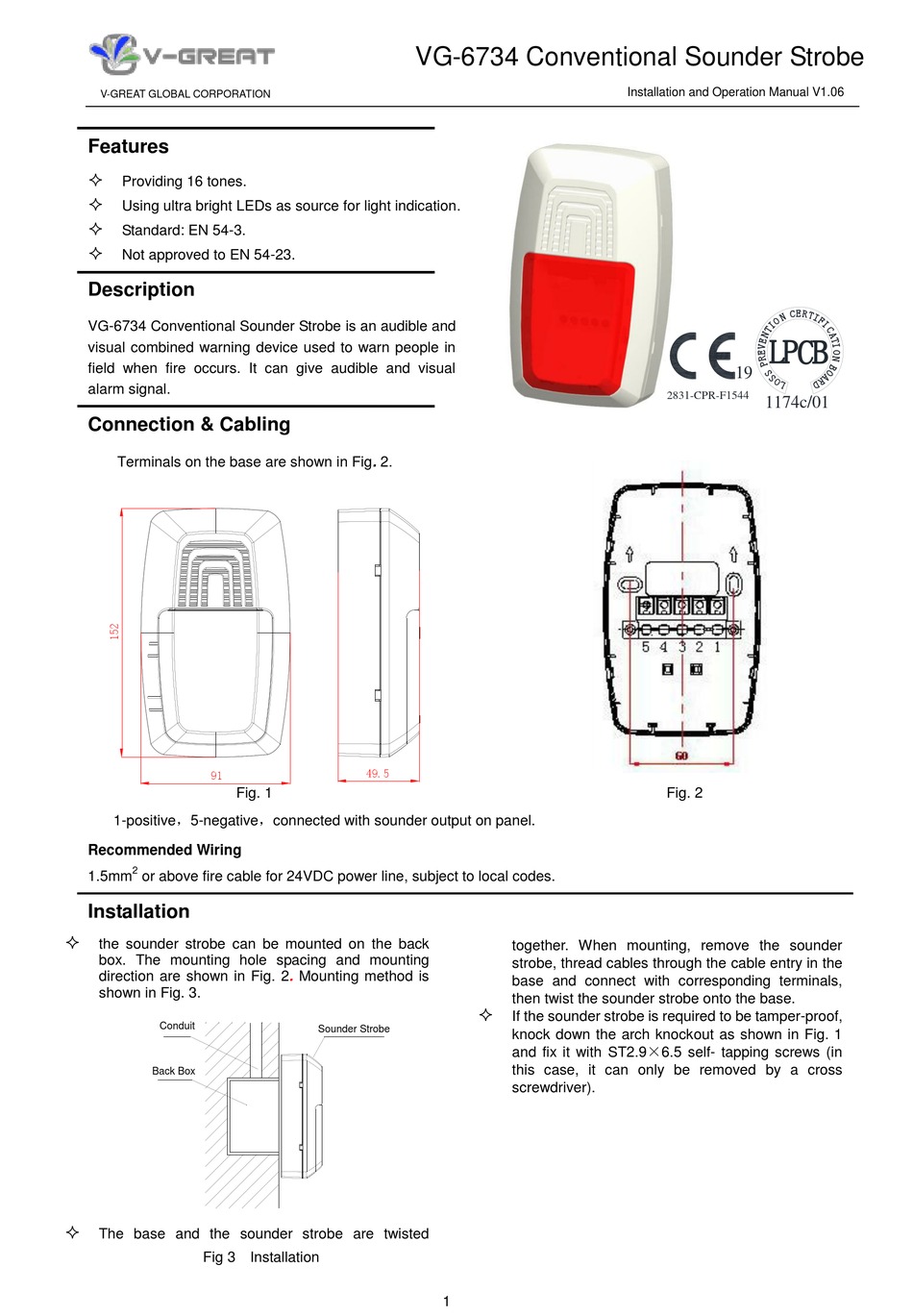

V-GREAT VG-6734 Installation And Operation Manual

V-GREAT GLOBAL CORPORATION
Features

Providing 16 tones.

Using ultra bright LEDs as source for light indication.

Standard: EN 54-3.

Not approved to EN 54-23.
Description

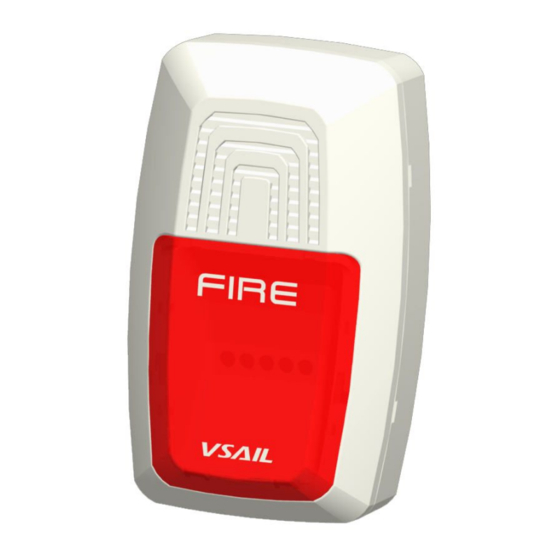

VG-6734 Conventional Sounder Strobe is an audible and
visual combined warning device used to warn people in
field when fire occurs. It can give audible and visual
alarm signal.
Connection & Cabling
Terminals on the base are shown in Fig. 2.
91
Fig. 1
1-positive，5-negative，connected with sounder output on panel.
Recommended Wiring
2
1.5mm or above fire cable for 24VDC power line, subject to local codes.
Installation

the sounder strobe can be mounted on the back
box. The mounting hole spacing and mounting
direction are shown in Fig.
shown in Fig. 3.
Conduit
Back Box

The base and the sounder strobe are twisted
Fig 3 Installation
VG-6734 Conventional Sounder Strobe
49.5
2. Mounting method is
Sounder Strobe
1
Installation and Operation Manual V1.06
together. When mounting, remove the sounder
strobe, thread cables through the cable entry in the
base and connect with corresponding terminals,
then twist the sounder strobe onto the base.

If the sounder strobe is required to be tamper-proof,
knock down the arch knockout as shown in Fig. 1
and fix it with ST2.9×6.5 self- tapping screws (in
this case, it can only be removed by a cross
screwdriver).
19
2831-CPR-F1544
1174c/01
Fig. 2
