INSTALLATION AND MAINTENANCE INSTRUCTIONS
B501 Plug-in Detector Base
Specifications
Diameter:
Mounting:
Electrical Ratings – includes base and detector
Voltage Range:
Standby Current (nominal):
Power-Up Surge at
Maximum Rated Voltage:
LED Current (nominal):
Before Installing
Please thoroughly read the System Sensor manual I56-407,
Guide for Proper Use of System Smoke Detectors, which
provides detailed information on detector spacing, place-
ment, zoning, wiring, and special applications. Copies of
this manual are available at no charge from System Sensor.
General Description
This plug-in detector base is used with System Sensor 200
and 500 Series detectors.
The B501 base is intended for use in an intelligent system
with screw terminals provided for power (+) and (–), and
remote annunciator connections. The communication takes
place over the power (+) and (–) lines.
Base Terminals
No.
Function
1
Power (–), Remote Annunciator (–)
2
Power (+)
3
Remote Annunciator (+)
D550-02-00
Technical Manuals Online! - http://www.tech-man.com
4.0 inches (10.2cm)
50mm, 60mm, and 70mm centers
15-32 VDC
150µA at 24 VDC
1.5mA–Sec.
6mA at 24 VDC
1
3825 Ohio Avenue, St. Charles, Illinois 60174

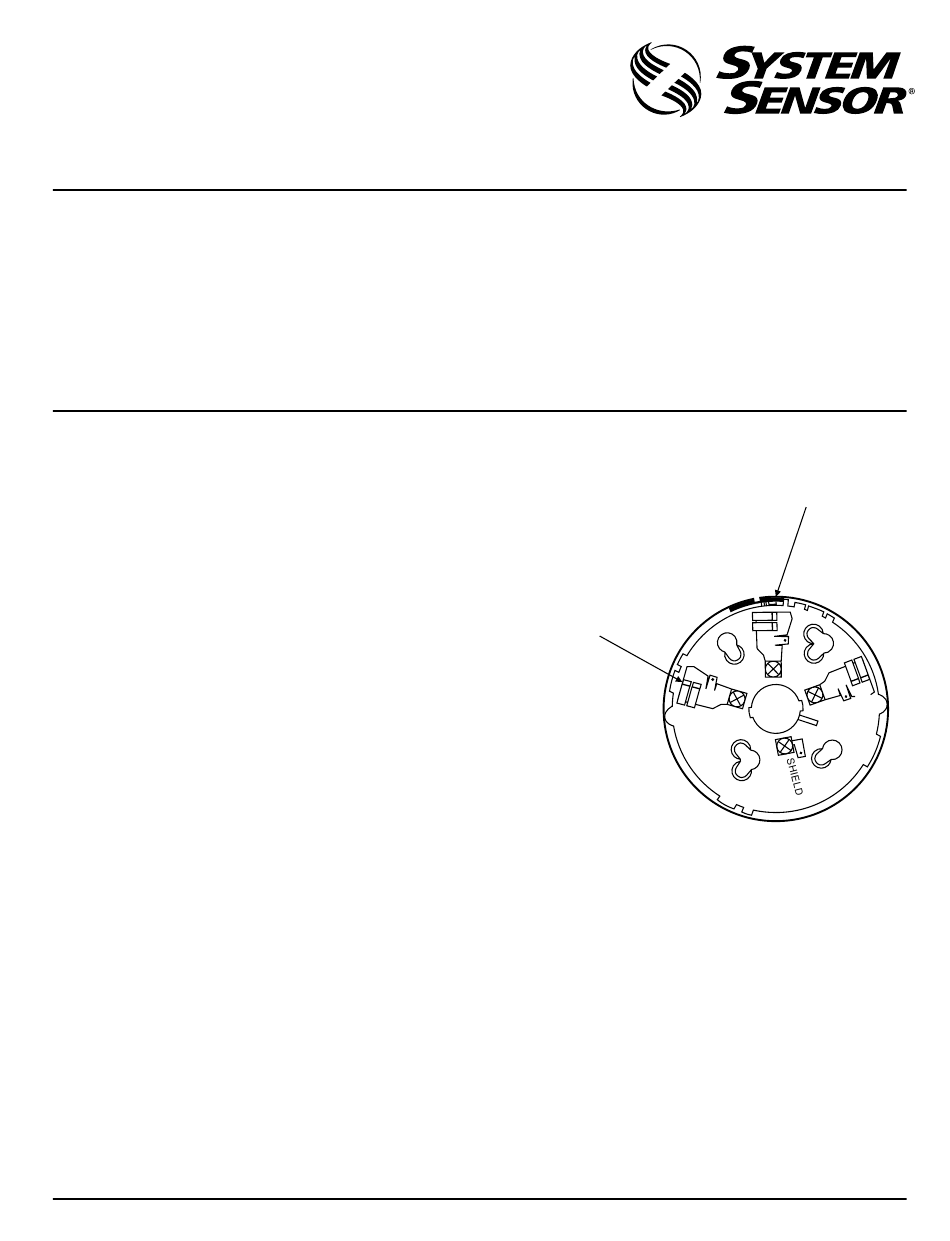

Figure 1. Terminal layout:
BASE
TERMINALS
A Division of Pittway
1-800-SENSOR2, FAX: 630-377-6495
TAMPER PROOF
TAB
2(+)
1(-)
3
A78-1318-04
I56-357-04
