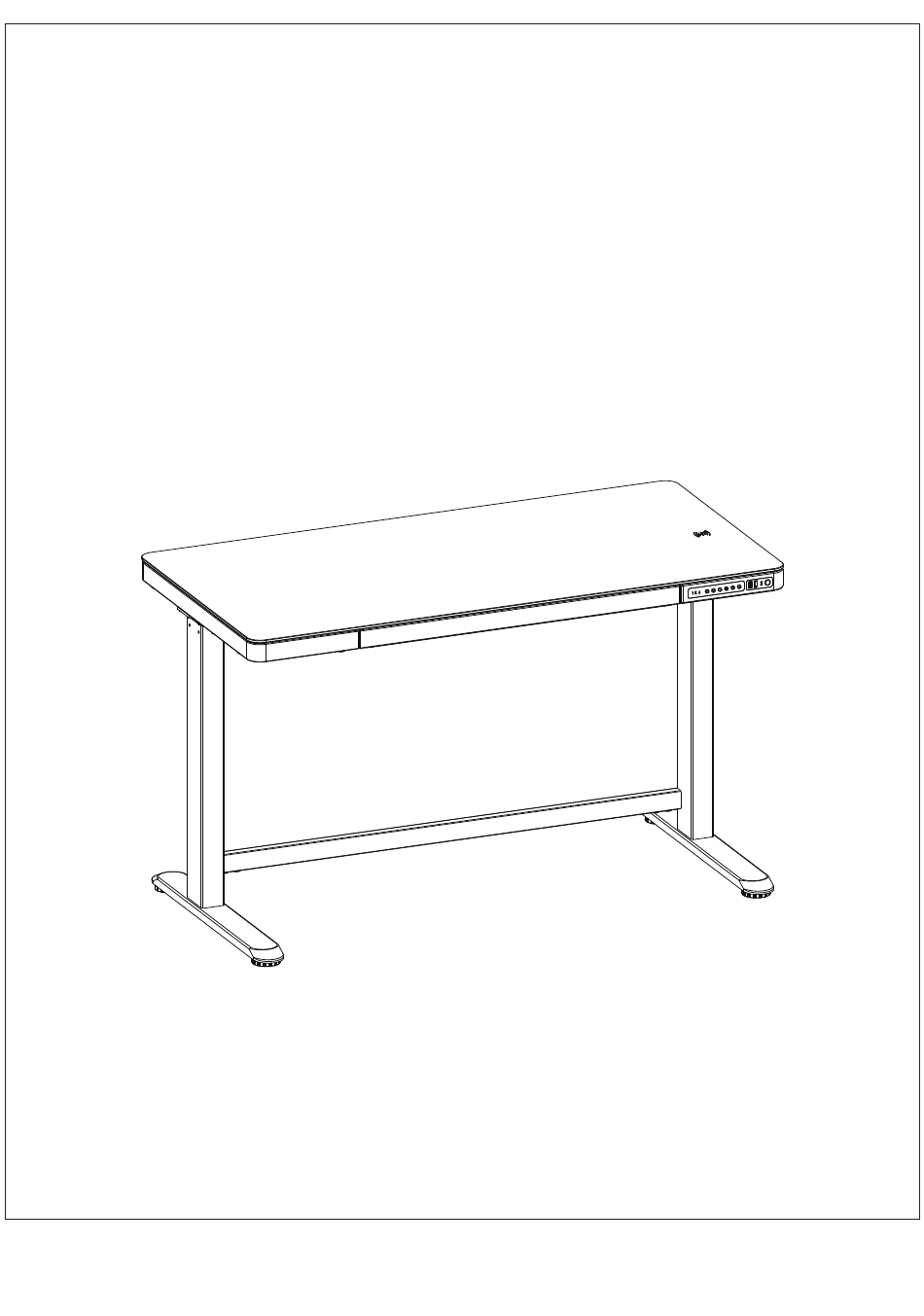

- Page 1 Smart Desk Product Refs-KBLT0011/KBLT0012/KBLT0013/KBLT0014 Assembly Instructions Imported By: Forward Industries, 33401. U.S.A Issue 1 - 16/07/20...
- Page 2 110lbs.
- Page 3 Desk top Qty 1 Underframe Qty 1 (KBLT0011/KBLT0012: 47.2*23.6*0.48") (45.2*26.7*3.2") (KBLT0013/KBLT0014: 47.2*23.6*0.24") Feet Qty 2 Power Adaptor Qty 1 (23.2*2.7") (122")
- Page 4 561-465-0030, Option 0. Address: Forward Industries, 105 South Narcissus Avenue Suite 412, West Palm Beach, FL 33401...
- Page 5 STEP 1 Assemble underframe to top using fixings M8 Screw Qty 8 5x5 Qty 1 Shown upside down STEP 2 Assemble feet legs using fixings Note: Ensure the longer sections of the feet are located at the front as shown. M6 Screw Qty 8 Back 5x5 Qty 1...
- Page 6 STEP 3 Connect the Cables Control Box Control Box Adaptor Adaptor Power Route cables through cable tidy clip Cable Clip Fixed...
- Page 7 STEP 4 With help, carefully turn the desk over into it’s final location and connect to a power source.
- Page 8 Height Adjustment/Controls Key button LED Screen Child Lock UP/DOWN Keys Type C Charging Port Memory Keys USB Charging Port Up and DOWN Function To raise the desk height, press and hold the key for 1.2 seconds and release, it will rise automatically. Press it again until the desired height is reached.
- Page 9 Wireless Charging Function Wireless Charging logo If you have a wireless charging compatible device, please put the phone on the wireless charging indicator and check if the phone is successfully connected to the charging function. If not, move the mobile phone near the logo until the connection is successful.
-
Page 10: Troubleshooting
Troubleshooting a.Reset: Press the 3 and 4 keys simultaneously, the RST reset indication will appear. Continue to press the “▼” down keys until the lifting table lowers to the lowest position and rebounds to rise to a stop. The display shows the lowest height “bot”, release “▼”... - Page 11 561-465-0030, Option 0. Address: Forward Industries, 105 South Narcissus Avenue Suite 412, West Palm Beach, FL 33401 This marking indicates that this product should not be disposed with other household wastes.
