EM78P911A
8-BIT MICRO-CONTROLLER
Version 2.1
ELAN MICROELECTRONICS CORP.
st
No. 12, Innovation 1
RD., Science-Based Industrial Park
Hsin Chu City, Taiwan
TEL: (03) 5639977
FAX: (03)5630118 (SA2)
2005/12/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM78P911A and is the answer not in the manual?

Questions and answers

Imran
March 7, 2025

Elan mikrokontreller

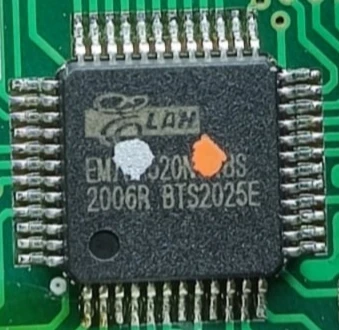

User image 67ca40d8969c2
0
1 comments:
Mr. Anderson
March 7, 2025

The EM78P911A is an 8-bit CID (Call Identification) RISC-type microcontroller developed by ELAN Microelectronics Corporation. It is built using low-power, high-speed CMOS technology and integrates various features on a single chip, including an on-chip watchdog timer (WDT), RAM, ROM, programmable real-time clock/counter, internal interrupt, power-down mode, LCD driver, FSK decoder, CALL WAITING decoder, SDT decoder, DTMF generator, MEI (Multiple Extension Internetworking), RTF (Request To Flash) functions, and tri-state I/O. It operates within a voltage range of 2.5V to 5.5V and includes 16K×13 OTP-ROM and 2.8K×8 RAM.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for ELAN Microelectronics Corporation EM78P911A

Summary of Contents for ELAN Microelectronics Corporation EM78P911A

  • Page 1 EM78P911A 8-BIT MICRO-CONTROLLER Version 2.1 ELAN MICROELECTRONICS CORP. No. 12, Innovation 1 RD., Science-Based Industrial Park Hsin Chu City, Taiwan TEL: (03) 5639977 FAX: (03)5630118 (SA2) 2005/12/19...
