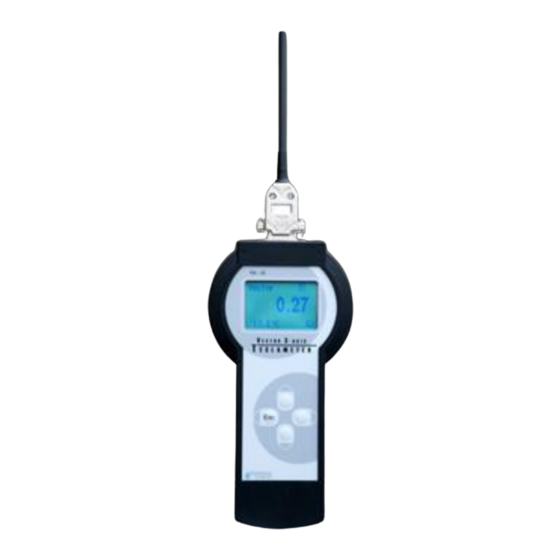

- Page 1 Krzywa 13, 62 - 040 Puszczykowo 1, POLAND tel. +48 61 8133 504 e-mail: biuro@resonance-technology.com www.resonance-technology.com RX-25b TESLAMETER SHORT MANUAL December 2009...
- Page 2 - 2 - CONTENTS 1. FIRST STEPS BEFORE START 2. FRONT PANEL OPERATION 3. DISPLAY VIEW 4. TESLAMETER MENU 5. GENERAL REMARKS...
- Page 3 - 3 - 1. FIRST STEPS BEFORE START Remove plastic protection from the screen. Attach three-axis Hall probe to the instrument. Turn on teslameter. Use push-button located at the back of teslameter. Instrument may be supplied with internal battery or external AC adapter with stabilized 9 V output - see POWER socket.
- Page 4 - 4 - Three „position buttons” enable very fast access to the main functions without searching the Menu.Therefore, successive pressing of down button ) enables change of teslameter resolution from 0,001 mT to 0,1 mT. Up button ( ) changes active axis: X/Y/Z/Vect. Besides horizontal button ) has two additional functions.
- Page 5 - 5 - 4. TESLAMETER MENU magnetic field peak hold MEASURING MODE relative temperature Vector axis auto POWER 20 mT (at the back) ranges 200 mT 2000 mT SETTINGS units kA / m x x x x x x alarm down x x x x x x probe zeroing filter...
- Page 6 - 6 - GENERAL REMARKS Teslameter has two additional output sockets: serial port (RS 232) for data transmission and remote control by PC and analog port for direct view on oscilloscope of AC magnetic field shape at AC mode of measurement. If there is no COM port in PC, please use standard COM /USB port converter.
