SE-0205 MULTI-PURPOSE ALARM W/REMOTE

PACKAGE INCLUDES:

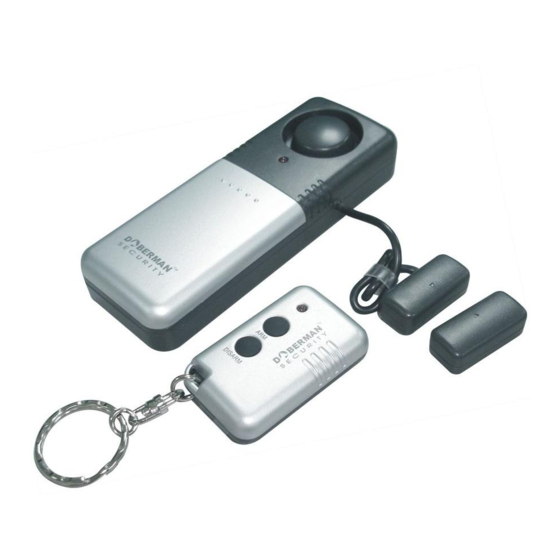

Multi-Purpose Alarm Main Unit with two magnetic detectors...1PC
Remote Control...1PC
12V 23A Alkaline battery (for Remote)...1 PC
Warning Sticker... 2 PCS

BATTERY INSTALLATION:

Main Alarm Unit:

Remove the front battery cover by sliding it downwards.
Unscrew the water resistant cover.
Follow the polarity instructions and insert three AAA Alkaline batteries (not included).
Screw on the water resistant cover.
After the batteries are installed, the red LED will flash. The Main Alarm unit is now
prepared for the Remote Unit to learn the mutual control code.
Press either the ARM or DISARM button on the Remote unit. Three short beeps will
sound and the red LED will flash to indicate that the Main Alarm unit has successfully
learned the code.

Remote Unit:

Unscrew the back cover to insert or replace 1pc fresh DC12V battery (included) into
the battery compartment.
The red LED will turn on to indicate that the battery has been installed successfully.
Press either of the two buttons on the Remote Unit to turn OFF the red LED.

OPERATION:

Attach the alarm to the inside of your tool box, or on your window, door/gate, with the
included adhesive.
When setting up the Multi-Purpose Alarm for the first time, place the magnetic
sensors adjacent to each other. Make sure that the two sensors are not separated by
more than half an inch when the tool box/window/door/gate is closed.
After closing the tool box/window/door/gate, press the remote and wait for the
confirming beep: If one beep is heard, then the Multi-Purpose Alarm is armed. If
instead four beeps sound, then the magnetic sensors are too far apart and need to be
placed closer together. Open the tool box/window/door/gate, re-adjust the sensors,
and try again until a "beep" sound is heard. Now the Multi-Purpose Alarm is ready to
protect your valuables.
Use the remote to arm and disarm the Multi-Purpose Alarm. These actions are
confirmed by an audible beep and LED flash.
The alarm will enter into arm status 5 seconds after the ARM button is pressed.
In the event of a break-in, the armed alarm and the LED will go off continuously for
one minute and then automatically reset to armed status.
Turn OFF the alarm by pressing DISARM. Two short beeps will then sound
accompanied by an LED flash.

LOW BATTERY INDICATION:

Main Alarm Unit: When the battery power becomes low, the red LED will flash at 20
Protect virtually anything

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE-0205 and is the answer not in the manual?

Questions and answers

Related Manuals for Doberman SE-0205

Summary of Contents for Doberman SE-0205

  • Page 1 SE-0205 MULTI-PURPOSE ALARM W/REMOTE Protect virtually anything PACKAGE INCLUDES: Multi-Purpose Alarm Main Unit with two magnetic detectors...1PC Remote Control...1PC 12V 23A Alkaline battery (for Remote)…1 PC Warning Sticker… 2 PCS BATTERY INSTALLATION: Main Alarm Unit: Remove the front battery cover by sliding it downwards.
  • Page 2 If your product does not work properly because of a defect in materials or workmanship, Doberman will, for the length of the period as follows, which starts with the date of original purchase (“warranty period”), replace it with a new or a refurbished product.
  • Page 3 If a problem with this product develops during or after the warranty period, you may contact your dealer or service center. If the problem is not handled to your satisfaction, then write to Doberman’s Customer Services Department PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
  • Page 4 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. SE-0205 MULTI-PURPOSE ALARM W/REMOTE Virtualmente protege cualquier cosa PAQUETE INCLUYE: Alarma mutipleuso con dos detectores magnéticos ...1pz...
  • Page 5 Este producto solamente es para avisar cuando puertas o ventanas estén abiertas. GARANTÍA LIMITADA: Si este producto no funciona correctamente por algún defecto material o de fabrica, Doberman le repone el producto con uno nuevo o restaurado, por el tiempo marcado al empezar de la fecha de compra original. Productos...
  • Page 6 La garantía es valida solamente en defectos materiales o de fabrica, y no cubre uso normal o daño cosméticos. La garantía no es valida sobre daños hechos en transito o si el producto no es proveído por Doberman, o fallos resultados por accidentes, abuso, negligencia, mal aplicación, alteración, fallos en instalación, impropio mantenimiento, daño de electricidad, modificación, rento de producto, servicio por otra factoría o servicios sin...
