1/10
detail set for 1/350 Tamiya No. 78031 kit • sada detailů pro stavebnici 1/350 Tamiya No. 78031
ORIGINAL KIT PARTS
PŮVODNÍ DÍLY STAVEBNICE
2 pcs.
165
137, 65
2 pcs.
89
17
E1
Musashi 1/350
PHOTO-ETCHED PARTS
LEPTANÉ DÍLY
4 pcs.
136
64, 137
17
64
2
3
E2, E24, E49, E50,
H22, J3, J4
97
99
165
65
2 pcs.
137
145
165
99
98
60
E1
61
17
APPLY EXPRESS MASK AND PAINT BEFORE GLUING
POUŽÍT EXPRESS MASK NABARVIT PRED SLEPENÍM
SYMETRICAL ASSEMBLY
SYMETRICKÁ MONTÁŽ
REMOVE
ODSTRANIT
GRIND
OBROUSIT
DRILL HOLE
VRTAT OTVOR
COLORED ETCHED PARTS
1
LEPTANÉ BAREVNÉ DÍLY
ETCHED PARTS
1
LEPTANÉ NEBAREVNÉ DÍLY
ORIGINAL KIT PARTS
1
PŮVODNÍ DÍLY STAVEBNICE
PARTS TO BE REMOVED
DÍLY K ODSTRANĚNÍ
4 pcs.
165
wire
= 0,3mm
l = 3mm
37
164
37
146
89
99
163
108
61
53 133
eduard
53 133
BEND
OHNOUT
OPTION
?
VOLBA
REPLACE
NAHRADIT
FILL
TMELIT
146
17
164
64
136
97
98
163
2 pcs.
108
60
Advertisement
Related Manuals for Eduard Musashi 1/350
Summary of Contents for Eduard Musashi 1/350

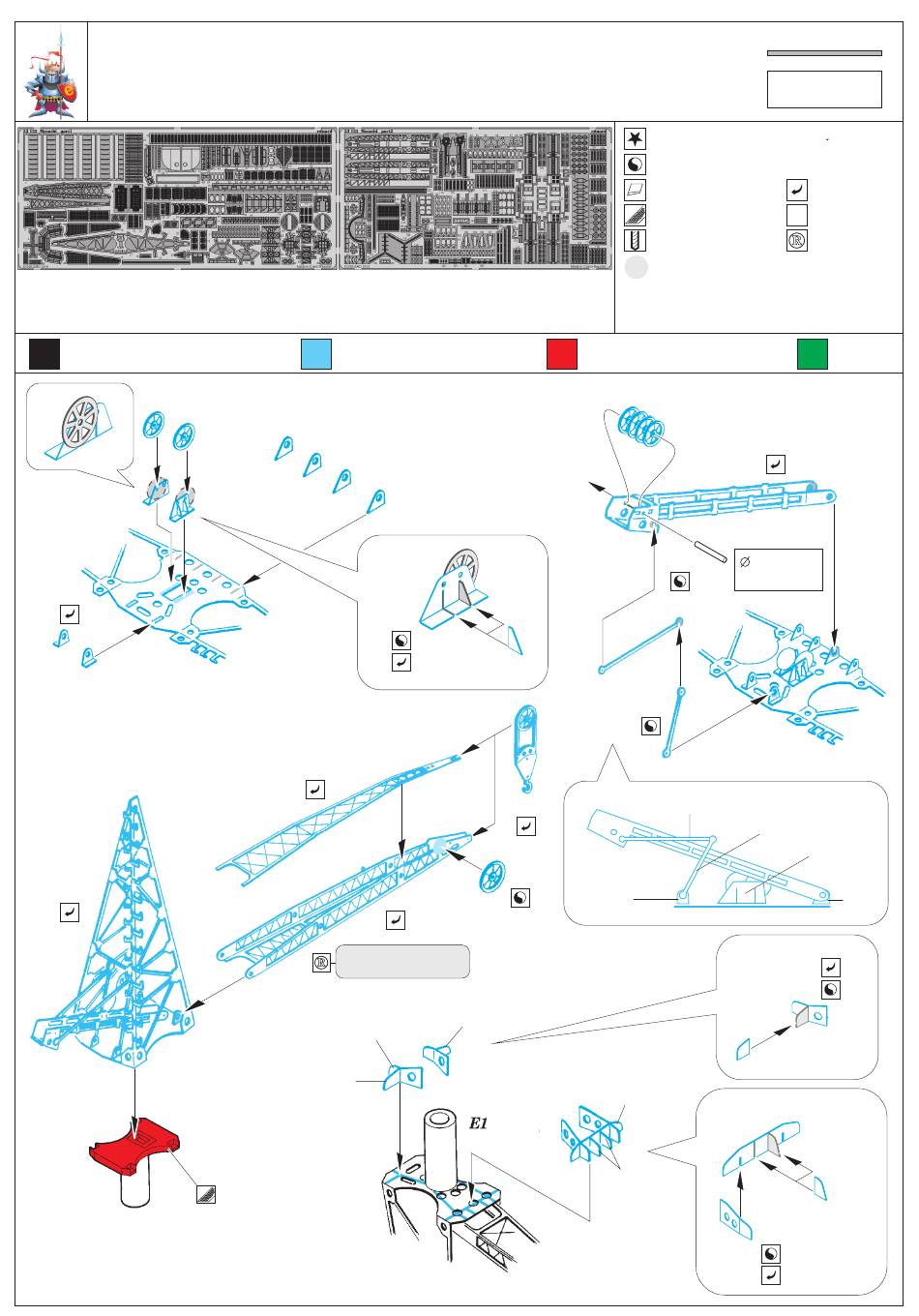

- Page 1 1/10 53 133 eduard Musashi 1/350 53 133 detail set for 1/350 Tamiya No. 78031 kit • sada detailů pro stavebnici 1/350 Tamiya No. 78031 APPLY EXPRESS MASK AND PAINT BEFORE GLUING POUŽÍT EXPRESS MASK NABARVIT PRED SLEPENÍM SYMETRICAL ASSEMBLY SYMETRICKÁ...
- Page 2 2/10 53 133 Foredeck Hull 4 sets 9 sets = 1,5mm l = 3mm plastic 3 pcs. 5 pcs. 12 pcs. 3 pcs. Foredeck 2 pcs. fill 3 pcs. 2 pcs.
- Page 3 3/10 53 133 Foredeck 2 sets 2 sets 2 sets Foredeck 2 sets Hull...
- Page 4 4/10 53 133 3 sets J7 ( D26 ) J7 ( D26 ) G4, G5, G6 2 pcs. 2 sets 6 sets H8, H9 2 pcs. G1 ( G12 ) G1 ( G12 ) fill 16 sets fill 2 pcs. 2 pcs.
- Page 5 5/10 53 133 30 sets 2 pcs. Center deck 2 sets D9 ( D10 ) Center deck...
- Page 6 6/10 53 133 12 pcs. 6 sets fill 2 pcs. Center deck 2 pcs. 2 pcs. E18, E30, F10, F11 Stern deck Hull fill Center deck 2 pcs.
- Page 7 7/10 53 133 H5, E8 J1, E6 2 pcs. H5, E10 E32, E33 E11, J9 H5, E9 2 sets go to page 10 D27, D33, D34, D39, D40...
- Page 8 8/10 53 133 E32, E33 plastic = 0,8mm l = 10mm D27, D33, D34, D39, D40 E20, E22, E23, E28, J8 E22, E23, E28, J8 E32, E33...
- Page 9 9/10 53 133 D28, D29 D28, D29 D1, D13, D15, D25 6 sets D19, D20, D21, D22, Deck...
- Page 10 10/10 53 133 D35, D36 D35, D36 2 sets Related products: 53 135 Musashi floor plates 1/350 53 134 Musashi railings 1/350 © EDUARD M.A. 2015 Made in Czech Republic www.eduard.com...
