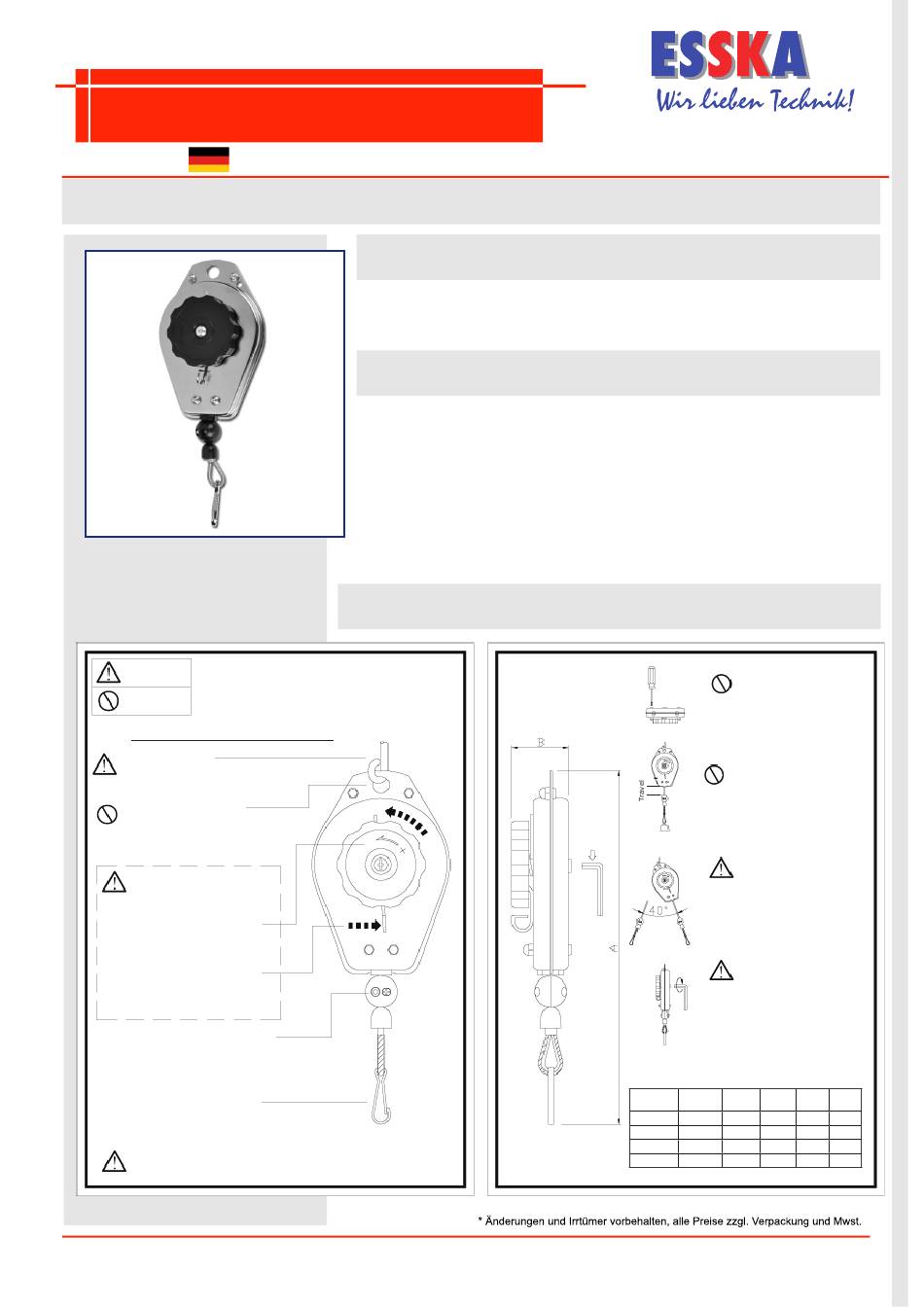

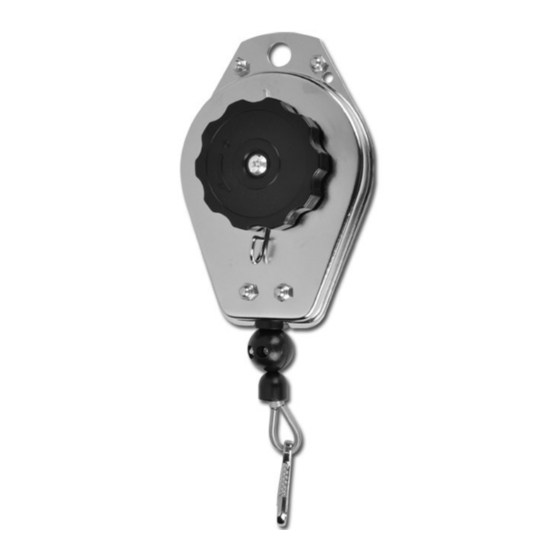

Air-Schlauchfederzug RASB - Tragkraft 0,6-5 kg
Air-Schlauchfederzug
Art.-Nr.: 952112000000
OPERATING MANUAL
CAUTION
RASB1200/RASB2000/
RASB3000/RASB5000
Prohitibion
Read this manual before use
Install into a
closed and solid fixture.
This hole is used for
hanging, do not lock tightly
for wider operation direction.
Take load off before
adjusting.
The + means the turning
direction to increase capacity.
Only press the spring
1 to 3 cm to decrease capacity.
Loosen the screws and fasten
the ball in a position of rope.
Load the tool with the
closed hook.
Temperature: -10 ºC ~ 50 ºC
ESSKA.de GmbH * Borstelmannsweg 175 * D-20537 Hamburg * Tel.: +49 (0)40-731 036-0 * Fax: +49 (0)40-731 036-50
ESSKA.se Teknik AB * Strandvägen 2 * S-671 51 Arvika * Tel.: +46-(0)570-711622 * Fax: +46-(0)570-711612
Einsatzbereich
• Federzug ideal für Vormontageplätze, bei denen z.B. Stabschrauber zum
Einsatz kommen
Beschreibung
• Isolierte Aufhängung mit dreh- und schwenkbarem Schraubkarabinerhaken
• formstabiles Gehäuse mit Sicherungskette
• Traglastbereich - 0,6 kg bis 5,0 kg
• Seilauszug - 1,5 bis 1,6 m
Technische Daten / Gebrauchsanweisung
Web: www.esska.de
Mail: info@esska.de
Prohibition of disassembly.
Don't twist and rub the
cordage with cable during
travel.
Don't load over its capacity.
Only for
Loading
RASB5000
Large angle using will
debase the wire rope's
life.
Under 20º is better.
To increase capacity
of RASB5000, turn the
spindle clockwise using
the allen key.
Model Capacity Weight
(kg) (kg)
RASB1200 0.6~1.5 0.52
RASB2000 1.0~2.0 0.53
RASB3000 1.5~3.0 0.53
RASB5000 3.0~5.0 0.81
.de
.de
Travel A B
(m) (mm) (mm)
1.4 240 44
1.4 240 44
1.1 240 44
1.1 290 47
