www.sukcesgroup.pl
In order to fully explore available functions of GAMMA series please take a moment andread this manual before using the device.
GAMMA reciver are compatible with all YOODA brand devices.
1. General information

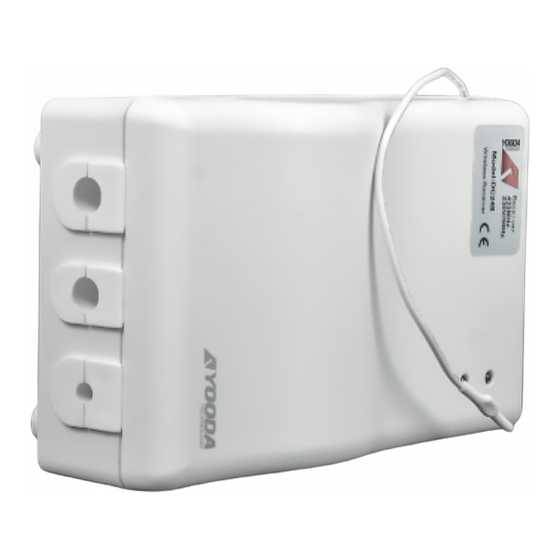

Single-channel GAMMA X wall-mounted control unit (GAMMA_X_1Cw)
Radio receiver range is a variable value and can differ from declared values depending on conditions in which device
operates. Possible sources of changes in range are building construction, interference caused by other radio transmitters
etc.
2. Detailed description
GAMMA_X_1Cw
1. Control:
can control single motor
2. Memory:
up to 20 transmitters
3. Range:
200 meters outdoor,
35 meters indoor
4. Power supply:
230 V / 50 Hz
5. Output voltage:
230 V / 50 Hz
6. Output power:
500 W
7. Dimensions:
130 x 80 x 44 mm
8. Operating temperature:
from -20°C to 50°C
9. Protection degree:
IP 30
10. Work mode choice
(pulse or standard mode)
11. Switch connect.
(pulse or standard)
12. Lighting connect (max 250 W)

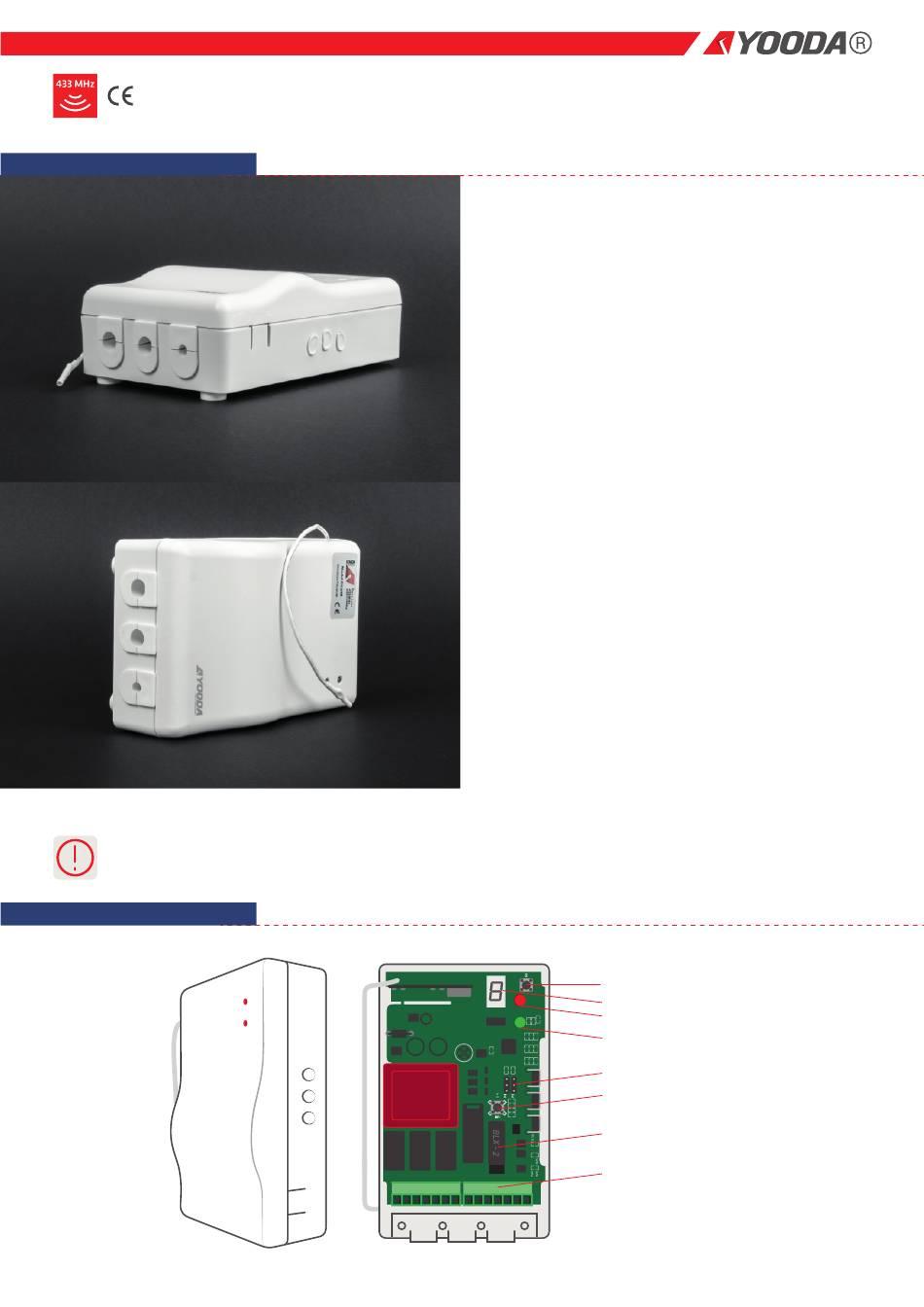

J3
J1
J2
1
Programming button (S5)
Digital display
LED diode (power)
LED diode (programming)
Jumpers (set reaction of the unit to
the photocell signal and work mode)
Programming button (S4)
Fuse 10A/250V
Screw clamps
Advertisement
Table of Contents
Summary of Contents for YOODA GAMMA X 1Cw
- Page 1 GAMMA_X_1Cw www.sukcesgroup.pl In order to fully explore available functions of GAMMA series please take a moment andread this manual before using the device. GAMMA reciver are compatible with all YOODA brand devices. 1. General information 1. Control: can control single motor 2.
- Page 2 3. Connection Remember to set the correct direction of the motor work, because the photocell operates only in the down direction. The neutral motor cable must be connected to the unit otherwise it will not work properly. UP DOWN lightning power: (max.250W) 230V / 50Hz...
- Page 3 Connecting the photocells "A" to the GAMMA X receiver RECEIVER TRANSMITTER max 5 m UP DOWN Connecting the photocells "B" to the GAMMA X receiver RECEIVER TRANSMITTER max 5 m UP DOWN 5. Programming of automatic door closing Automatic closing is disabled when you set the unit to "0". Automatic time door closing has been set.
- Page 4 The selected automatic door closing option has been set. Press Press Press and hold Press To confirm hold programming button S4. programming button S5 S5 programming button programming button S5 the programming button S5 to choose number 7. for about 2 seconds. to choose number 0 or 1.
- Page 5 9. Programming work mode of the transmitter It is possible to set independent work mode for each programmed transmitter. Transmitter work mode has been set. Press Press programming button S5 Press and hold Press programming button S5 To confirm hold programming button S4.
