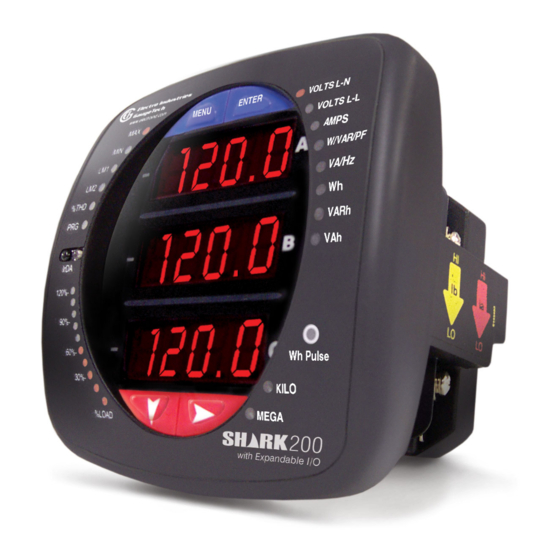

Shark 200 Quick Start Manual

CAUTION! Installation of the Shark® 200 meter must be performed only by qualified personnel who fol-
low standard safety precautions during all procedures. Those personnel should have appropriate training
and experience with high voltage devices. Appropriate safety gloves, safety glasses and protective cloth-
ing are recommended.
During normal operation of the Shark® meter, dangerous voltages flow through many parts of the unit, includ-
ing: Terminals and any connected CTs (Current Transformers) and PTs (Potential Transformers), all I/O Modules
and their circuits. All Primary and Secondary circuits can, at times, produce lethal voltages and currents. Avoid
contact with any current-carrying surfaces.
Do not use the meter or any I/O device for primary protection or in an energy-limiting capacity. The meter can
only be used as secondary protection.
IMPORTANT! Refer to your meter's Installation and Operation Manual for additional safety warnings before
performing installation, wiring, or maintenance of your meter. See the link to the manual, below.
NOTE: This Quickstart Guide gives basic installation, wiring, and programming instructions.For additional meter oper-
ation and programming information, refer to your meter's Installation and Operation Manual and the Communicator
PQA , MeterManagerPQA
TM
User Manual:
https://www.electroind.com/products/shark-200-power-and-energy-meter/
From the webpage, click Technical Documents>User Manual.
Software Manual:
https://www.electroind.com/products/communicatorpqa-power-monitoring-software/
From the webpage, click Technical Documents>User Manual.
CommunicatorPQA
TM
https://www.electroind.com/products/communicatorpqa-power-monitoring-software/
From the webpage, click Download ComPQA Pro. To get a Professional license for the software, email sales@elec-
troind.com or call 516-334-0870.
All EIG's metering and software products' literature can be accessed from:
https://www.electroind.com/power-metering-products/
For software and metering integration, EIG's Technical Support Engineers are available on an hourly or daily basis to
help with typical commissioning assistance, which includes:
• Verifying meter installation and wiring.
• Verifying proper system integration.
• Working with 3rd parties to ensure cross compatibility.
• Advising users on best practices for optimal implementation.
You can reach Technical Support from 8 a.m. to 8 p.m. EST, Monday-Friday, at 516-334-0870.
Shark® 200 Meter Quickstart Guide
, and EnergyPQA.com
TM
Setup Software:
Software User Manual on EIG's website:
TM
#
Doc E149703
Shark® 200 Meter Quickstart
V.1.11 QS - 1
