User Manual

NOTE: To ensure this system works safely and to its fullest potential, please read the User Manual

carefully before use and keep it handy for future reference.

CAUTION:

To assure this player will work at its best, please

read this user's manual carefully before operation

and keep for future reference.

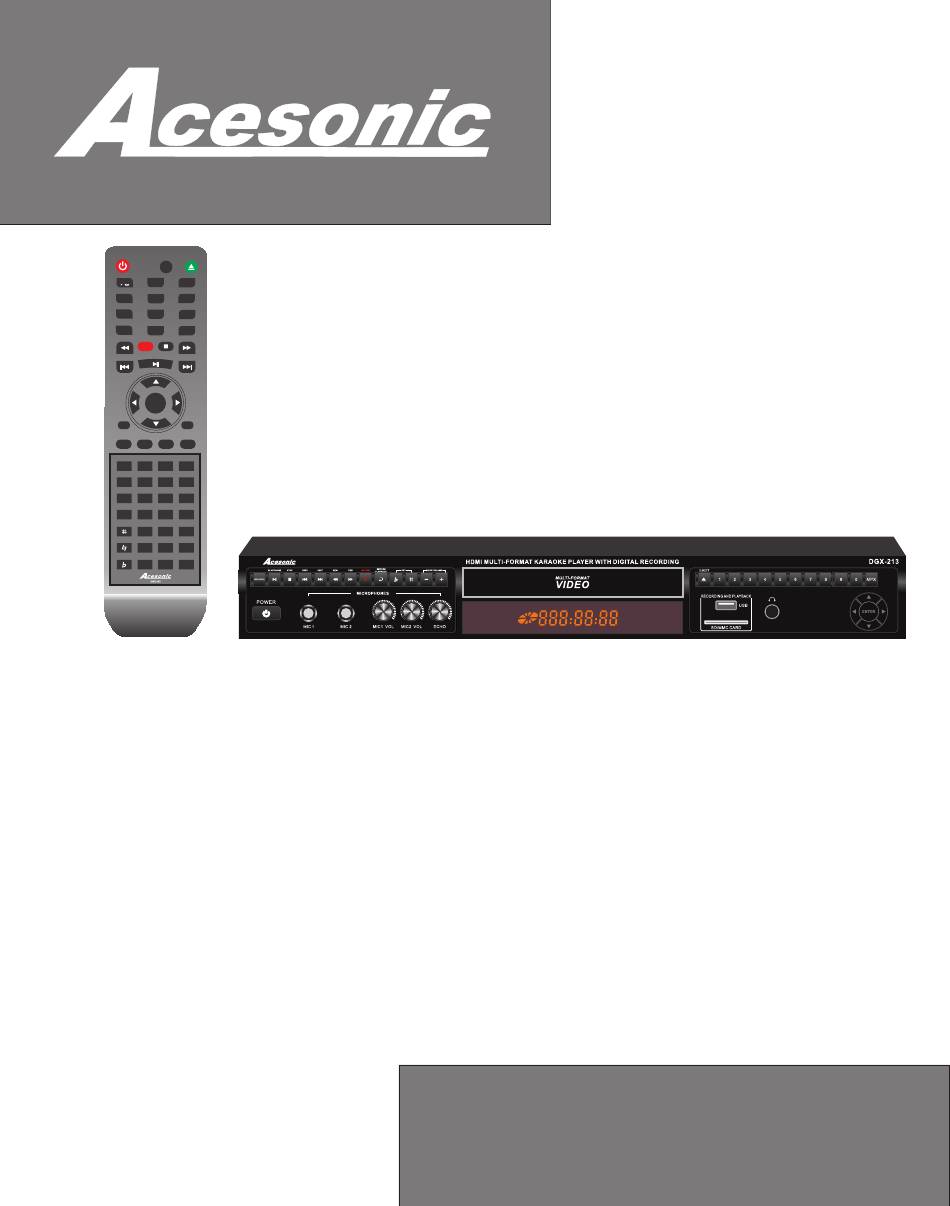

DGX-213

HDMI Multi-Format Karaoke Player

with 4X CDG to MP3G Converter with Digital Recording

v.1.0

www.acesonic.com

Table of Contents

Troubleshooting

Need help?

Do you have a question about the DGX-213 and is the answer not in the manual?

Questions and answers

Lorena

August 16, 2025

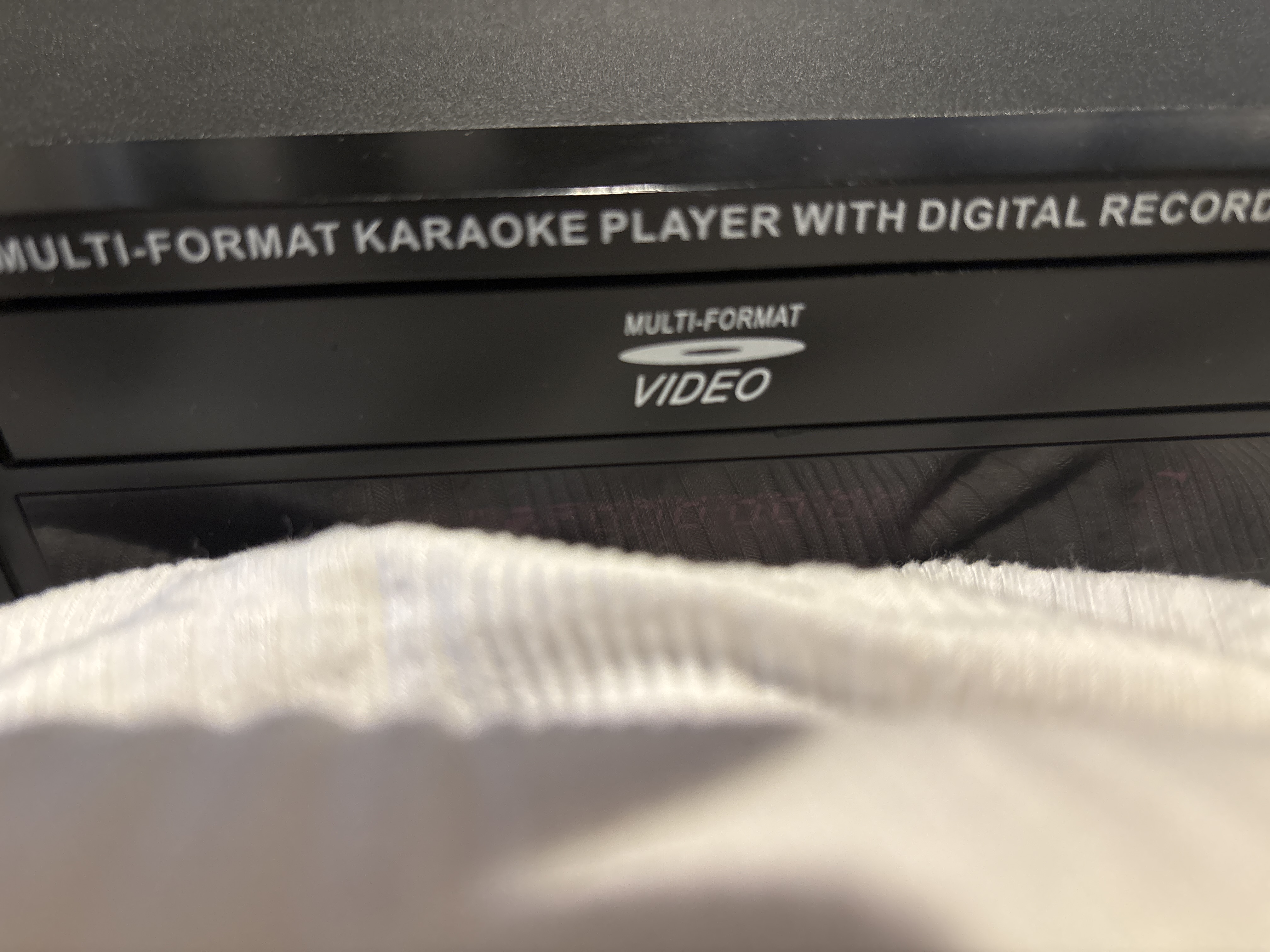

Disc door would not open

Summary of Contents for Acesonic DGX-213

Page 1 DGX-213 ® HDMI Multi-Format Karaoke Player with 4X CDG to MP3G Converter with Digital Recording OPEN POWER MUTE CLOSE CLEAR PROGRAM ENTER MENU TITLE RETURN REPEAT PLAYBACK SEARCH AUDIO STEP DISC SETUP CARD MUSIC PHOTO VIDEO SWITCH ZOOM ANGLE SUBTITLE...
Page 2: Table Of Contents
Care and cleaning: Use a slightly damp cloth to clean the front panel and other surfaces of Playback from USB and SD Cards ...9 the DGX-213. Do not use the device in areas Basic Operation: Karaoke.......10 that are wet or prone to dampness. Always allow enough room below and around the Basic Operation: System Setup .....11...
Page 3: Important Information Before You Start
CD+Graphics, Audio CD, HDCD Power Cord: When you are away on travel or MP3, MP3+G, JPEG, Kodak, MPEG won't use the DGX-213 for an extended period of time, unplug the unit from the wall Above media is playable on the following discs: outlet.
Page 4: Compatible Video Formats
Before Operation Notes Regarding Discs With some DVDs, the player starts playback automatically after inserting the disc, whether or not PLAYBACK CONTROL is on or off. The image may be poor, noisy or grainy due to defects on the actual disc, and some functions as described in this manual may not be possible on all discs.
Page 5: Front Panel Functions And Operations
Multi-For mat Karaoke Player VIDEO & AUDIO OUTPUT VIDEO support resolution 此处空出2 0 mm 贴QC贴纸 RISK OF ELECTRIC SHOCK Cb/Pb Cr/Pr Model:DGX-213 higher than 720i. DO NOT OPEN Voltage:AC100~240V VGA OUTPUT Power:25W S/N:___________________ www.acesonic.com Design in U.S.A...
Page 6: Remote Control Functions
Remote Functions 1. POWER BUTTON - Turns the player on or off. 2.NUMBER KEY 0-9 - Input numbers for track selection or programming purposes. In the PBC function, the number keys are also used to select 3.CLEAR-When entering a track number or name,press to clear the last entry.
Page 7 Remote Functions 24.LOWER BUTTON(b)-lower the key by a half tone. 25. STOP BUTTON - Press to STOP playback. ENTER & DIRECTION BUTTONS - Use the direction buttons for navigation in selection menu and use the enter button to confirm entry or selection. 27.
Page 8: Player Connections
3 for supported files and formats when using the USB/SD CARD MODE. NOTE: Your DGX-213 has a variety of ways to provide you audio and video. The RCA Composite cable is included with the unit, and you can buy cables from Acesonic USA, Inc. to access the unit's HDMI,S- video, Component Video and digital output formats (coaxial and optical).
Page 9 SURROUND AUDIO OUTPUT VIDEO & AUDIO OUTPUT VIDEO support resolution 此处空出2 0 m m 贴QC贴纸 RISK OF ELECTRIC SHOCK Cb/Pb Cr/Pr Model:DGX-213 higher than 720i. DO NOT OPEN Voltage:AC100~240V VGA OUTPUT Power:25W S/N:___________________ www.acesonic.com Design in U.S.A...
Page 10: Basic Operation: Playback
(each MP3G contains 2 files adding up to 4,000 files; The Disc will play automatically .cdg +.mp3 = MP3G). The DGX-213 may support 2.5” external hard drives that do not require an external power source but we cannot guarantee it will support all models. Acesonic...
Page 11: Basic Operation: Karaoke
Basic Operation Karaoke - USING MICROPHONE The system has 2 microphone inputs for connecting up to 2 microphones at once. Karaoke - To recording singing(See Page12 -13): 1. Play MP3, CD,CDG,MP3G or VCD song from disc, MP3, MP3G song from USB or SD card.
Page 12: Basic Operation: System Setup
Basic Operation SYSTEM SETUP Unload the Disc then: Press to open the SETUP KEY Setup MENU. TV SYSTEM 1) Press ] to choose Direction KEY “TV SYSTEM” 2) Press ] to show Direction KEY Sub-MENU. 3) Press [ / ] to select the from [NTSC/ PAL/PAL60/AUTO] . Direction KEY POWER RESUME 1) Press...
Page 13: Basic Operation: Language Setup
Basic Operation LANGUAGE SETUP Unload the Disc then: Press to open the SETUP KEY Setup MENU. Press ] to select the Direction KEY “LANGUAGE SETUP”. ub MENU: OSD LANGUAGE AUDIO LANGUAGE SUBTITLE LANGUAGE MENU LANGUAGE OSD LANGUAGE 1) Press ] to choose Direction KEY “OSD LANGUAGE”.
Page 14 VIDEO SETUP Unload the Disc then: Press to open the Setup MENU. SETUP KEY Press ] to select the VIDEO SETUP. Direction KEY The Sub-MENU BRIGHTNESS - Select from level 0 ~12 CONTRAST - Select from level 0~12 HUE - Select from level -6~+6 SATURATION - Select from level 0~12 SHARPNESS - Select from level 0~8 SPEAKER SETUP...
Page 15: Recording & Cdg Disc Ripping
BASIC RECORDING OPERATION FOR MP3+G WHAT IS MP3+G An MP3+G file is a karaoke-based file format that consists of two parts, an audio file in MP3 format and a graphics file that displays on-screen lyrics. These two files combined are called an MP3+G file. An MP3+G file will occupy about the same disc space required for a standard CD+G track.
Page 16: Ripping Cdg Disc Into Mp3G Files
BASIC RECORDING OPERATION FOR MP3+G 4. Next, go to TRACKS, to select one or few or all tracks which you desire to transfer to MP3+G format. Click here if you want to check/uncheck all tracks 5. Go to START, you will see the ripping information. To start the ripping process, press ENTER. There are two status bars showing the progress while ripping.
Page 17: Other Advanced Operations
Advanced Operations Playing From A Specific Position Repeating Playback Press REPEAT. If you press REPEAT in stop mode, Locating a desired scene from the DVD menu press PLAY to start playback. Each time you press DVD discs generally have their own menus showing the REPEAT, the repeat mode cycles among REP-ALL, REP- contents of the disc.
Page 18: Creating Song List
Searching by name: Advanced Operations You can search songs by inputting a song name in USB/SD CARD mode after you create the song list file Create Song List: (see Page6, #43 for more detail) 1. In the Disc/USB/SD Card mode, you can have a create your own song list from current MP3/MP3G songs in the disc/USB/SD Card.
Page 19: Troubleshooting Chart 1
(pages 18 and 19), call our Acesonic U.S.A. service center at (626) 820-0645 to inquire about technical support. We will make every effort to diagnose and repair your unit, restoring it to full operability. If a DGX-213 under warranty cannot be repaired, we will replace it per the warranty agreement.
Page 20: Troubleshooting Chart 2
Troubleshooting Symptom Possible Causes Karaoke Operations 11. There's no sound from * Only HDMI & RCA mix output will support Karaoke Output. See page 6. the microphone * You need to adjust the volume of microphone. 12. There's feedback and screeching * The microphones are too close to the speakers 13.
Page 21: Safety, Warnings And Precautions
D)If necessary, consulting the dealer or an will not be used for long periods of time. experienced radio/TV technician for help. 2. IMPORTANT: When connecting the DGX-213 to audio equipment, use only high-quality, shielded cables such as what is supplied with this product.
Page 22 Refer all servicing to qualified service personnel. Note: With the proper care and maintenance, your DGX-213 will give you years of dependable, enjoyable use. Make sure you are using proper power sources and good cables at all times.
Page 23: Information
Player with Digital Recording 161 S. 8th Avenue One (1) Year Manufacturer Warranty Lifetime Technical Support City of Industry Designed in U.S.A. CA 91746-3208 Technical Support: (626) 820-0645 U.S.A. techsupport@acesonic.com Web site: www.acesonic.com © 2012 Acesonic USA, Inc. All rights reserved...
