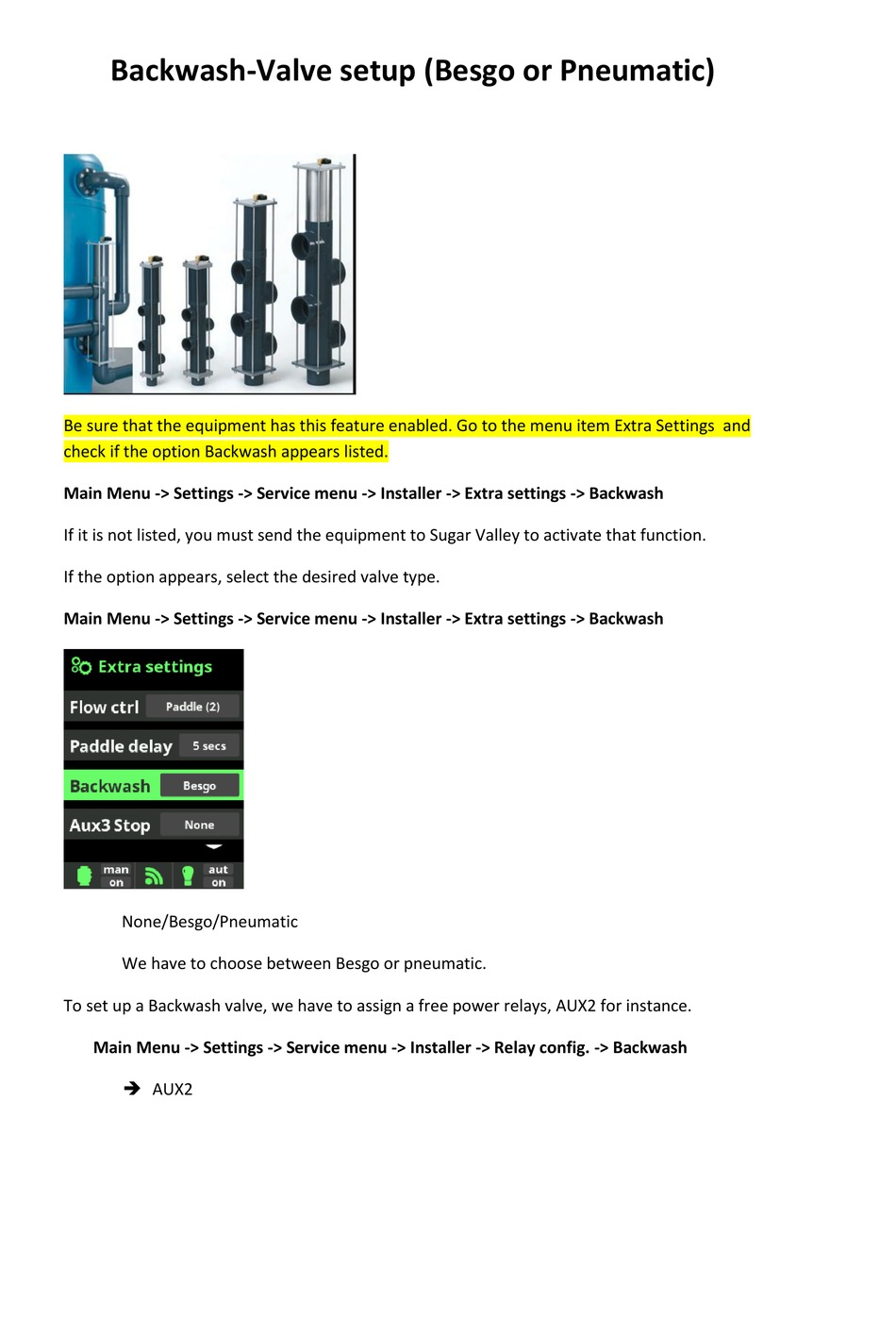

Backwash-Valve setup (Besgo or Pneumatic)
Be sure that the equipment has this feature enabled. Go to the menu item Extra Settings and
check if the option Backwash appears listed.
Main Menu -> Settings -> Service menu -> Installer -> Extra settings -> Backwash
If it is not listed, you must send the equipment to Sugar Valley to activate that function.
If the option appears, select the desired valve type.
Main Menu -> Settings -> Service menu -> Installer -> Extra settings -> Backwash
None/Besgo/Pneumatic
We have to choose between Besgo or pneumatic.
To set up a Backwash valve, we have to assign a free power relays, AUX2 for instance.
Main Menu -> Settings -> Service menu -> Installer -> Relay config. -> Backwash
AUX2
Advertisement
Table of Contents
Summary of Contents for sugar-valley Oxilife OX0
- Page 1 Backwash-Valve setup (Besgo or Pneumatic) Be sure that the equipment has this feature enabled. Go to the menu item Extra Settings and check if the option Backwash appears listed. Main Menu -> Settings -> Service menu -> Installer -> Extra settings -> Backwash If it is not listed, you must send the equipment to Sugar Valley to activate that function.
- Page 2 Now is time to configure the way of cleaning the filter, if it is manual or automatic, the cleaning time in seconds, and the periodicity. Main Menu -> Filtration -> Filter cleaning -> Mode Manual Interval in seconds Shortcut: on/off By the manual mode, the user starts the cleaning manually and it lasts until the specified interval is reached.
- Page 3 Automatic Start: Activation time Interval in seconds Frequency: Daily/ N days Shortcut: on/off By the automatic mode, the equipment starts the cleaning at the specified time/frequency and it lasts until the specified interval is reached. We have the possibility to have a direct access to this function from the home screen. To turn it on, press and hold for a few seconds the "+"...
