- Page 1 ADO EBIKE USER MANUAL BOOK Please keep the instruction manual properly! To ensure your safety, please read the Attention! instruction manual carefully before using the electric bicycle to better understand the performance of the electric bicycle.
- Page 2 Required preface Dear user friends: First of all, thank you for choosing to buy our products. All the staff of our company express their heartfelt thanks for your choice! This manual will introduce you to the common sense and maintenance methods of electric bicycles produced by our compa- ny.
- Page 3 Special tips for using security Dear users, for your safety and prevention of safety accidents, please read and follow the following tips: I.When using electric bicycles, you should abide by traffic regulations and pay attention to driving safety. (1)It is forbidden for people under 16 years old to drive electric bicycles on the road; (2)E-bikes should be driven on non-motorized lanes, lower than the maximum speed specified by local laws and regulations.
- Page 4 Special tips for using security (4)safe use method of charger: It is forbidden to place any items on the charger; It is forbidden to put any liquid or metal into the charger; It is strictly prohibited to disassemble and modify the charger; When charging, insert the output of the charger into the charging port of the battery pack first, and then insert the AC power plug of the charger into the Mains socket;...
- Page 5 Precautions before riding Dear users, for your safety and to prevent safety accidents, please do the following checks before riding. If there is any abnormality，please repair it in time or find a professional repair! (1)Inspection of power supply circuit and lighting circuit: Check whether the power supply circuit, lighting circuit and device are damaged;...
- Page 6 Adjustment methods of each part I.Adjustment of front and rear brake system: (the adjustment method of front and rear brakes is the same) 1.The rear integrated disc brake(see figure 1); Adjust the upper and lower nuts of the disc brake to make the spacing between disc brake and brake caliper 1.5-3mm, adjust the height of disc brake, and then tighten the nuts.
- Page 7 Adjustment methods of each part V.The folding and expansion methods of folding bicycle are as follows: (the expansion steps are from ⑩ to ①) ① Rotating T handle ②Lower by vertical tube ③Open safety lock ④Rotate vertical tube ⑤ Folding riser ⑥...
- Page 8 Adjustment methods of each part ⑦ Folding pedal ⑧ Open the frame and fold safety lock ⑨ Folding frame ⑩ Finish folding VI.Battery installation The battery is mainly composed of two pieces, cell and protection board PCM (power battery is generally called battery management system BMS).
- Page 9 Adjustment methods of each part Note: Before using the bicycle, insert the key and turn it counterclockwise by 45°, the battery is activated. Finished using the bicycle, turn the key 45° clock wise, the battery is powered off, and take out the key. Remove the battery step, insert the key, press it upward and then rotate it 90°...
- Page 10 Electric bicycle fault inspection and troubleshooting methods Serial Number Fault description Failure cause analysis Troubleshooting methods 1,Low battery voltage 1, Fully charge the battery Speed regulation failure 2,Speeder failure 2.Send to maintenance station or speed less than 10 km/h 3,Transmission Group failure for repair 1, Take out the battery box and 1,Loose battery wiring...
-
Page 11: Maintenance And Repair
Maintenance and Repair Daily maintenance: 1.The vehicle should be kept clean and clean, and the vehicle should be wiped with dry cloth in time after being drenched to avoid rusting of parts and short circuit of electrical components. 2.Always check the air storage capacity of the tire to keep it in normal use. 3.The main transmission parts such as front axle, a roar axle, conter axle, front fork, Flywheel and electric hub should be checked and adjusted frequently to keep the transmission parts flexible without impact sound and noise;... - Page 12 After-sales service and warranty scope Provide correct operation methods and maintenance items, provide valid car purchase tickets, warranty cards, and the address and contact number of the warranty unit. 2.Users should operate correctly according to the product manual. Any performance failure caused by production quality，according to relevant laws and national Three Guarantees regula- tions，the company shall uniformly fulfill the Three Guarantees obligations.
-
Page 13: Maintenance Record
Maintenance record Date Maintenance content Remarks Warranty description: 1.All parts of the vehicle will be guaranteed strictly according to the warranty period. 2.The warranty period starts from the factory date. 3.If you unpack the controller, charger, battery and motor privately, no warranty will be given. 4.Other parts of the whole vehicle will not be guaranteed except for three months due to quality problems. -
Page 14: Electrical Schematic Diagram
Electrical schematic diagram Charger Battery Power negative P+ Fuse charging interface Fuse Motor line Motor Hall Front brakes handle power-off switch three-way switch Taillight Rear brake handle power-off switch Controll Transfer handle Headlight switch speaker switch electric door lack Headlight Anti-theft Power supply device+... - Page 15 A16 Product Description Bicycle type Folding Electric Bicycle Tires Size: 16*1.95 inches Max Speed: 25km/h Electric Range: <45km Assisting Rang: <70km Load Capacity: 120kg Product Net Weight: 20kg Product Gross Weight: 24kg overall Unit:(L*W*H) 144*53*108cm After Folding:(L*W*H) 79*38*58cm Packing size:(L*W*H) 820*395*640mm Hardware Configuration Body Material:...

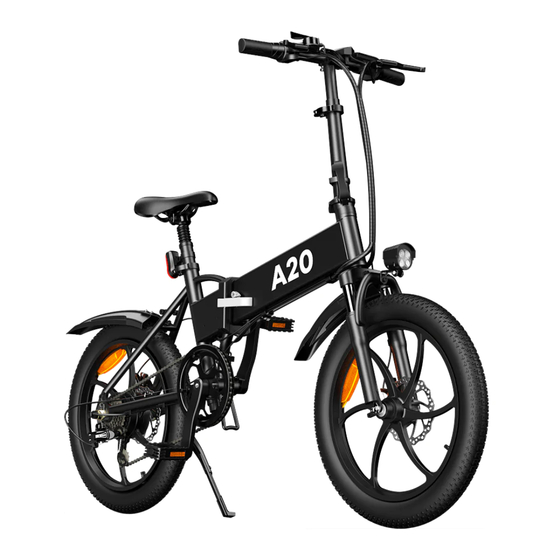

- Page 16 A20 Product Description Bicycle type Folding Electric Bicycle Tires Size: 20*1.95 inches Max Speed: 25km/h Electric Range: <60km Assisting Rang: <80km Load Capacity: 120kg Product Net Weight: 21kg Product Gross Weight: 25.5kg overall Unit:(L*W*H) 155*53*110cm After Folding:(L*W*H) 90*43*70cm Packing size:(L*W*H) 875*380*660mm Hardware Configuration...
- Page 17 A20F Product Description Bicycle type Folding Electric Bicycle Tires Size: 20*4.0 inches (Fat tire) Max Speed: 25km/h Electric Range: <50KM Assisting Rang: <70KM Load Capacity: 120kg Product Net Weight: 29kg Product Gross Weight: 34.5kg Overall Unit:(L*W*H) 174*53*120CM After Folding:(L*W*H) 98*45*77cm Packing size:(L*W*H) 1010*490*710mm Hardware Configuration...
