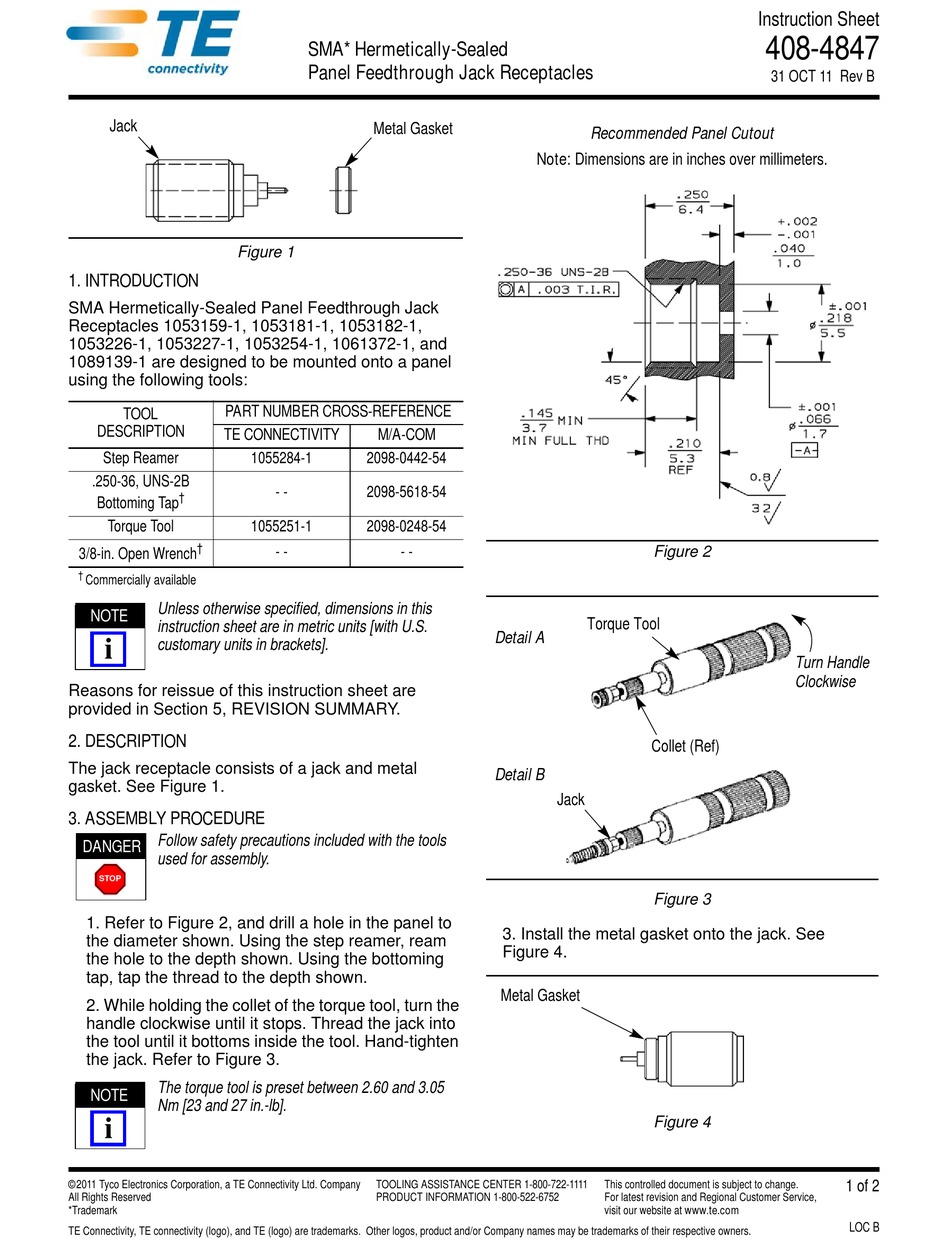

TE Connectivity 1053159-1, 1053181-1, 1053182-1 Instruction Sheet

Hermetically-sealed panel feedthrough jack receptacles

Advertisement

Jack
Figure 1

1. INTRODUCTION

SMA Hermetically-Sealed Panel Feedthrough Jack
Receptacles 1053159-1, 1053181-1, 1053182-1,
1053226-1, 1053227-1, 1053254-1, 1061372-1, and
1089139-1 are designed to be mounted onto a panel
using the following tools:
PART NUMBER CROSS-REFERENCE
TOOL

DESCRIPTION

TE CONNECTIVITY
Step Reamer
.250-36, UNS-2B
Bottoming Tap
Torque Tool
3/8-in. Open Wrench
Commercially available
Unless otherwise specified, dimensions in this
NOTE
instruction sheet are in metric units [with U.S.
customary units in brackets].
i
Reasons for reissue of this instruction sheet are
provided in Section 5, REVISION SUMMARY.
2. DESCRIPTION
The jack receptacle consists of a jack and metal
gasket. See Figure 1.

3. ASSEMBLY PROCEDURE

Follow safety precautions included with the tools
DANGER
used for assembly.
STOP
1. Refer to Figure 2, and drill a hole in the panel to
the diameter shown. Using the step reamer, ream
the hole to the depth shown. Using the bottoming
tap, tap the thread to the depth shown.
2. While holding the collet of the torque tool, turn the
handle clockwise until it stops. Thread the jack into
the tool until it bottoms inside the tool. Hand-tighten
the jack. Refer to Figure 3.
The torque tool is preset between 2.60 and 3.05
NOTE
Nm [23 and 27 in.-lb].
i
© 2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.
SMA* Hermetically-Sealed 
Panel Feedthrough Jack Receptacles
Metal Gasket
M/A-COM
1055284-1
2098-0442-54
- -
2098-5618-54
1055251-1
2098-0248-54
- -
- -
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Recommended Panel Cutout
Note: Dimensions are in inches over millimeters.
Figure 2
Torque Tool
Detail A
Collet (Ref)
Detail B
Jack
Figure 3
3. Install the metal gasket onto the jack. See 
Figure 4.
Metal Gasket
Figure 4
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com
Instruction Sheet
408-4847
31 OCT 11 Rev B
Turn Handle
Clockwise
1 of 2
LOC B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1053159-1, 1053181-1, 1053182-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for TE Connectivity 1053159-1, 1053181-1, 1053182-1

  • Page 1 PRODUCT INFORMATION 1-800-522-6752 For latest revision and Regional Customer Service, *Trademark visit our website at www.te.com LOC B TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.
  • Page 2 408-4847 4. REPLACEMENT AND REPAIR 4. Thread the jack into the connector housing by turning the handle of the torque tool clockwise until Discard and replace any defective or damaged jack the handle releases. See Figure 5, Detail A. receptacles or metal gaskets. 5.
