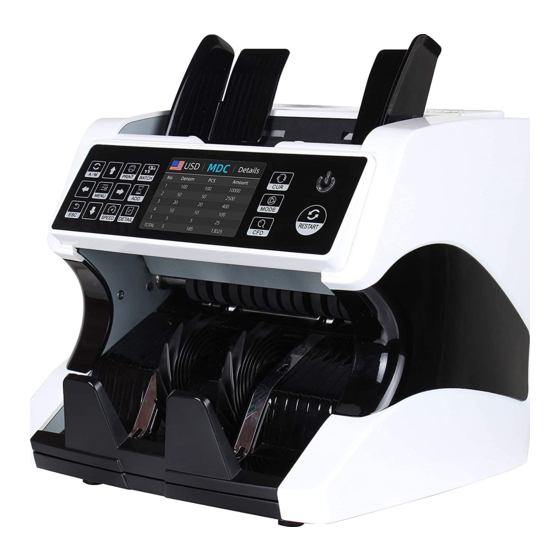

Premax PM-VC110 User Manual

Multi-currency value counter

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Multi-Currency Value Counter

User Manual

Table of Contents

Need help?

Do you have a question about the PM-VC110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Premax PM-VC110

Page 1 Multi-Currency Value Counter User Manual...
Page 2: Table Of Contents
Preface Thank you for purchasing the multi-currency value counter. We recommend reading all information in the user guide to become familiar with this product to ensure optimize the cash processing high efficiency when using the machine, fully understand the safety information and operation sequence, please keep the manual properly for future reference.
Page 3: General Introduction
1. General Introduction The machine is the perfect solution for a fast, accurate and reliable banknote counting process. It has a convenient user-friendly interface, touch control panel and a variety of counting modes. All of these features come with a strong built-in counterfeit detection and high level of performance.This machine makes an invaluable aid in banks, casinos, supermarkets, movie theaters, retail shops and many other environments where banknotes are used.
Page 4: Features
• Please be careful to avoid any foreign objects, such as coins or staples, falling into the unit, as it may cause damage to the machine. 4. Features • With UV, MG, MT, IR, DUAL CIS detection • With touch control panel and 3.5 inch TFT display •...
Page 5: Machine Overview
6. Machine Overview 7. Operation 7.1 Getting Started 1) Connect the power cable to the machine and the power outlet. 2) Press the Power Switch button to I to switch on. 3) After a short boot-up and self-test, machine enters the main menu.
Page 6 Set the banknote hopper guides so that the sides of the banknotes are enclosed. Organize your banknotes in a neat pile, make sure the backside of the pile is straight. Place the banknotes between the guides.The machine will automatically start counting.
Page 7: Control Panel
8. Control Panel Select currency, AUTO, MULT mode. Select counting mode: MDC(Mixed Denomination Count), SDC(Single Denomination Count), CNT(COUNT). Keeping press for 3 seconds to select counterfeit detection sensitivity level. Turn on/off machine. Start counting/clear counting result. Select auto/manual counting Turn on serial number recognition function; In BATCH mode, press it to increase batch number by 1;...
Page 8: Functions
In BATCH mode, press it to increase batch number by 10; Move cursor left in Menu. Long press until hear “Di” to enter menu and press it to confirm selection. In BATCH mode, press it to decrease batch number by 10; Move cursor right in Menu.
Page 9 2) Sort Mode This mode is available by pressing the MODE button until “SDC’’ is displayed on the home screen. SORT mode allows the user to count the value and quantity of banknotes sorted per denomination. Denominations that are different than the first counted banknote will be rejected by machine.
Page 10: User Menu
This function is available by pressing the SN button on the control panel. The serial number scan function records the unique serial numbers of the counted banknotes. Serial number scanning is available for the following currencies: USD, EUR, GBP, CNY, TRL, IDR, etc. 10.User Menu Keep pressing MENU button for 3 seconds, you will see user menu with the following main interface:...
Page 11 You can use the arrows to select next submenu and press MENU button to confirm, and press ESC to quit. 1) If select “ Read Sensor Values”, you will see the following interface. This interface is only for serving purpose to see whether any sensor has a malfunction 2) If select “CIS Calibration”, you will see the following interface to guide you how to calibrate CIS sensors.
Page 12 4) Currently the password setting can not be changed by customers. 5) If select “Auto Diagnostic”, you will see the following interface. This mode is to be used for production and professional servicing purpose. 6) If select “PCS Counted and Reset” you will see the following interface. This interface is to tell the total quantity of counted bills in this counter since last clearing to zero.
Page 13 cursor to select, and up and down cursor to change the sensitivity levels. The currency code in the right part is indicating for which currency you are operating. (Please do not change without communicating with the manufacturer or your local distributor) 9) If select “IP Address”, you will see the following interface.
Page 14: Adjusting Feeding Gap
10.3 Current Time Setting If select “Current time setting” under the main menu, you will see the following interface. 10.4 Select The Language If choose “select the language” under the main menu, you will see the following interface. 11. Adjusting Feeding Gap When counting errors such as double notes, chained or slant notes occur frequently, or when banknotes are not being fed smoothly through the machine, it may be necessary to adjust the hopper adjusting screw.
Page 15: Collecting Image Data
• When the banknotes are not being counted smoothly: increase the gap between the resistance wheel and the banknote twiddling wheel gear by turning the adjusting screw clockwise (+). • When counting errors such as ‘double notes’ or ‘chained notes’ occur often, decrease the gap by turning the adjusting screw anti-clockwise (-) ATTENTION: Make only minor changes at once.
Page 16: Error Messages
2) Insert USB drive to the USB port on back of machine and then turn on machine, machine will start to update automatically. 3) After software update finish, the display will show this interface as below: 14.Error Messages The machine will perform a self-test when turned on. Most of the following messages are caused by a sensor blocked by banknotes or dust.
Page 17 Most operational problems can be avoided by regular care and preventative maintenance. Taking regular care of the machine will significantly increase its lifetime. To avoid problems, make sure there are no metal clips or rubber bands in the bills being counted.
