Summary of Contents for Puretec PT Series
- Page 1 User Guide PT Series Caravan / RV Fresh Water Pump For correct operation & installation, it is essential to observe these instructions. MAY2021...
-
Page 2: Table Of Contents

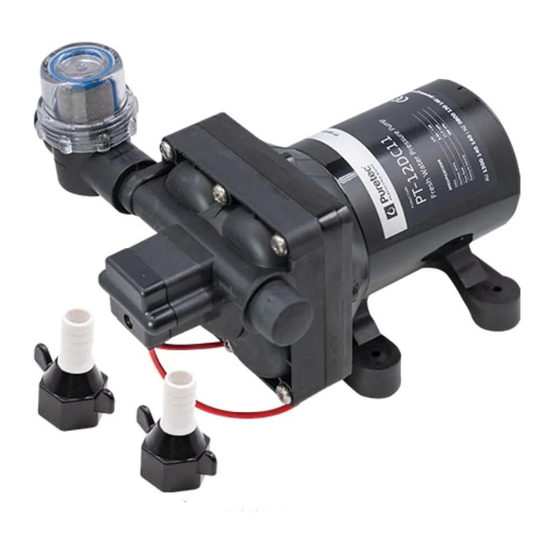

Warranty ................................11 Puretec Customer Service Thank you for purchasing a Puretec PT Series Pump. Your Pump is a proven performer manufactured from only quality materials and components and is ideal for use with Reverse Osmosis systems and other low pressure water filtration systems. -
Page 3: Introduction
Features Introduction The Puretec PT Series Pump is designed to run economically for many years, dependent on the initial installation and periodical maintenance. Features • 4 Chamber diaphragm pump • Bypass to reducing cycling • Dry Run Protection • Automatic operation controlled by pressure switch •... -
Page 4: Installation
If a check valve is installed in the plumbing, it must have an opening pressure of no more than 2 psi (13 kPa). 10. If applying plumbing tape be careful to not overtighten, as they can be sucked into the pump. Installation Setup Manual Copyright © Puretec Pty Ltd 2021... -
Page 5: Electrical Information - Wire Gauges
The use of metal fittings are not recommend. When possible, use the provided plastic fittings. • Do not adjust the bypass personally without the help of a technician or the Puretec Customer Care Team. • Lack of sanitising and maintenance can cause the pump to under perform. Ensure regular maintenance is carried out and winterize the pump at appropriate times, especially before and after a period of storage. -
Page 6: Exploded Diagram
Bracket Before Adjusting the Bypass Please consult Puretec or you local Puretec dealer if the bypass needs adjustment. Improper adjustment of the bypass may damage the pump. The bypass comes preset for optimal operation of the pump. If your application calls for a different setting for the bypass, it may be changed accordingly. -
Page 7: Adjusting The Bypass & Pressure Switch
Do not use with unknown or contaminated water that does not fit the parameters of the system/product as specified by Puretec, for further assistance, contact the Puretec Customer Service Helpline on 1300 140 140 (AU) or 0800 130 140 (NZ). - Page 8 To lower the pressure at which the bypass starts and lower the full bypass pressure, use a 2 mm Allen wrench to turn the bypass screw anti-clockwise to the desired pressure. Installation Setup Manual Copyright © Puretec Pty Ltd 2021...
-
Page 9: Troubleshooting
Motor fails to turn wires. Replace fuse. If replacing the Blown fuse or thermal protection fuse does not work replace tripped. pump. Failed pressure switch. Replace pump. Defective motor. Replace pump. PT Series | Caravan / RV Fresh Water Pump... - Page 10 Accumulation of debris inside Clean out debris. pump or plumbing. Low flow and Worn out pump bearing (possibly pressure. Replace pump. accompanied by loud noise). Punctured diaphragm. Replace pump. Defective motor. Replace pump. 10 Installation Setup Manual Copyright © Puretec Pty Ltd 2021...
-
Page 11: Warranty
Puretec’s discretion, including chargeable inspection and labour costs incurred. Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au.
