Summary of Contents for Furaxa PCIeEXT-16
- Page 1 PCIeEXT-16 Smart PCIe Bus Extender Product Specification and Manual – v1.01 May 29, 2007 Furaxa, Inc. 808 Gilman Street, Berkeley, CA 94710 (925) 253-2969 Fax (925) 253-4894 e-mail : support@furaxa.com URL : www.furaxa.com copyright c 2007 Furaxa, Inc.
- Page 2 TABLE OF CONTENTS 1. WARRANTY..............................3 2. INTRODUCTION:.............................4 3. FEATURES:..............................4 4. INSTALLING THE PCIEEXT-16 INTO A SYSTEM:................5...
- Page 3 (2) years from the date of shipment of the product. During the warranty period, Furaxa, Inc. shall, at its option, either repair or replace hardware, software or firmware products which prove to be defective. This limited warranty does not cover damage caused by misuse or abuse by customer, and specifically excludes damage caused by the application of excessive voltages to the inputs and/or outputs of PCI boards.

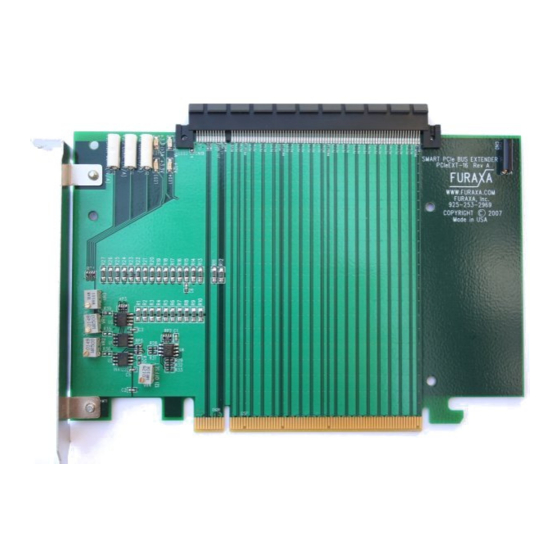

- Page 4 2. INTRODUCTION: The PCIeEXT-16 is a high-speed 16 lane PCI-express (PCIe) Bus Extender Card supporting x16, x8, x4, x2 and x1 PCIe Cards (referred to as Units-Under-Test, or UUTs). PCIe signal integrity requirements are met with high-speed trace layout parameters (controlled high impedance and low ground inductance). The PCIeEXT-16 offers power monitoring and overcurrent indication, facilitating rapid troubleshooting and testing.
- Page 5 2.4V on the +3.3 CURR test point indicates that the UUT is drawing 2.4 amperes from the +3.3V supply. 4. Installing the PCIeEXT-16 into a system: PCIeEXT-16 To install the PCIe extender, power down the host computer and install the into a x16 PCIe slot.
