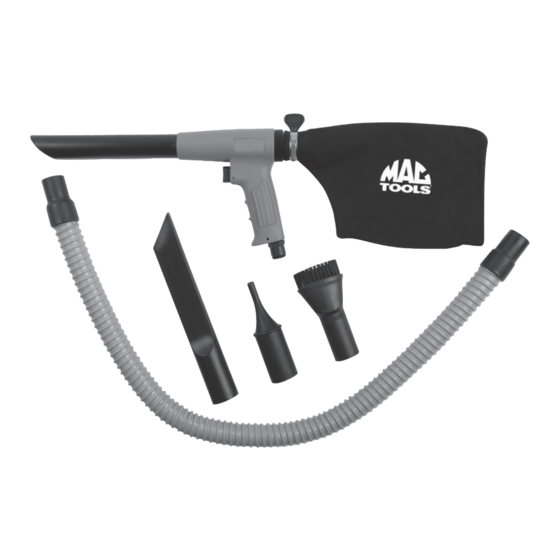

Air vacuum kit
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

®

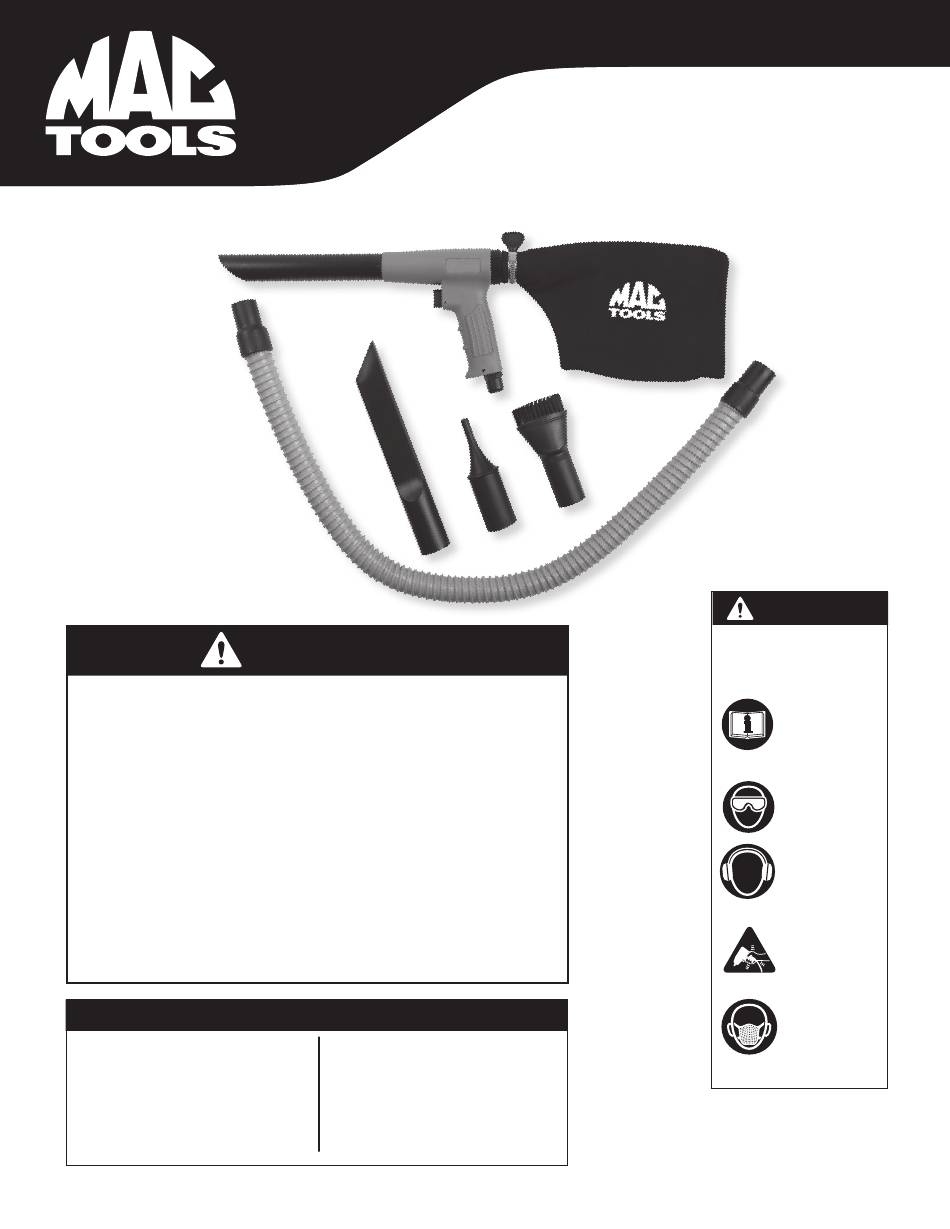

Operating Instructions • Warning Information • Parts Break down
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement
and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to
filter out microscopic particles.
SPECIFICATIONS
Min. Hose Size ........................... 5/16" I.D.
Rec. Air Pressure ..........................90 PSIG
Avg. Air Consumption................. 3.36 CFM
Sound Level ...................................84 dBA
Length ................................................ 5.7"
AV9010
WARNING
Weight............................................1.5 lbs.
Air Inlet Thread NPTF ......................... 1/4"
Vibration (m/S2) ........................... 0.4m/s2
Suction...........................................9cmHg
AIR
Copyright © Professional Tool Products, 2017
1
AV9010
VACUUM
KIT
WARNING
• MAX AIR PRESSURE:
90 PSIG, 6.2 BAR
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
ALWAYS WEAR
BREATHING
APPARATUS
(USERS &
BYSTANDERS)
All rights reserved
060817

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV9010 and is the answer not in the manual?

Questions and answers

Summary of Contents for MAG TOOLS AV9010

  • Page 1 AV9010 VACUUM ® Operating Instructions • Warning Information • Parts Break down WARNING WARNING • MAX AIR PRESSURE: 90 PSIG, 6.2 BAR Some dust created by power sanding, sawing, grinding, drilling, and ALWAYS READ other construction activities contains chemicals known to cause INSTRUCTIONS cancer, birth defects or other reproductive harm.
  • Page 2: Warning Information

    Be aware of excess hose left on walking or work surface. • Keep body working stance balanced and firm. Do not overreach when operating this tool. • Anticipate and be alert for sudden changes in motion during use of any power tool. AV9010 060817...
  • Page 3 AV9010 VACUUM AV9010-1 Gun Assembly AV9010-9 Deflector Set REF. PART REF. PART DESCRIPTION DESCRIPTION QTY. QTY. AV9010-1 Gun Assembly (incl. #2-13) RSAV13 Air Inlet RSVG02 O-Ring (Pack of 3) AV9010-8 Clamping Ring RSVG03 Valve AV9010-7 Dust Bag RSAV04 End Cap...
  • Page 4: Operation

    The air inlet used for connecting air supply has standard 1/4" NPT. Line pressure should be increased to compensate for unusually long air hoses (over 25 feet). Minimum hose diameter should be 5/16" I.D. and fittings should have the same inside dimensions and be tightly secured. AV9010 060817...
  • Page 5: Especificaciones

    AV9010 ASPIRADPORA JUEGO DE ® NEUMÁTICA Instrucciones de Operación • Inforación de Advertencia • Revisión de Refacciones ADVERTENCIA • MAX AIR PRESSURE: 90 psig; 6.2 barg. LEER SIEMPRE LAS INSTRUCCIONES ADVERTENCIA ANTES DE USAR LAS HERRAMIENTAS El polvo creado por la lijación eléctrica, la aserradura, la trituración, NUEMÁTICAS...
  • Page 6 • Resbalarse, tropezarse y/o caerse durante la operación de herramientas neumáticas puede ser una causa mayor de lesión seria o la muerte. Sea consciente de la manguera excedente, dejada por la superficie para caminar o trabajar. AV9010 060817...
  • Page 7 Vacíe el agua de las líneas de aire y del compresor antes de dejar funcionar la herramienta. Limpie el filtro de la entrada de aire semanalmente. El procedimiento de conexión recomendado se AV9010 060817...
  • Page 8: Spécifications

    AV9010 VACUUM ® Instructions de fonctionnement • Avertissement • Pièces AVERTISSEMENT • MAX AIR PRESSURE: 90 lb/po², 6,2 bar LISEZ TOUJOURS LES AVERTISSEMENT INSTRUCTIONS AVANT D’UTILISER Certaines poussières produites par le sablage, le sciage, le meulage, LES OUTILS le perçage et autres activités de construction contiennent des produits MOTORISÉS.
  • Page 9 Vérifiez toujours les boyaux et les raccords et remplacez-les s’ils sont endommagés, fissurés ou lâches. Évitez d’utiliser un outil endommagé ou usé. Évitez d’utiliser des raccords rapides avec cet outil. Pour installer correctement l’outil, consulter les directives. • Une glissade, un trébuchage et/ou une chute lors de l’utilisation AV9010 060817...
  • Page 10: Alimentation En Air

    La procédure de branchement recommandée peut être vue dans la FIG. 1. La source d’alimentation en air est raccordée à une entrée d’air ayant un normalisé NPT de 1/4 po. Il faut augmenter la AV9010 060817...
