www.zephyronline.com
Firenze
ZFI-M90S
Model number:
Serial Number:
FEB09.0201 © Zephyr Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Firenze ZFI-M90S and is the answer not in the manual?

Questions and answers

Summary of Contents for Zephyr Firenze ZFI-M90S

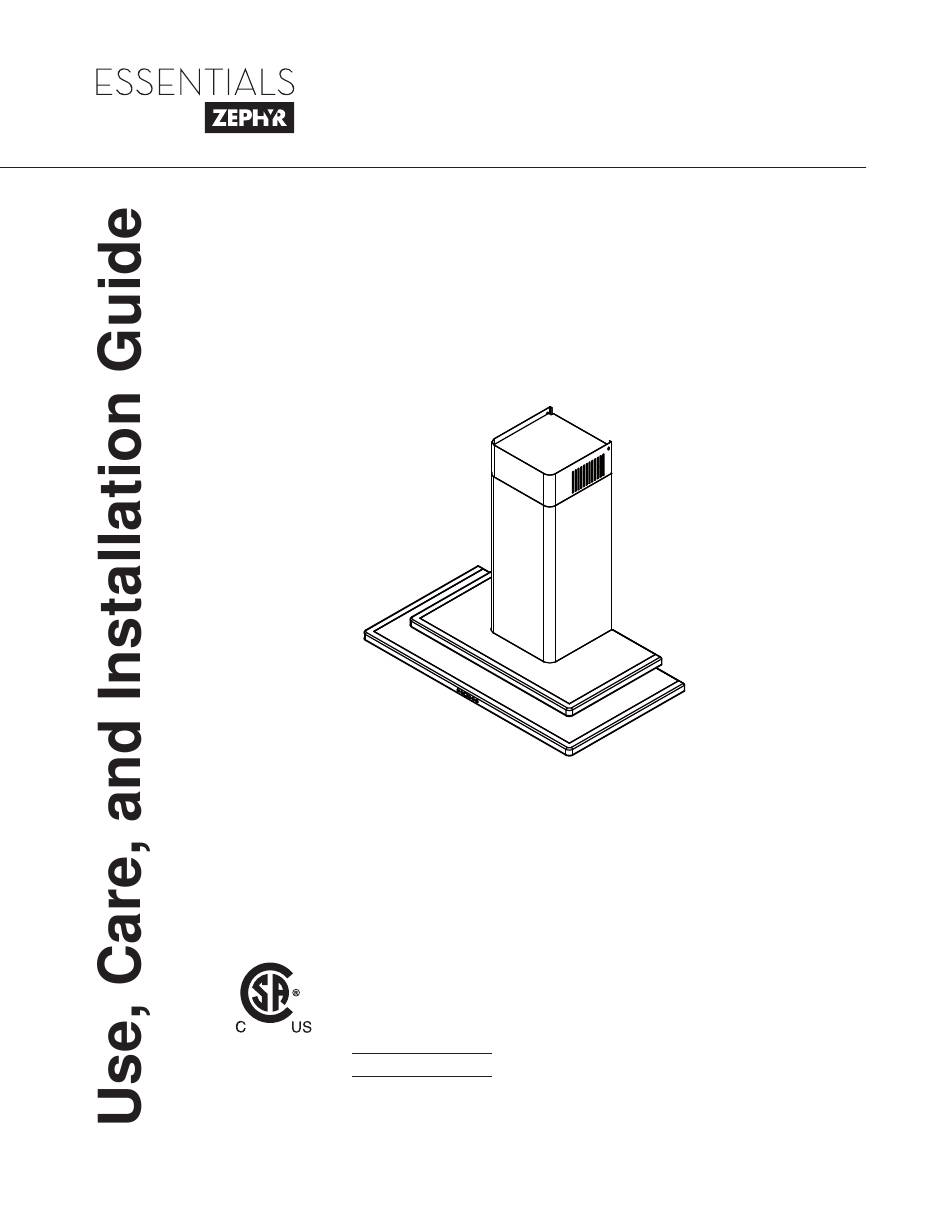

  • Page 1 Firenze ZFI-M90S Model number: Serial Number: FEB09.0201 © Zephyr Corporation...
  • Page 2 www.zephyronline.com...
  • Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Hood Specifi cations ........... Mounting the Range Hood ........Ductless Recirculating ..........FEATURES & CONTROLS Touch Controls ............. Charcoal Filter Replace Reminder ......
  • Page 4 www.zephyronline.com READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
  • Page 5: Operation

    WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of fi re and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. OPERATION Always leave safety grilles and fi...
  • Page 6: Hardware Package Contents

    www.zephyronline.com MODELS: ZFI-M90S PARTS SUPPLIED 1 - Hood with internal blower 2 - Metal mesh filters 1 - Duct cover assembly (top and bottom) 1 - Duct cover wall bracket 2 - 50W GU-10 halogen light bulbs 1 - 6” round backdraft damper (pre-installed) 1 - Hardware package HARDWARE PACKAGE CONTENTS M4 x 1-1/4”...
  • Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8”...
  • Page 8: Damage - Shipment/Installation

    www.zephyronline.com Minimum mount height between range top to hood bottom should be no less than 28”. Maximum mount height should be no higher than Min. ducted 28” 36”. Min. recirc. 32” Max. 46” It is important to install the hood at the proper mounting height.
  • Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certifi...
  • Page 10: Front View

    www.zephyronline.com SIDE VIEW FRONT VIEW min. ducted - 28” min. recirc. - 32” max. - 46” 16 " 16 " 16 " 16 " TOP VIEW 16 " 8 " 4 " 16 " 16 " 16 "...
  • Page 11 CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to hood bottom and mark line A. (28” minimum from range top) . 2. Plum and mark center line. 3.
  • Page 12 www.zephyronline.com Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust from cooking are drawn and fi ltered by a set of optional charcoal fi lters. The air is then purifi ed and re- circulated back within the home.
  • Page 13 Blower On/Off Display (speed level, delay off, filter clean/change) Lights On/Dim/Off Adjust 6 Speed Levels 15 Min Delay Off 1. Blower On/Off By pressing the blower is switched on and off. When switched on, the blower starts up on speed level 3. 2.
  • Page 14 www.zephyronline.com Charcoal Filter Change Reminder (charcoal filter, if installed) When your hood is installed as a recirculating unit, it is fitted with a set of charcoal filters to purify exhaust and fumes from cooking, then re-circulates the air within the home. These charcoal filters are required to be replaced after every 120 hours of use.
  • Page 15 Metal Filter Clean Reminder (metal mesh filter) Whether your hood is installed as an exhaust or purifying unit, a set if metal mesh filters are fitted by the factory, These metal mesh filters are intended to filter out residue from cooking. They need not be replaced on a regular basis but are required to be kept clean.
  • Page 16: Surface Maintenance

    www.zephyronline.com SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent , or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain.
  • Page 17: Replacing Light Bulbs

    Replacement bulbs are available at specialty lighting stores. Purchase type GU-10 50W halogen. For Zephyr part numbers please turn to page 17 of the manual. ameter of the hase type...
  • Page 18 www.zephyronline.com TROUBLESHOOTING PROCEDURES FOR FIRENZE Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
  • Page 19 DESCRIPTION PART# Replacement Parts Light Bulb GU-10 50W (each) Z0B-0020S Metal Mesh Filter (each) 50200011 Optional Accessories Recirculating Kit ZRC-0020 Replacement Charcoal Filter Z0F-C002 Duct Cover Extension Z1C-00FI To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368...
  • Page 20 Zephyr Corporation (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or work- manship as follows: Two Year Limited Warranty for Parts: For two years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts to replace those that failed due to manufacturing defects.
