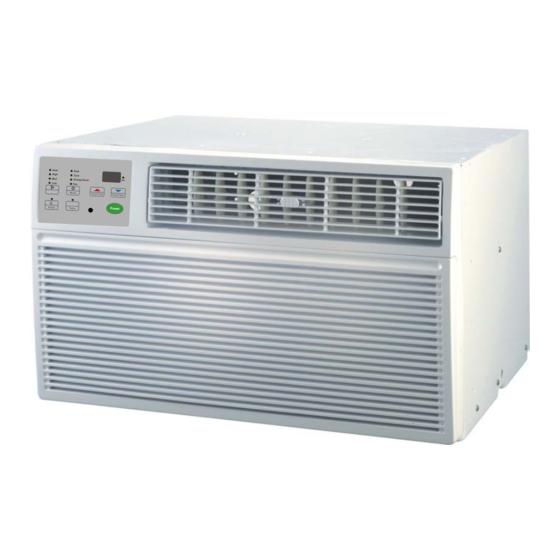

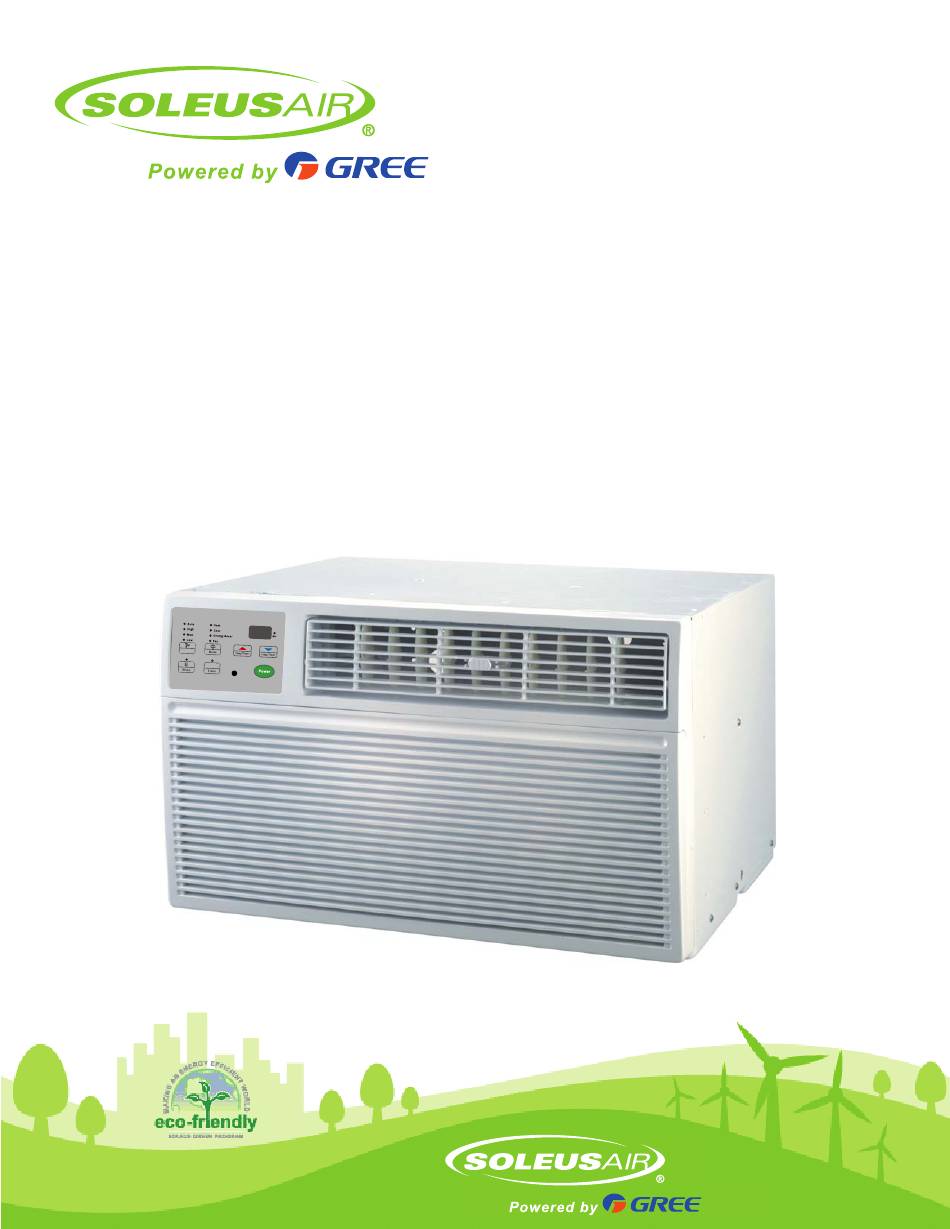

- Page 1 Models GM-TTW-10HC GM-TTW-12HC GM-TTW-14HC Electronic Through the Wall Air Conditioner Operating Instructions...
-
Page 3: Important Safety Instructions
Thank you for choosing a Soleus Air powered by Gree Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new air conditioner. -
Page 4: Electrical Requirements
ELECTRICAL REQUIREMENTS The electrical ratings for your air conditioner are listed on the model and serial number label located on the front left side of the unit (when facing the front). Specific electrical requirements are listed in the chart below. Follow the requirements below for the type of plug on the power supply cord. -
Page 5: For Your Safety
IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this air conditioner FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings. ACCIDENT PREVENTION To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner, follow basic precautions, including the following:... -
Page 6: Specifications
Noise level is measured at a distance of 3.28 ft away from the front of the unit in cooling mode. Power consumption is measured when the fan runs at the highest speed setting. These specifications are for reference only. For actual data, please refer to the rating label on the unit. GM-TTW-10HC GM-TTW-12HC Model... -
Page 7: Operating Your Air Conditioner
OPERATING YOUR AIR CONDITIONER Before you start using your air conditioner, please familiarize yourself with the control panel and remote control the func- tions of each. This air conditioner can be controlled by the control panel (touch pad) or the included remote control. CONTROL PANEL (TOUCH PAD for cool only model) LOWERS TEMPERATURE... -
Page 8: Signal Transmitter
Air Conditioner Features(continued) Note Be sure that there are no obstructions between receiver and remote controller; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. Signal transmitter SLEEP SLEEP button... -
Page 9: Timer Button
Air Conditioner Features(continued) Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status. -
Page 10: Introduction For Special Function
Air Conditioner Features(continued) Guide for operation- General operation 1. After powered on, press ON/OFF button, the unit will start to run.(Note: When it is powered off, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode, or press COOL or HEAT mode to enter into the corresponding operation directly. - Page 11 Air Conditioner Features(continued) TO TURN UNIT ON: YOU WILL SEE DO THIS: PRESS ON/OFF BUTTON TO CHANGE YOU WILL SEE: TEMPERATURE SETTING: DO THIS: PRESS TO RAISE PRESS TO LOWER Note: Tap or hold either up(^) or down(v) button until the desired temperature is seen on display. This temperature will be °...
- Page 12 Air Conditioner Features(continued) TO OPERATE ON FAN ONLY: YOU WILL SEE: LIGHT ON DO THIS: PRESS MODE BUTTON CHOOSE FAN ONLY Note: Use this function only when cooling is not desired, such as for room air circulation. You can choose any fan speed you prefer,EXCEPT AUTO FAN. During this function, the display will show the actual current temperature, not the set temperature as in the cooling mode.
- Page 13 Air Conditioner Features(continued) HEATING FEATURE YOU WILL SEE (on some models) DO THIS: PRESS MODE BUTTON SELECT HEAT Note: This feature can be used with any combination of FAN Speeds, Timer, or Sleep Modes. When in the “Heat” Mode, the fan will run continuously while heat is needed.
-
Page 14: Care And Cleaning
Cabinet Cleaning CARE AND CLEANING To clean the air conditioner cabinet: Clean your air conditioner to keep it looking new and to minimize dust build up. Unplug the air conditioner to prevent shock or a fire hazard. The cabinet and front panel of Air Filter Cleaning the air conditioner may be dusted with an oil- The air filter should be checked at least once... -
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS The air conditioner is unplugged The Air Conditioner will not start Make sure the air conditioner is plug is pushed completely into the outlet Check the house fuse/circuit The fuse is blown/circuit breaker is breaker box and replace the fuse tripped. - Page 16 TROUBLESHOOTING (CONT.) PROBLEM POSSIBLE CAUSES SOLUTIONS Hot and Humid weather. Water is dripping outside This is normal Water is dripping inside the room The air conditioner is not correctly For proper water drainage, make tilted outside. sure the air conditioner is slightly tilted downward from the front of the unit to the rear.
-
Page 17: Warranty
Warranty Soleus International Inc. warrants the accompanying Soleus Air Air Conditioner to be free of defects in mate- rial and workmanship for the applications specified in its operation instruction for the period of parts specified below. 5 YEARS FOR COMPRESSOR 1 YEAR FOR OTHER COMPONENTS This warranty shall not apply to broken or marred cabinets, accessories, knobs, filters or routine maintenance. - Page 20 66129903750...
