HPM XLP940WEWE Instruction Manual

1 Specifications
Supply voltage 100-240V a.c.
Max power 1.3W
Stand-by power 0.5W
Light source LED
Terminal capacity 1 x 2.5mm² or 2 x 1.5mm²
IP rating IP41
Storage 0°C to +35°C
temperature
Operating 0°C to +35°C
temperature
Resistant to the Hexane, methylated spirits, soapy
following agents water, diluted ammonia, diluted
pure bleach (10%), glass cleaning
substance, pre-impregnated wipes,
diluted hydrogen peroxide (35%)
Not resistant Acetone, tar remover,
to the following trichloroethylene
agents
2 Operation
If the ambient light level is below 2.5 lux and movement is detected within the field of view, the indicator light
turns on for 30 seconds and a short sound signal is emitted. The sound feature can be enabled or disabled
using the switch located underneath the front cover of the mechanism.

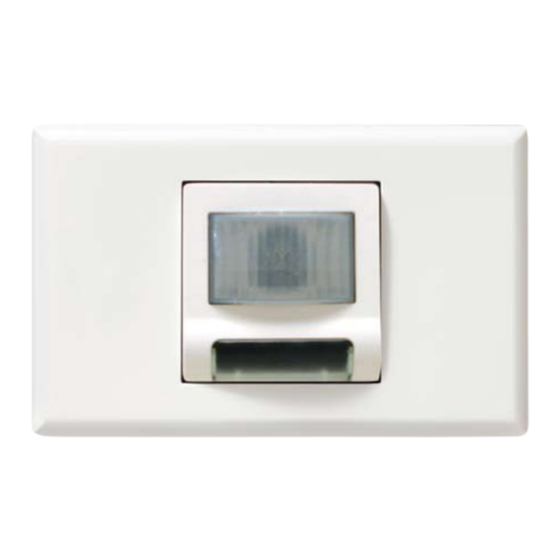

Illuminated Obstacle Indicator
Instruction Manual
A graphical representation of how the unit operates is shown below.
Cat XLP940WEWE
Movement detector
LED lighting
